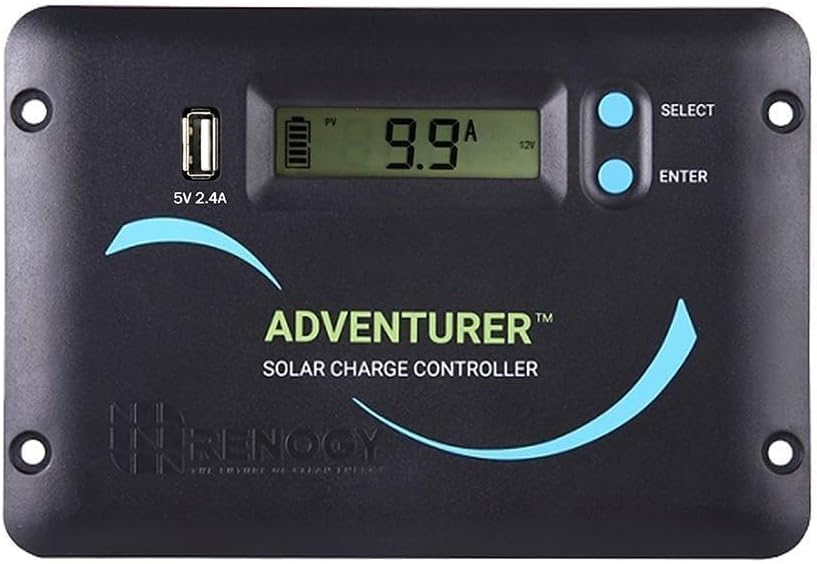

Renogy Adventurer-Li 30A PWM Solar Controller - Flush Mount

In this review of the Renogy Adventurer-Li 30A solar controller, the bottom line is simple: it is a compact, RV-friendly charge controller for those who want a tidy, reliable solar charging solution. The Adventurer-Li is best for owners of campers, vans, and small off-grid systems who value a flush mount aesthetic, automatic 12V/24V switching and smart PWM charging that supports lithium and lead-acid chemistries. The integrated LCD and Bluetooth monitoring make day-to-day use straightforward while the negative-ground design reduces wiring worries during installation.

Key Features

• Smart 4-Stage PWM: Bulk, Boost, Float and Equalization phases help extend battery life by applying appropriate charging stages for lithium, AGM, gel, and flooded batteries.
• 12V/24V Auto Detection: The controller automatically detects system voltage so it can be used in either common small RV battery configurations without manual switching.
• Flush Mount Design: A low-profile flush mount installation provides a clean look for RV and camper walls while a surface mount attachment is included for alternate installs.
• Bluetooth Monitoring: Real-time data is available on the LCD or via the DC Home app with a compatible BT-1 module for convenient monitoring and diagnostics.
• Negative Ground Safety: Standard negative-ground compatibility ensures safe integration into most RV electrical systems and avoids risky reverse polarity situations.
• Temperature Compensation and Protection: Automatic temperature compensation from -4F to 140F plus overcharge and short-circuit safeguards protect batteries in varied climates.

Who It's For

The Adventurer-Li is ideal for RVers, campervan builders, and owners of small off-grid cabins who need a neat, reliable 30A controller that handles both lithium and lead-acid battery types. The flush mount faceplate and included surface mount option make it especially attractive for installations where appearance matters.

It is not aimed at large solar arrays or heavy-duty off-grid systems that need MPPT efficiency gains or higher amperage. Users who require advanced remote telemetry beyond Bluetooth app readouts or those with systems larger than 30A should consider higher-capacity or MPPT controllers instead.

Pros & Cons

Pros

• Supports both 12V and 24V systems with smart 4-stage PWM charging for extended battery life.
• Flush mount design and included surface mount kit offer flexible, clean installation on RV walls.
• Built-in LCD plus optional Bluetooth monitoring provides easy real-time status and simple diagnostics.
• Wide operating temperature range with automatic compensation keeps batteries safe in extreme climates.

Cons

• PWM topology is less efficient than MPPT in lower-irradiance or larger-panel installations.
• 30A rating limits use to small systems; not suitable for larger battery banks or arrays requiring higher current.

Specifications

Nominal Voltage	12 VDC / 24 VDC
Rated Charge Current	30A
Self-consumption	13mA
Terminals	Up to 8 AWG
USB Output	5V, 2.4A Max
Operating Temperature	-4F to 140F (auto temp compensation)

Our Verdict

The Renogy Adventurer-Li 30A is a practical, good-value choice for RV and small off-grid users who prioritize a tidy flush mount installation and reliable multi-chemistry PWM charging. It excels where ease of use, negative-ground safety and built-in monitoring matter, but buyers with larger arrays or who want maximum panel-to-battery efficiency should look at MPPT alternatives.

Frequently Asked Questions

Can this controller charge lithium batteries?
Yes, the Adventurer-Li supports lithium chemistry and includes smart charging stages to safely revive over-discharged lithium batteries when needed.

Does it work with both 12V and 24V systems?
Yes, it automatically detects and switches between 12V and 24V systems for simple installation.

Is the unit suitable for RV wall mounting?
Yes, it is designed for flush mount installation on RV and camper walls and includes a surface mount attachment if flush mounting is not desired.
