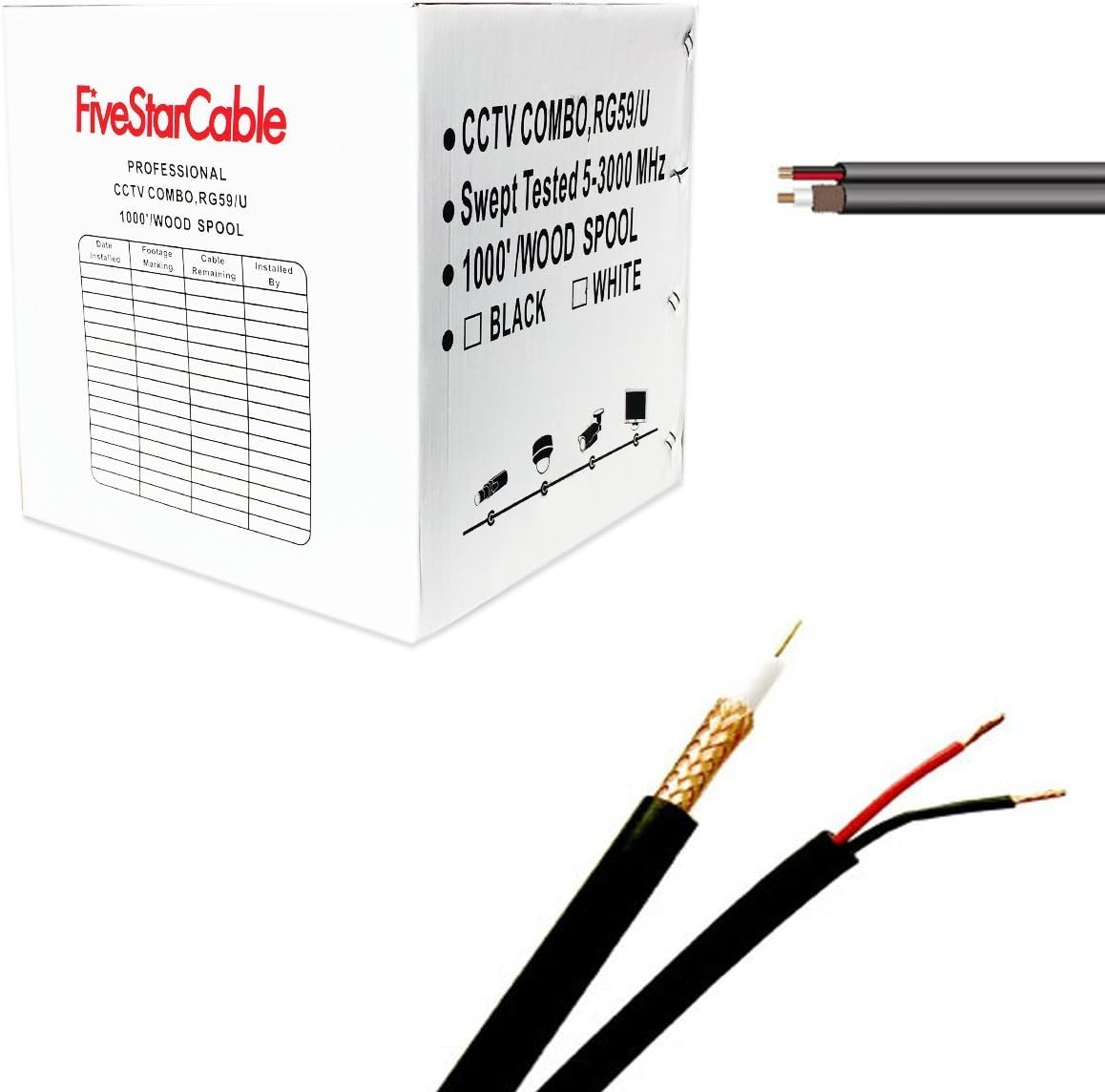

RG59 1000 ft Siamese Coaxial CCTV Cable - All-in-One Run

Our review of the RG59 1000 ft Siamese Coaxial CCTV Cable finds it best suited for installers and homeowners who need a single, long run that carries both video and power. The biggest reason to buy is the convenience of a combined 20 AWG RG59 video conductor and an 18/2 stranded power pair inside one durable black jacket, which simplifies routing and reduces clutter on long runs compared with pulling separate cables. It is a practical, no-nonsense option for HD and analog surveillance installs where a reliable, easy-to-measure cable is wanted.

Key Features

• All-in-one design: Combines RG59 video and 18/2 power conductors in a single jacket so installers run one cable instead of two, saving time on long installs.
• 95% braid shield: The high-coverage braided shield reduces interference and helps maintain signal clarity for HD, 1080P, 5MP and 4K cameras.
• CCAM center conductor: Copper-clad aluminum and magnesium core provides a balance of conductivity and lower weight for consistent signal transmission over distance.
• Stranded power conductors: The 18AWG stranded copper power pair delivers flexible, reliable power to cameras and is easier to terminate than solid wire.
• Installation-friendly packaging: Foot-marked cable and a tangle-free spool box make measurement and payout straightforward on the job.
• Standard connector compatibility: Works with common BNC connectors and standard DVR/monitor inputs for quick hookup.

Who It's For

This cable is ideal for professional security installers and DIY homeowners who need a single-run solution for powering and transmitting video to a DVR or monitor. It suits residential and small business systems that use HD or analog cameras and where a neat, single-cable pathway is preferred.

It is less suitable for installations that require pure solid copper center conductors or for very long runs where installers want ultra-low-loss coax designed specifically for maximum distance; in those cases a different coax or separate runs might be preferable.

Pros & Cons

Pros

• Combines video and power in one jacket for faster, neater installs.
• 95% braid shielding improves picture stability and reduces interference.
• Foot-marked spool and tangle-free box speed up deployment and measurement.
• Good value for long runs used in residential and small commercial systems.

Cons

• Center conductor is CCAM rather than solid copper, which some installers note as a copper-content concern.
• Occasional reports of internal cracking under extreme flexing mean care is needed during tight bends.

Specifications

Length	1000 ft
Video conductor	20 AWG RG59 (CCAM center)
Power conductors	18/2 AWG stranded copper
Shielding	95% braid shield
Jacket color	Black
Packaging	Foot-marked, tangle-free spool box

Our Verdict

The RG59 1000 ft Siamese cable is a sensible, cost-effective choice for most residential and light-commercial CCTV installs that need a single run to carry both video and power. Its strong braid shielding and installer-friendly spool make setup straightforward and the combined conductors reduce cable clutter. Installers who need solid copper centers or extreme-run performance should compare alternatives, but for routine HD surveillance this cable delivers good value and dependable results.

Frequently Asked Questions

Can this cable power cameras and transmit HD video over the same run?
Yes. The 20 AWG RG59 video conductor transmits video while the 18/2 stranded pair carries power, suitable for HD, 1080P, 5MP and 4K camera setups within normal run distances.

Is the center conductor solid copper?
The center conductor is copper-clad aluminum and magnesium (CCAM), which balances conductivity and weight but is not solid copper.

Will it work with standard BNC connectors?
Yes. The cable is compatible with standard BNC terminations and typical DVR and monitor inputs for CCTV systems.
