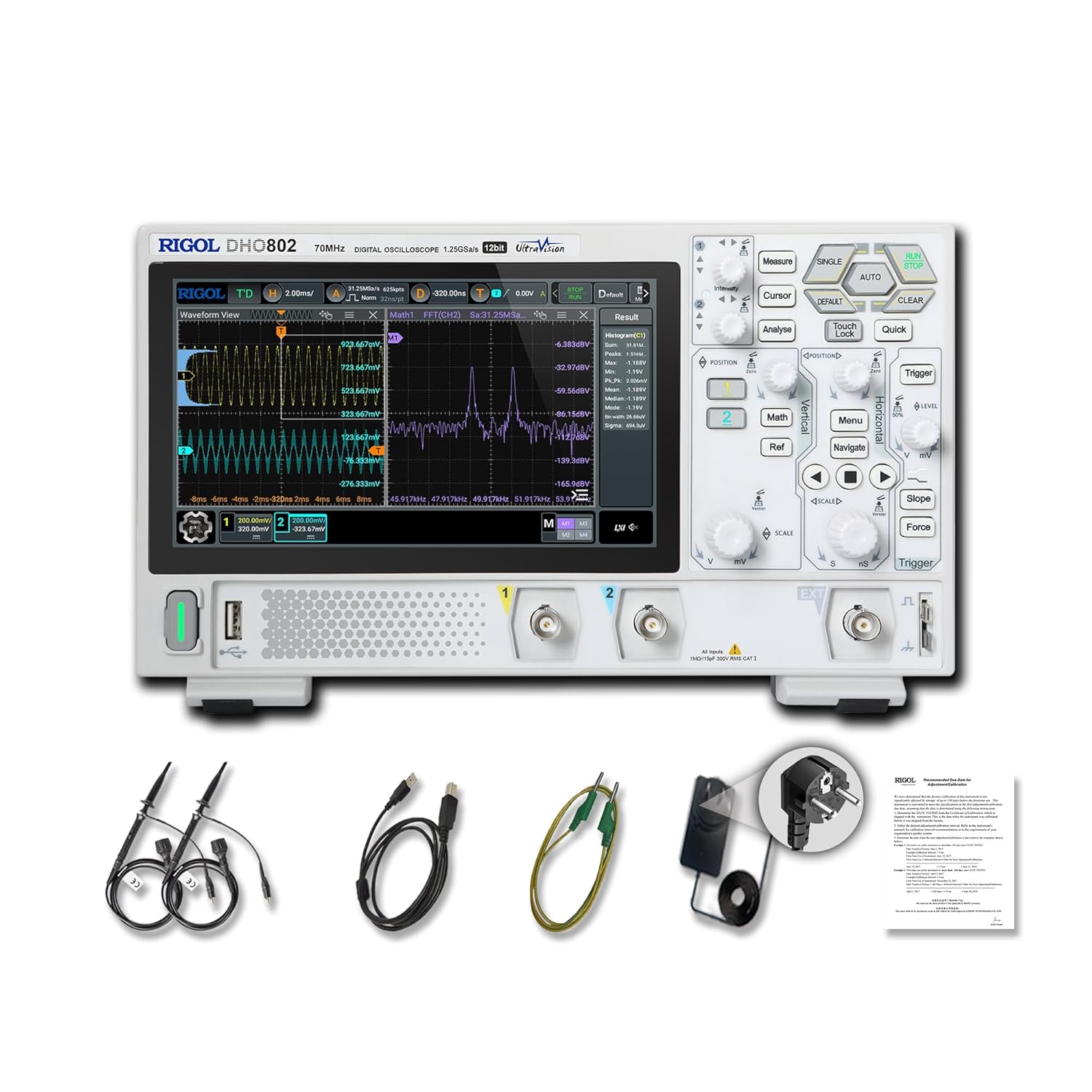

RIGOL Digital Oscilloscope DHO802 70MHz - High Resolution

In this review the RIGOL DHO802 is considered for engineers, hobbyists, and lab technicians who need a compact mixed-signal oscilloscope with a focus on signal clarity. The single biggest reason to buy is its 12-bit hardware high resolution, which combined with ultra low background noise makes small signals easier to identify than on many entry-level scopes. The review examines real-time sampling, capture rate, and the touchscreen interface to judge whether the package fits bench and field use.

Key Features

• 12-bit vertical resolution: Provides higher amplitude resolution so small signal details and low-level noise characteristics are easier to observe and measure.
• Up to 70MHz bandwidth: Covers many common analog and mixed-signal tasks while keeping the unit compact for benchtop or portable use.
• 1.25 GSa/s real-time sample rate: Offers sufficient time-domain fidelity for most educational, repair, and light development work.
• Ultra Aqua waveform capture: Captures up to 1,000,000 wfms/s so infrequent glitches and anomalies are far less likely to be missed.
• 7 in touch display: A 1024 x 600 high-definition touchscreen with a new Flex knob makes navigation and measurement setup faster than non-touch designs.
• Connectivity and expandability: USB Device & Host, LAN, and HDMI ports come standard for data transfer, remote control, and external display options.

Who It's For

The DHO802 is best for electronics students, bench technicians, and field engineers who need clear amplitude detail and a responsive interface without investing in high-end lab gear. Its balance of high resolution and capture rate makes it ideal for debugging low-level analog signals, transient capture, and routine waveform analysis.

Users who need very wide analog bandwidth beyond 70MHz, multi-channel high-speed acquisition, or specialized mixed-signal analyzers should look at higher-end instruments. Also, those requiring extensive protocol decoding or integrated logic analysis beyond two analog channels may need additional modules or a different model.

Pros & Cons

Pros

• Excellent amplitude detail from the 12-bit ADC for resolving small signals.
• High waveform capture rate in Ultra Aqua mode reduces missed glitches during testing.
• Intuitive 7 in touchscreen and Flex knob speed up common measurement tasks.
• Standard USB, LAN, and HDMI make data export and remote control straightforward.

Cons

• 70MHz bandwidth is limiting for higher frequency RF or fast digital work.
• Some users report mixed feedback on absolute accuracy despite strong feature set.

Specifications

Brand	RIGOL
Analog Bandwidth	Up to 70 MHz
Vertical Resolution	12-bit hardware
Real-time Sample Rate	Up to 1.25 GSa/s
Waveform Capture Rate	Up to 1,000,000 wfms/s (Ultra Aqua)
Display	7 in 1024 x 600 touchscreen
Channels	2 analog channels; external trigger port on dual models

Our Verdict

The RIGOL DHO802 is a strong value for users who prioritize signal purity and detailed amplitude resolution in a compact oscilloscope. It combines 12-bit resolution, deep memory and a high capture rate with convenient connectivity, making it a practical choice for education, repair, and general lab work where 70MHz bandwidth suffices.

Frequently Asked Questions

Does it capture rare glitches reliably?
The Ultra Aqua mode supports up to 1,000,000 wfms/s which significantly improves the chance of catching intermittent anomalies.

Can it connect to a PC or external monitor?
Yes, the scope includes USB Device & Host, LAN and HDMI ports for data export, remote control, and external display output.

Is the touchscreen easy to use?
Most users find the 7 in touchscreen combined with the new Flex knob intuitive for quick navigation and measurement setup.
