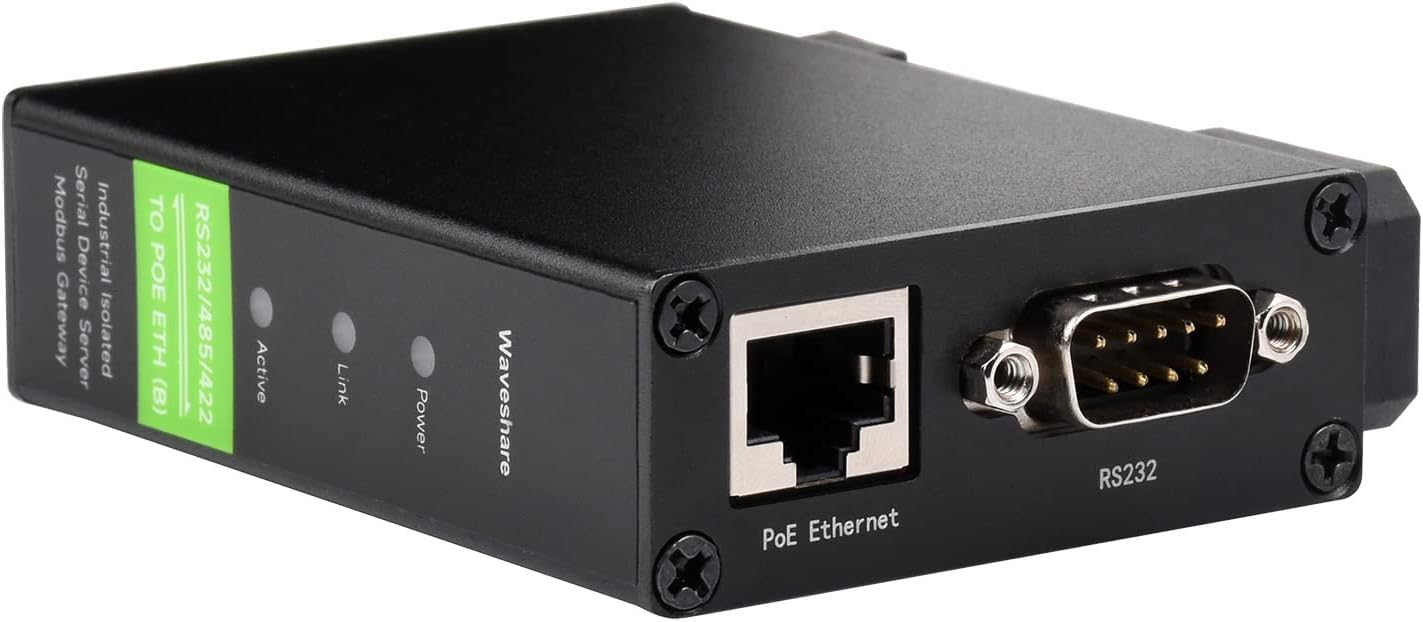

RS232/485/422 to RJ45 Ethernet Module - PoE Industrial Gateway

In this review the Waveshare RS232/485/422 to RJ45 Ethernet Module is assessed as a compact industrial serial-to-Ethernet gateway aimed at engineers and integrators who need reliable protocol conversion and flexible network options. The biggest reason to consider it is its combination of multiport serial support, PoE power option and built-in protocol conversions like Modbus and MQTT, which together make it a practical choice for upgrading legacy instruments to IP networks.

Key Features

• Multi-serial support: Provides RS232, RS485 and RS422 interfaces so a single module can connect to a wide range of industrial instruments without extra adaptors.
• Ethernet with PoE: Includes an RJ45 Ethernet port that supports IEEE 802.3af PoE so the device can be powered over the network for cleaner installations.
• Protocol gateways: Functions as a serial server, Modbus gateway and MQTT gateway enabling direct conversion between serial protocols, Modbus and JSON for IoT integration.
• Flexible power inputs: Accepts power via DC jack (5.5mm outer, 2.1mm inner) or terminal block across a wide DC 6-36V range for installation versatility.
• Mounting and form factor: Compact case with rail-mount support that fits in control cabinets and saves panel space during deployments.
• Network features: Supports TCP server/client, UDP and multicast, plus NTP for time synchronization and user-defined heartbeat packets for robust cloud communication.

Who It's For

This module is best for system integrators, automation engineers and field technicians who need to bring serial instruments online for data acquisition, remote monitoring or IoT projects. It suits installations where PoE is desired to reduce wiring or when multiple protocol conversions (Modbus, MQTT, JSON) simplify upstream systems.

It is less appropriate for hobbyists who expect extensive step-by-step documentation; customers report mixed experiences with paperwork and there is a learning curve when configuring advanced gateway functions. If plug-and-play consumer simplicity is required, a product with dedicated hands-on support may be a better choice.

Pros & Cons

Pros

• Wide serial interface support reduces the need for multiple adapters in mixed-device environments.
• PoE capability and wide DC input options provide flexible power choices for industrial sites.
• Integrated Modbus, MQTT and JSON conversion streamlines IoT and cloud integration workflows.
• Compact, rail-mountable case makes cabinet mounting straightforward and space efficient.

Cons

• Documentation quality receives mixed feedback, which can slow initial setup for less experienced users.
• Advanced configuration requires familiarity with network and serial protocol concepts to get the most value.

Specifications

Interfaces	RS232, RS485, RS422, RJ45 Ethernet
Power input	PoE (IEEE 802.3af), DC jack (5.5mm OD, 2.1mm ID), terminal block
DC input range	DC 6-36V
Mounting	Rail-mount support
Network modes	TCP server/client, UDP, UDP multicast
Gateway functions	Serial server, Modbus gateway, MQTT gateway, RS485 to JSON
Time sync	Supports NTP for network time

Our Verdict

The Waveshare RS232/485/422 to RJ45 Ethernet Module is a cost-effective industrial gateway for bringing legacy serial devices into modern networks. It delivers useful protocol conversions, PoE support and flexible power options, making it a solid choice for automation projects where reliable serial-to-IP conversion is needed; buyers should be prepared to spend time on configuration due to limited documentation.

Frequently Asked Questions

Does this module support PoE?
Yes. It supports PoE power delivery compliant with IEEE 802.3af so the device can be powered through the Ethernet link.

Can it convert Modbus to MQTT or JSON?
Yes. The module includes Modbus gateway and MQTT/JSON conversion functions to integrate serial Modbus devices with cloud services.

What power options are available?
Power can be supplied via PoE, the DC jack (5.5mm outer, 2.1mm inner) or a screw terminal block, with a DC input range of 6 to 36V.
