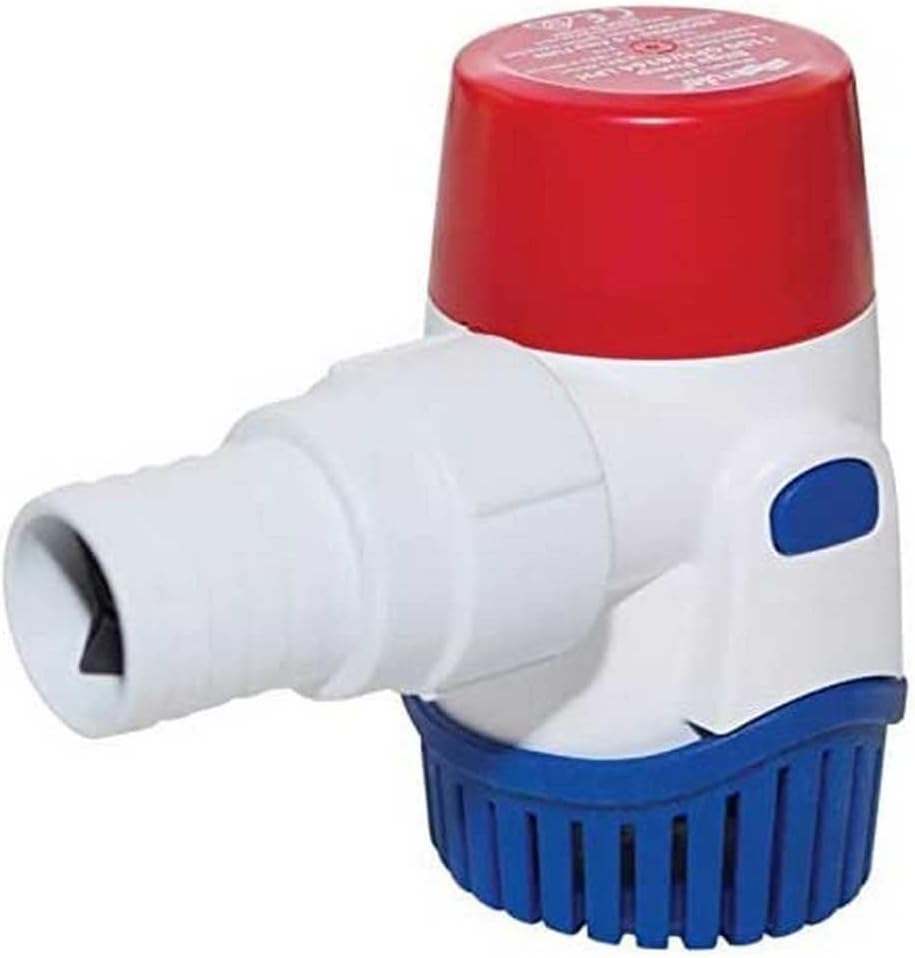

Rule 25 DA-24 Marine Bilge Pump 500 GPH - Reliable 24V Flow

In this review of the Rule 25 DA-24 Marine Bilge Pump the bottom line is simple: it is a compact, reliable 24V pump for boat owners who need steady, efficient bilge clearing without automatic switching. The reviewer found the pump best for small to mid-sized craft and personal watercraft where consistent flow and low amp draw matter, and highlights the optimized impeller and built-in thermal cut-off as the single biggest reason to buy for those who value durability and safe operation under continuous use.

Key Features

• High Flow: The optimized impeller delivers greater flow for the same amperage so bilges are cleared faster without drawing extra power.
• Built-In Thermal Cut-Off: The TCO adds protection by shutting the pump down in overheating conditions, helping protect the pump and vessel wiring.
• Back Flow Prevention: The check-valve design reduces water left in the bilge, cutting odor and keeping the bilge cleaner between pump cycles.
• Hidden Air Vents: Vents in the pump body help prevent air locking in awkward plumbing runs, improving reliability in real installations.
• Threaded Discharge: The threaded discharge port makes installation and maintenance easier with standard hose fittings.

Who It's For

The Rule 25 DA-24 is aimed at owners of small to medium boats, tow sports craft, and jetskis that run on a 24V system or where a 24V pump is preferred for lower current draw. It suits anyone who wants a robust, well-engineered non-automatic pump with an emphasis on efficient flow and long service life.

Those who need an automatic float switch or alarm integration should look elsewhere, and people with very large vessels requiring flows far above 500 gph will need a larger model. This pump excels where compact size, low amp draw, and dependable manual operation are the priorities.

Pros & Cons

Pros

• Efficient 500 gph flow with a low 0.8 amp draw makes it energy efficient for 24V systems.
• Durable design with a built-in thermal cut-off increases safety and longevity under demanding use.
• Installation-friendly features like threaded discharge and hidden air vents reduce fitment headaches.

Cons

• Non-automatic operation means extra effort or an external switch is needed for unattended bilge control.
• Flow reports are mixed among users; while generally fast, some applications may perceive slower clearing on very large or obstructed bilges.

Specifications

Flow Rate	500 gph / 1893 lph
Voltage	24 Vdc
Amp Draw	0.8 amp
Fuse Size	3 amp
Port Type	3/4' (19mm) hose barb
Dimensions (H x W)	98 mm x 73 mm (3-7/8 in x 2-7/8 in)

Our Verdict

The Rule 25 DA-24 is a practical choice for boaters who need a compact, efficient 24V bilge pump that prioritizes reliability and low power use. With sensible installation features and thermal protection, it represents good value for owners of small to mid-sized craft who can manage manual switching or already have an automated system in place.

Frequently Asked Questions

Is this pump automatic?
No, the DA-24 is non-automatic and requires a manual switch or external automatic controller for unattended operation.

What size hose fits the discharge?
The pump uses a 3/4' (19mm) hose barb port for standard marine bilge hose connections.

How much power does it draw?
At 24V the pump draws about 0.8 amp and the recommended fuse size is 3 amp.
