SBR16 1500mm Linear Rail Guide with 4 SBR16UU Blocks - DIY CNC Motion

In this review of the SBR16 1500mm linear rail guide kit, the bottom line is simple: it is a practical, value-oriented option for DIY CNC builders who need long, supported rails and multiple bearing blocks. The set ships complete with two 1500mm carbon steel rails, four SBR16UU slider blocks and the fasteners and tools needed for basic installation, so a hobbyist or small workshop can add an X or Y axis without sourcing extra parts. The biggest reason to buy is the complete kit format, which saves time when assembling linear motion stages for routers, mills, or laser tables.

Key Features

• Complete package: Includes two 1500mm rails, four SBR16UU bearing blocks, screws, a 4mm wrench and an M6 locking handle so builders can begin assembly immediately without extra purchases.
• Durable materials: Rails are made of high-quality carbon steel and slider blocks use bearing steel with an aluminum alloy housing for tougher wear resistance under regular workshop use.
• Four-point contact design: The bearing blocks use a four-point contact profile to distribute loads evenly in all directions, helpful for heavier cutting or milling tasks.
• Pre-drilled support rails: Aluminum alloy supports come with pre-drilled holes which simplify alignment and mounting during installation.
• Adjustable tightness: The included M6 locking handle allows on-the-fly adjustment of slider tightness to tune slide feel or reduce play after installation.
• Wide application range: Suitable for DIY CNC routers, X-Y tables, laser machines and other linear motion setups that require supported rails and multiple slider blocks.

Who It's For

This kit is aimed at hobbyists, makers and small machine shops building or repairing X, Y or Z axes on DIY CNC routers, laser cutters and similar equipment who want a ready-to-install rail set. The included hardware and blocks mean less time sourcing matching components and more time assembling motion stages.

Those requiring ultra-precision industrial components or specialized sealed rails for very high-speed, high-accuracy automation should look elsewhere; this set is best for practical workshop use and retrofit projects rather than laboratory-grade linear guides.

Pros & Cons

Pros

• Good value for a full kit that includes rails, four bearing blocks and mounting hardware.
• Robust construction with carbon steel rails and bearing steel slider internals for durability.
• Four-point contact blocks provide even load distribution and some self-aligning ability during assembly.
• Easy to install elements like pre-drilled supports and an M6 locking handle simplify setup.

Cons

• Smoothness feedback is mixed; some users report the sliders need greasing and occasional adjustment to eliminate noise or stickiness.
• Not a sealed, precision industrial system, so it may require periodic maintenance under heavy use.

Specifications

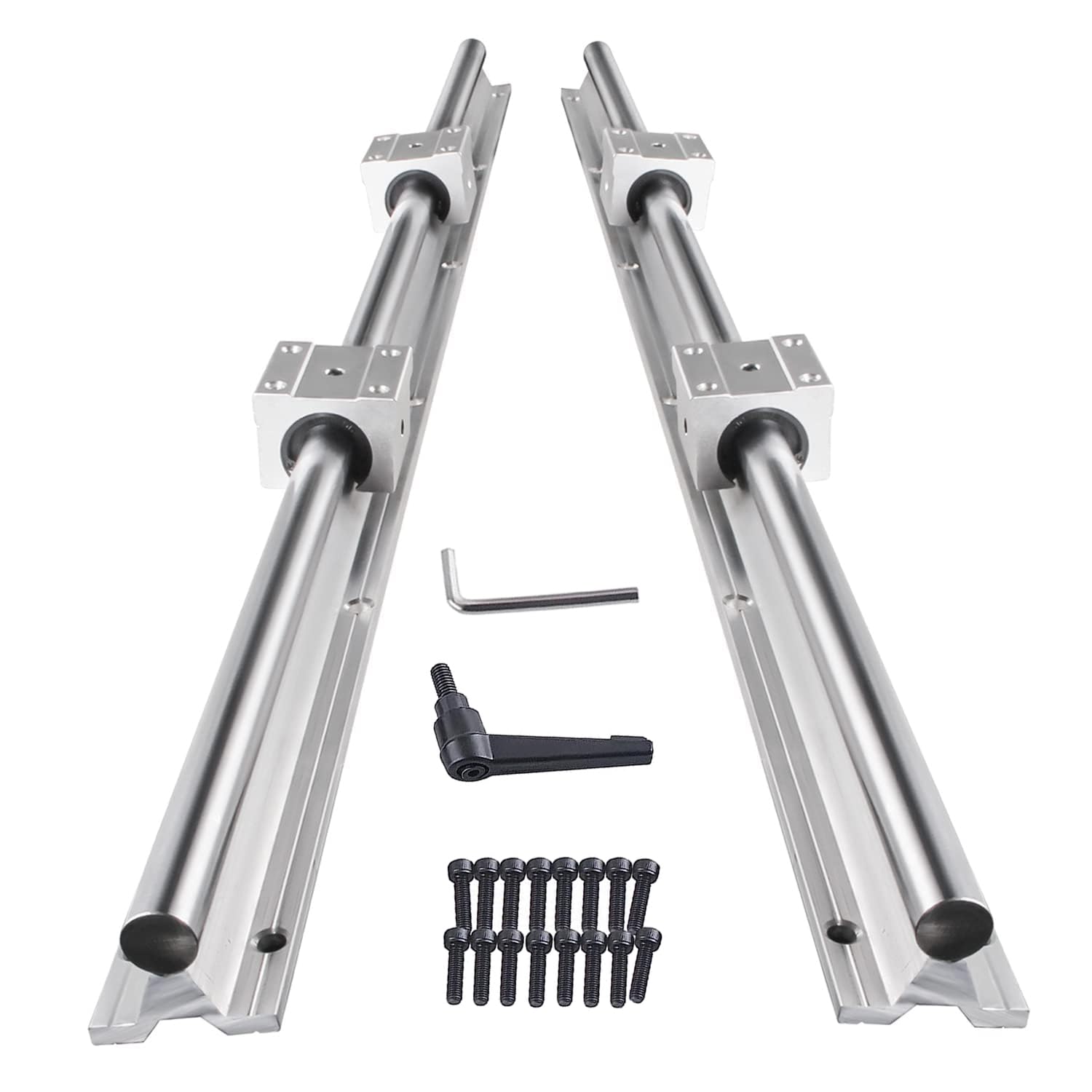

Package contents	2x SBR16-1500mm rails, 4x SBR16UU blocks, 1x 4mm wrench, 1x M6x12mm locking handle, 16x M5x20mm screws
Rail material	High-quality carbon steel
Slider block construction	Bearing steel balls with aluminum alloy housing
Block design	Four-point contact with self-aligning capability
Typical applications	DIY CNC routers, laser machines, X-Y tables, mills and automatic cutting machines
Mounting	Aluminum alloy support with pre-drilled holes

Our Verdict

The SBR16 1500mm linear rail kit is a sensible, cost-effective choice for makers assembling or upgrading CNC axes because it bundles the most-used sizes and blocks into one package and uses durable materials. It may require light lubrication and occasional adjustment to achieve the smoothest operation, but for the price and convenience it delivers strong practical value to hobby shops and small workshops.

Frequently Asked Questions

Does the set include everything needed to mount the rails?
Yes, the package includes the rails, four bearing blocks, M5 screws, a 4mm wrench and an M6 locking handle; additional mounting plates or machine-specific brackets may still be required.

Are these rails suitable for heavy loads?
The four-point contact block design helps distribute loads evenly and offers good load handling for DIY and light industrial tasks, but extreme industrial loads may need heavier duty guides.

Will the sliders be smooth out of the box?
Many users find the rail quality high, though some report the sliders benefit from greasing and occasional adjustment to remove noise or stickiness.
