SBR16 500mm Linear Rail Guide SBR16 Fully Supported Linear Slide Rail

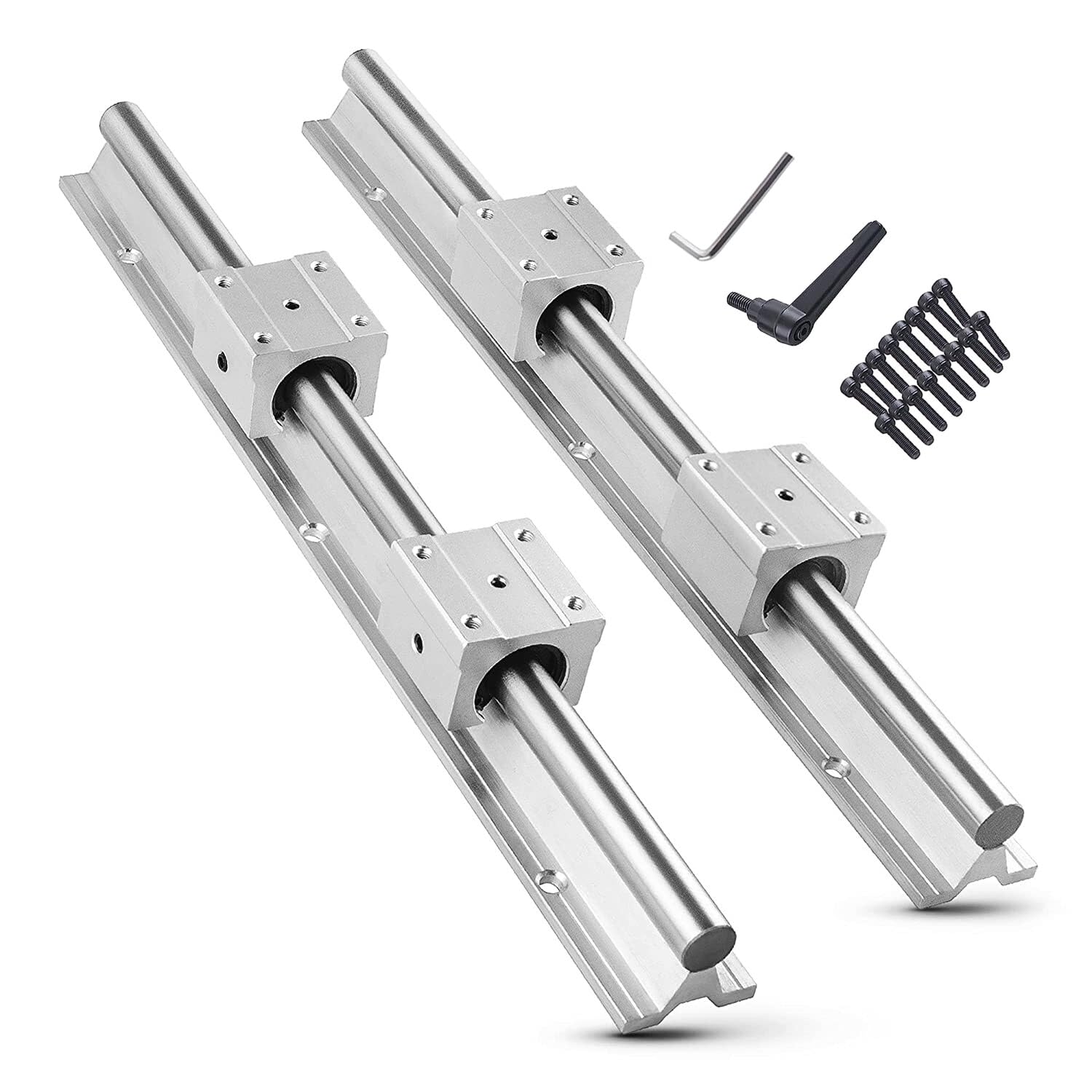

In this review the SBR16 500mm Linear Rail Guide is evaluated as a budget-friendly, fully supported linear motion kit for hobbyists and small workshop projects. The set ships with two 500mm SBR16 rails and four SBR16UU bearing blocks, plus basic hardware, and its single biggest reason to buy is the combination of robust materials and a four-point contact slider design that delivers reliable load distribution for DIY CNC and X-Y table builds.

Key Features

• Complete kit: Two 500mm rails, four SBR16UU bearing blocks and mounting hardware make it ready for common DIY linear motion assemblies.
• Durable construction: Carbon steel rails and bearing-steel slider internals with aluminum housings improve longevity under workshop conditions.
• Four-point contact design: The slider block distributes loads evenly in all directions and offers a self-aligning function that helps absorb mounting surface errors.
• Pre-drilled mounting supports: Aluminum alloy supports with pre-drilled holes simplify installation and alignment for most small machines.
• Adjustable tightness: Included M6 locking handle and M5 screws let the builder fine-tune slider tightness for their specific application.
• Low friction ball bearing: Multiple steel balls inside the slider reduce friction for smoother travel when properly maintained.

Who It's For

The SBR16 500mm set is aimed at hobbyists and small shop owners building DIY CNC routers, laser tables, X-Y stages or light machine tools who need an affordable, fully supported linear guide solution with decent precision. Designers who value straightforward installation and the ability to tolerate some assembly imprecision will appreciate the self-aligning feature.

Those who require ultra-quiet, ultra-smooth industrial motion or sealed, lifetime-lubricated bearings should look elsewhere. Also, users expecting plug-and-play silence may need to budget time for greasing and break-in, since some customers report mixed smoothness and occasional noise before lubrication and adjustment.

Pros & Cons

Pros

• Strong materials and solid construction that resist damage in workshop use.
• Complete hardware package reduces the need to source extra parts for mounting.
• The four-point contact slider gives stable, high-precision support under load.
• Adjustable locking handle allows quick tension tuning of slider blocks.

Cons

• Smoothness is mixed out of the box; some units need greasing or adjustment to eliminate noise and occasional sticking.
• Not a sealed industrial bearing solution, so periodic maintenance is required for long-term quiet operation.

Specifications

Product	SBR16 500mm Linear Rail Set
Rail length	500mm
Rail type	SBR16 fully supported
Bearing blocks	4 x SBR16UU
Materials	Carbon steel rails; bearing steel balls; aluminum alloy housings
Included hardware	1x 4mm wrench, 1x M6x12mm locking handle, 16x M5x20mm screws

Our Verdict

The SBR16 500mm Linear Rail Guide is a practical, cost-effective choice for DIY CNC builders and hobbyists who need sturdy, fully supported linear motion at a modest price. With a robust four-point contact design and complete mounting hardware it delivers good value, though buyers should expect to perform initial lubrication and occasional adjustments to achieve the quietest, smoothest operation.

Frequently Asked Questions

Does the kit include mounting screws and tools?
Yes, it includes 16 M5x20mm screws, an M6x12mm locking handle and a 4mm wrench for basic installation.

Are the rails ready to use out of the box?
They are usable out of the box but some units benefit from greasing and fine adjustment to improve smoothness and reduce noise.

What applications suit this guide?
It is suited to DIY CNC routers, X-Y tables, laser machines and similar light to medium duty linear motion systems.
