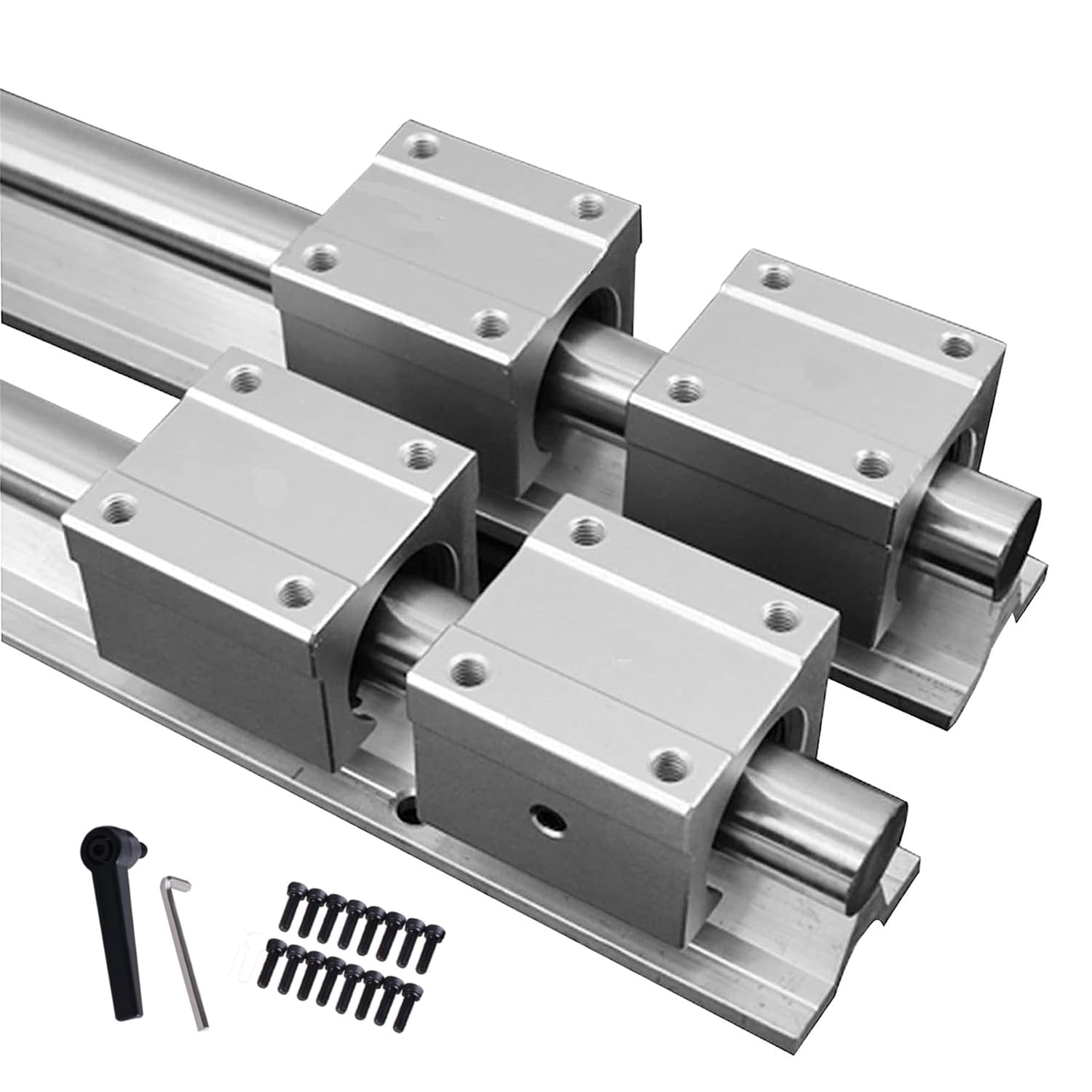

SBR20-1200mm Linear Rail Kit with 4 SBR20UU Blocks - Precise Motion

In this review of the SBR20-1200mm linear rail kit the bottom line is simple: it is a practical, industrial-grade guide kit for DIY CNC, robotics, and other motion systems where a supported 20mm rail is required. The set includes two 1200mm rails and four SBR20UU sliding blocks, and the biggest reason to buy is the combination of sturdy construction and standardized mounting that makes it straightforward to add a fully supported guide to existing frames or new builds.

Key Features

• Complete kit: Ships with two 1200mm rails and four SBR20UU blocks so you get a ready set for dual-rail installations without hunting for matching parts.
• High precision bearing: Industry-standard SBR blocks house a high-precision linear bearing that delivers controlled linear motion suitable for positioning tasks.
• Durable finish: Chrome plating and corrosion-resistant material increase surface hardness and reduce rust for longer service life in workshop settings.
• Easy mounting: Standardized processing and included provisions let installers secure blocks with M6x20 screws and adjust tightness using the block adjustment handle.
• Stable support design: The combination of the main axle shaft and aluminum alloy support stabilizes the rail to reduce deflection on longer spans.

Who It's For

This kit is aimed at hobbyists and small shops building or repairing DIY CNC routers, lathes, laser machines, or other automated fixtures that need a fully supported 20mm linear guide. It is well suited to users who want a ready-made pair of rails and blocks to create a stable dual-rail carriage over a long 1200mm span.

It is less appropriate for precision metrology or ultra-high-speed industrial applications where surface finish, tolerance matching, and factory alignment services are critical; customers who need guaranteed perfect alignment or specialized lengths should consider precision-ground rails or professional service instead.

Pros & Cons

Pros

• Solid build and corrosion-resistant chrome plating provide good long-term durability.
• Includes matching rails and four SBR20UU blocks, saving time sourcing compatible parts.
• Standardized mounting and M6 screw compatibility simplify installation and replacement.
• Good value for projects that need a robust supported 20mm guide over a long span.

Cons

• Some users report occasional alignment and fitment issues during installation that require shimming or careful setup.
• Glide smoothness is mixed in feedback, so final performance can depend on lubrication and alignment care.

Specifications

Product type	Fully supported 20mm linear rail kit
Rail shafts	2 pieces SBR20, 1200mm (47.2 in) each
Bearing blocks	4 pieces SBR20UU square type
Material	Bearing steel with chrome plating, aluminum supports
Accessory screws	16 pieces M6 x 20 screws included as accessories
Performance	Smooth motion, low noise (dependent on setup)

Our Verdict

The SBR20-1200mm kit is a practical, cost-effective choice for hobbyists and small workshops that need a long, supported 20mm guide with matched blocks. It pairs durable, chrome-plated rails with industry-standard SBR20UU blocks to deliver stable motion for CNC and automation projects; buyers should plan for careful alignment and basic setup to achieve the best glide and longevity.

Frequently Asked Questions

Are mounting screws included?
Yes, the kit lists 16 M6x20 screws as accessories to connect the sliding blocks and plates.

Can this kit be used on DIY CNC routers?
Yes, SBR20 rails are commonly used for DIY CNC routers, lathes, laser machines, and other automated equipment where a supported 20mm rail is suitable.

Will the rails resist rust?
The rails have chrome plating and corrosion-resistant treatment to improve surface hardness and reduce rust, though workshop environment and maintenance affect longevity.
