SBR20-1200mm Linear Rail Kit with 4 SBR20UU Blocks - Precision Motion

In this review the SBR20-1200mm linear rail kit is examined for hobby CNC builders and light industrial projects; it is best for users who need a long, fully supported shaft guide kit that pairs rigid rails with multiple bearing blocks. The kit's single biggest reason to buy is its complete package: two 1200mm SBR20 rails plus four SBR20UU bearing blocks and mounting hardware make it ready to install into an X-Y table or router gantry without sourcing extra parts. The reviewer found the components robust and practical for straightforward linear motion builds.

Key Features

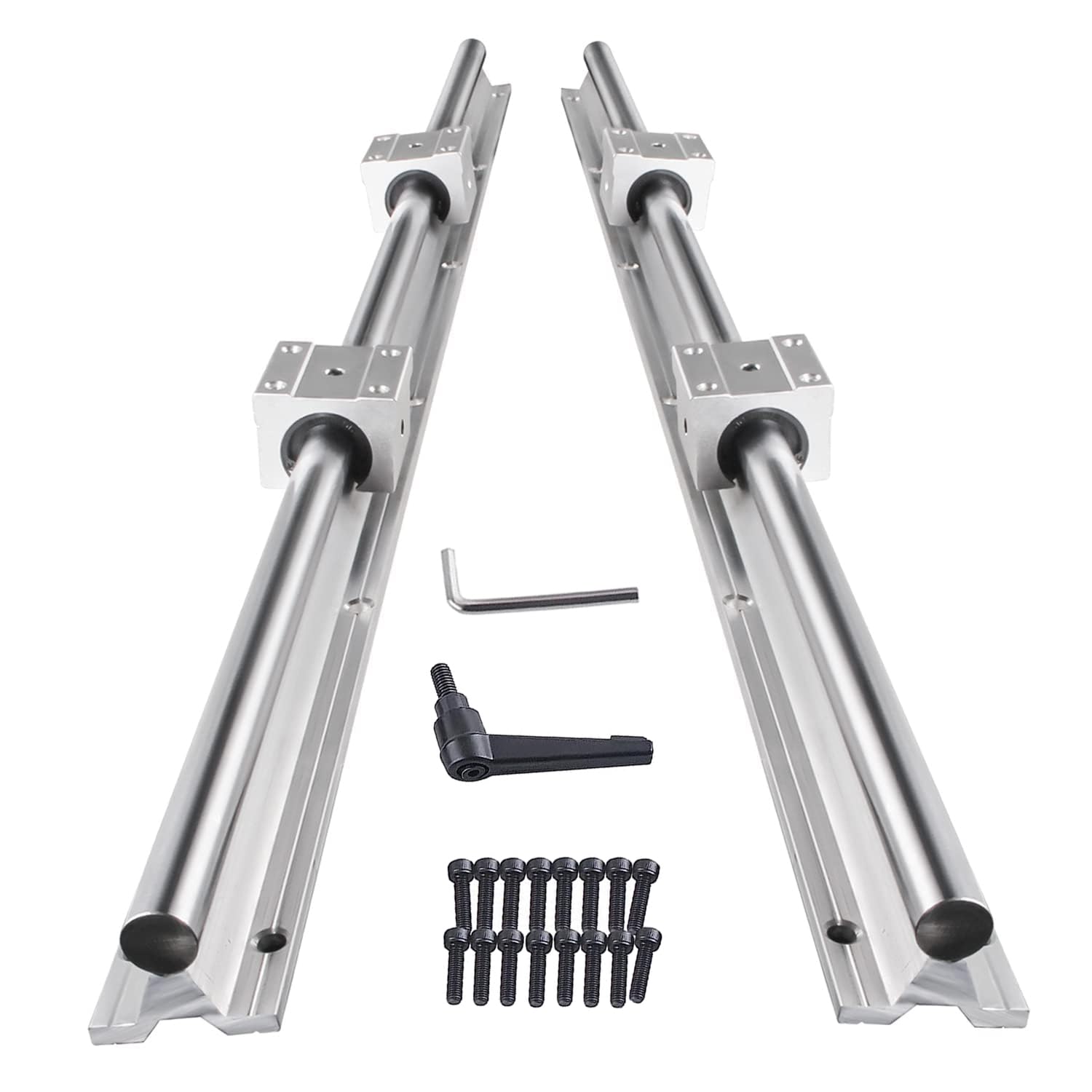

• Complete package: Includes two 1200mm SBR20 rails, four SBR20UU bearing blocks, 16 M6 screws, a locking handle and a 4mm wrench, which reduces the need for extra parts when assembling a motion system.
• Durable materials: Rails are made of carbon steel and the slider blocks use bearing steel with aluminum alloy housings to resist deformation and extend service life.
• Four-point contact design: The bearing blocks use a four-point contact arrangement that distributes loads evenly in all directions and supports higher precision under load.
• Pre-drilled supports: Aluminum alloy supports have pre-drilled holes to simplify alignment and mounting during installation.
• Easy block installation: Carriages slide on by aligning the track mouth and pushing the block on, making setup faster for DIY assembly.
• Versatile application: Designed for a range of machines from DIY CNC routers and laser cutters to X-Y tables, making it a flexible choice for many projects.

Who It's For

The kit is aimed at hobbyists, small machine shops and builders of DIY CNC routers or X-Y tables who want a cost-effective, ready-to-mount linear guide with long 1200mm rails and multiple bearing blocks to support long spans. Anyone assembling a new gantry or replacing worn guides will appreciate the included hardware and locking handle.

Those needing ultra-high precision for professional metrology, very quiet operation, or pre-lapped, factory-matched carriages should look elsewhere; some users report slight play or noise that may be unacceptable for extremely tight-tolerance applications.

Pros & Cons

Pros

• Good value: the bundle supplies rails, blocks and hardware for a complete installation at a competitive price.
• Solid construction: carbon steel rails and bearing-steel sliders with aluminum housings feel durable under typical workshop use.
• Four-point contact and pre-drilled supports simplify mounting and improve load distribution for long-span setups.
• Includes adjustment components: the M6 locking handle and wrench make it easier to set slider tightness during assembly.

Cons

• Mixed smoothness: some users report the carriages feel a bit sloppy or noisy compared with higher-end linear guides.
• Fit variability: a few buyers noted carriages could be either too tight or too loose, requiring shimming or adjustment for optimal performance.

Specifications

Our Verdict

The SBR20-1200mm kit is a practical, cost-conscious choice for DIY CNC builders and small shops that need long supported rails and multiple carriages in one package. It offers durable materials and useful mounting hardware, though buyers should allow for minor adjustments to carriage preload to achieve the smoothness required for higher-precision tasks. For general workshop motion systems it delivers strong value.

Frequently Asked Questions

Can the blocks be adjusted?
Yes, the kit includes an M6 locking handle and the blocks can be tightened or loosened to adjust preload during installation.

Are these rails ready to mount?
Yes, the set includes pre-drilled aluminum supports and the screws needed to attach the SBR20UU blocks, so minimal additional hardware is required.

Is this suitable for heavy industrial loads?
The four-point contact design supports higher loads than simple shaft guides, but for heavy continuous industrial use a higher-spec industrial rail system may be preferable.
