SBR20-800mm Linear Rail Slide Kit - Smooth High-Load Guide

In this review of the SBR20-800mm linear rail slide kit the bottom line is simple: it is a practical, heavy-duty linear guide set for DIY builders and light industrial automation where smooth, repeatable linear motion matters. The kit includes two 800 mm SBR20 rails and four SBR20UU slide blocks, and the single biggest reason to consider it is the combination of a 20 mm hardened shaft and built-in ball bearings that deliver low friction movement under load. It suits CNC hobbyists, router sled builders, and automation hobby projects that need sturdy, affordable rails.

Key Features

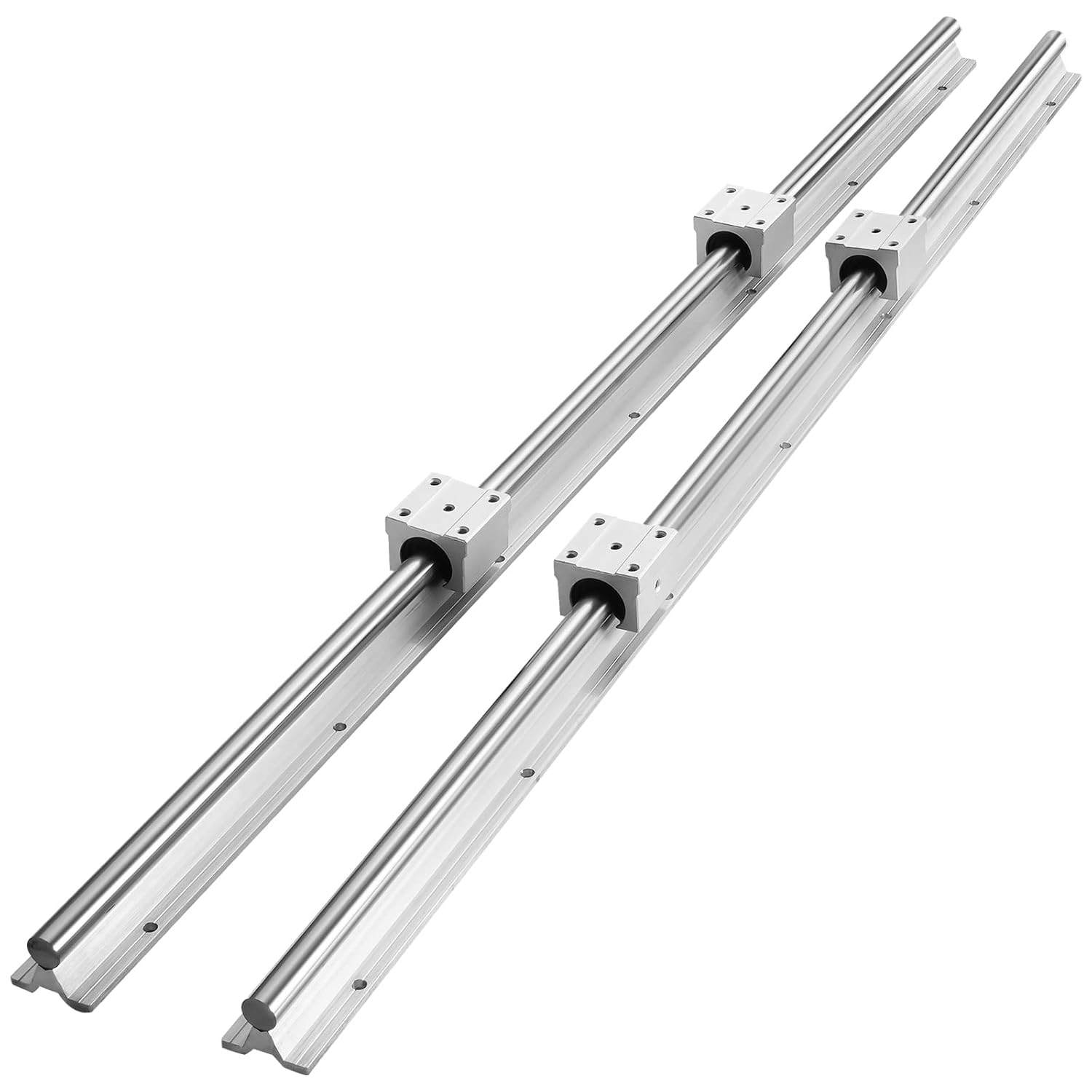

• Complete kit: Comes with two 31.5 in/800 mm SBR20 rails and four SBR20UU slide blocks so users have the essential components to set up a two-rail linear stage.
• High load capacity: Each block supports a dynamic load of 882 N and a static load of 1370 N, providing reliable support for heavier router sleds and gantry stages.
• Durable materials: Shafts are high carbon steel with a chrome-plated finish and aluminum supports for rust resistance and longer life in workshop environments.
• Low noise motion: Built-in ball bearings inside the aluminum slide blocks reduce friction and help achieve smoother, quieter sliding during operation.
• Precision and repeatability: The circular shaft dimensions and straightness are manufactured to support accurate, repeatable motion for CNC and laser applications.
• Easy mounting: Slide blocks and aluminum base include accurate mounting hole patterns for straightforward installation and alignment.

Who It's For

This kit is aimed at makers, hobby CNC builders, and small workshop owners who need a robust, affordable linear guide solution for router sleds, 3D printer modifications, laser engravers, or light CNC machines. It is particularly useful when higher load tolerance and low friction motion are required without high cost.

Those who should look elsewhere include precision industrial installations that require certified super-accurate rails or users who need a complete fastener and accessory pack in the box; some customers report missing hardware and occasional straightness issues, so heavy precision labs may prefer higher-grade linear rails with tighter tolerances and full accessory kits.

Pros & Cons

Pros

• Solid load ratings per block that suit heavier DIY machines and automation tasks.
• Chrome-plated carbon steel shafts and aluminum blocks provide durability and rust resistance in workshop use.
• Built-in ball bearings deliver generally smooth, low-noise sliding for everyday projects.

Cons

• Some users report inconsistent rail straightness and occasional blocks that do not move smoothly, so inspection and light tuning may be needed on arrival.

Specifications

Model Number	SBR20-C 800L
Guide Rail Length	31.5 in / 800 mm
Shaft Diameter	20 mm
Dynamic Load (per block)	882 N
Static Load (per block)	1370 N
Slide Block Size	50 x 48 x 39 mm (L x W x H)
Net Weight	14.1 lbs / 6.4 kg

Our Verdict

The SBR20-800mm linear rail slide kit is a cost-effective choice for hobbyists and small machine builders who need sturdy, repeatable linear motion. With solid load capacity and durable chrome-plated shafts, it delivers strong value for router sleds, CNC hobby builds, and similar projects, though buyers should inspect components on receipt and be prepared to address minor straightness or missing-hardware issues.

Frequently Asked Questions

Does the kit include mounting hardware?
The package contains two rails and four SBR20UU slide blocks; additional mounting fasteners are not guaranteed and may need to be sourced separately.

Are the rails corrosion resistant?
The shafts are chrome-plated carbon steel and the supports are aluminum, which provides a reasonable level of rust resistance for workshop use.

Is this suitable for CNC router use?
Yes, the load ratings and low-friction slide blocks make it suitable for many CNC router sleds and similar DIY automation projects.
