SBR20 Linear Rail Set 2200mm with 4 SBR20UU Blocks - Precision Guide

In this review the SBR20 Linear Rail Set is evaluated as a budget-friendly linear motion option for hobbyists and small shops. It includes two 2200 mm SBR20 shafts and four SBR20UU slide blocks, and the single biggest reason to consider it is the combination of load capacity and durable materials that deliver reliable, low-noise motion for DIY CNC builds and light industrial automation.

Key Features

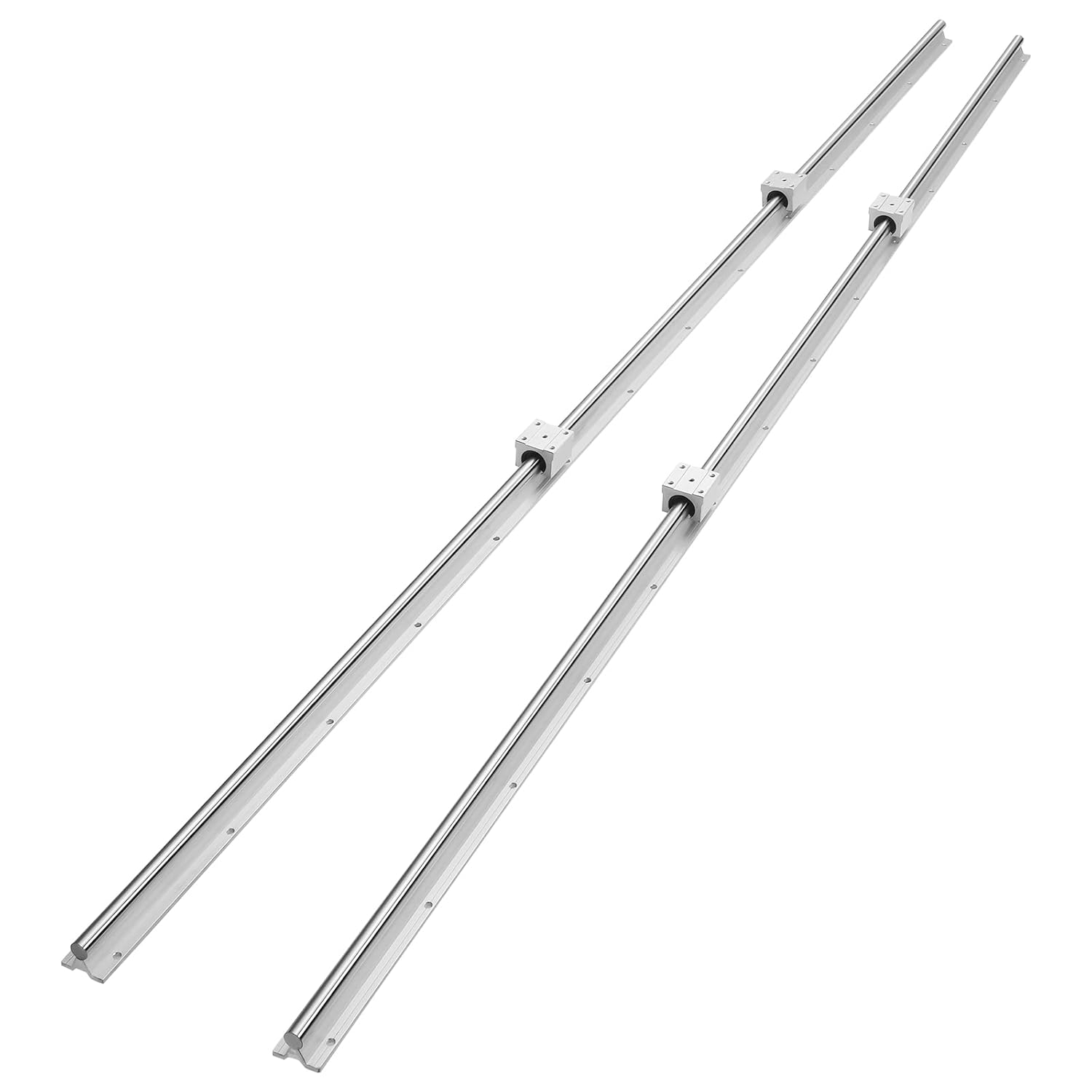

• Complete set: Two 2200 mm SBR20 guide rails with four SBR20UU slide blocks provide a ready-made linear motion assembly for rails up to 86.6 in length.
• Load capacity: Each block supports a dynamic load of 882 N and a static load of 1370 N, making the set suitable for many moderate-load applications.
• Durable construction: Carbon steel shafts with chrome-plated surfaces and aluminum slide blocks resist rust and wear for longer service life.
• Low-noise movement: Built-in ball bearings in the aluminum blocks reduce friction and allow smoother, quieter sliding under typical loads.
• Precision shafting: The circular shaft dimensions and straightness are manufactured for good repeatability and stable motion in machines where alignment is controlled.
• Easy mounting: Slide blocks and the aluminum base include accurate mounting holes to simplify installation and alignment in frames and carriages.

Who It's For

This SBR20 kit is aimed at DIYers building CNC routers, laser engravers, 3D printers, or other motion platforms that need long travel and moderate load capability. It suits hobbyists and small fabrication shops that prioritize cost-effectiveness and straightforward installation over premium sealed carriages.

Those who require ultra-high precision from sealed linear rails, guaranteed perfect straightness out of the box, or preassembled linear stages for production environments should look at higher-end linear guides; some buyers have reported mixed results with rail straightness and block smoothness that can require inspection and adjustment.

Pros & Cons

Pros

• Good value: the set bundles long rails and four blocks at a price point that suits many projects.
• Durable materials: chrome-plated carbon steel shafts and aluminum blocks resist corrosion and wear.
• Smooth operation: built-in ball bearings provide low-friction movement in normal conditions.
• High load ratings: dynamic and static loads per block support heavier DIY fixtures and carriages.

Cons

• Mixed straightness: some customers report bent rails or blocks that do not slide perfectly, so incoming inspection is advised.
• Not fully sealed: blocks are aluminum style with bearings and may need maintenance in dusty or harsh environments.

Specifications

Package contents	2 x SBR20 shafts (2200 mm) and 4 x SBR20UU blocks
Shaft length	2200 mm (86.6 in)
Dynamic load per block	882 N
Static load per block	1370 N
Materials	Carbon steel shaft (chrome-plated) and aluminum slide blocks
Bearing type	Built-in ball bearings in aluminum blocks

Our Verdict

For hobbyists and small shops building CNC routers and similar equipment, the SBR20 Linear Rail Set offers strong value: long rails, respectable load ratings, and low-noise motion from ball-bearing blocks. Expect to inspect rails on arrival and perform basic alignment; when fitted and tuned, this set delivers reliable performance at a price most DIY builders will appreciate.

Frequently Asked Questions

Are the rails ready to mount out of the box?
They are supplied ready to install, but buyers should check rail straightness and block smoothness on arrival and adjust alignment as needed.

What load can each block handle?
Each SBR20UU block is rated for a dynamic load of 882 N and a static load of 1370 N.

Is the set suitable for outdoor use?
The chrome-plated shaft offers rust resistance, but the blocks are not fully sealed, so additional protection or maintenance is recommended for dusty or wet outdoor conditions.
