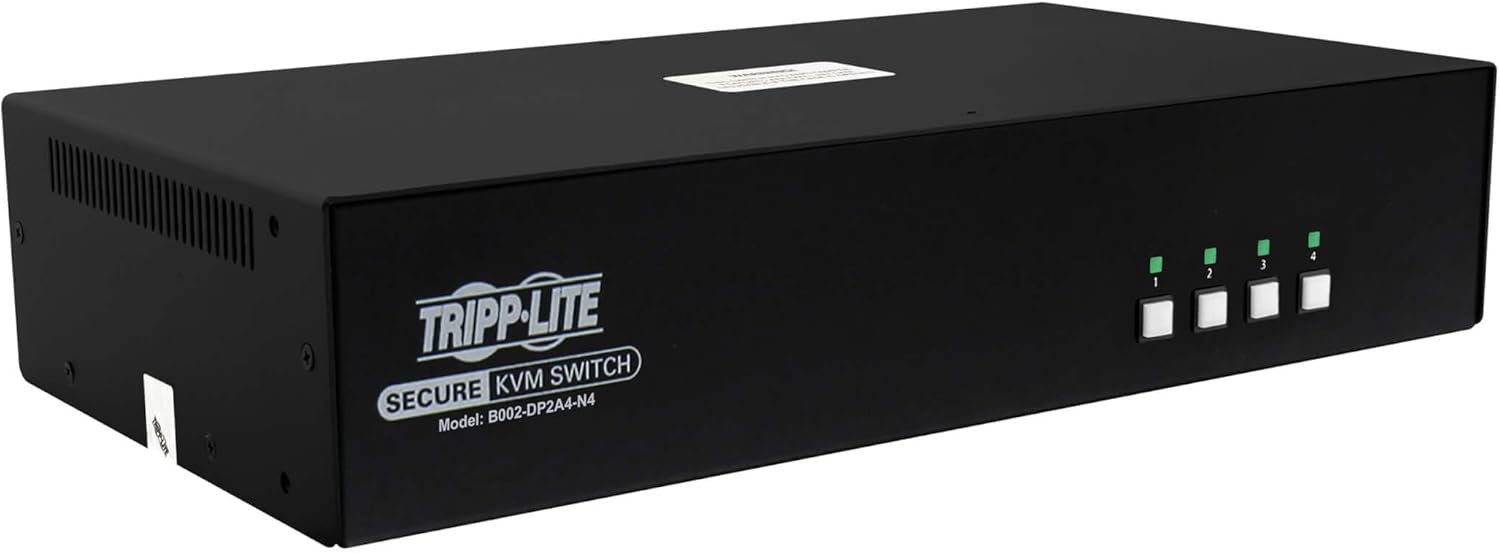

Secure KVM Switch 4-Port DisplayPort - NIAP PP4.0 Certified

In this review the focus is on a purpose-built secure KVM switch designed for environments where data separation and assurance matter most. The unit is aimed at government, military, finance, education and healthcare settings and the single biggest reason to buy it is its NIAP PP4.0 certification, which guarantees an evaluated level of tamper resistance and electronic isolation between computers. The reviewer found the hardware and firmware approach straightforward: four electronically isolated DisplayPort channels, a dedicated CAC port for smart card authentication, and support for Ultra HD output up to 3840 x 2160 at 30 Hz.

Key Features

• NIAP PP4.0 Certification: Provides verified protection under the latest Common Criteria profile for peripheral sharing switches, so it meets strict government information assurance standards.
• Four Isolated Ports: Each KVM port is an electronically isolated channel, preventing data transfer between connected systems even across security domains.
• 4K Video Support: Supports Ultra HD resolutions up to 3840 x 2160 at 30 Hz so a single monitor retains clear, high-resolution output for administrative work.
• Built-in CAC Port: A dedicated Common Access Card interface simplifies secure authentication workflows in environments that require smart card logon.
• Anti-Tamper Design: Internal anti-tamper switches disable the unit and flash front-panel LEDs if the housing is opened, reinforcing physical security.
• TAA Compliance and Warranty: TAA compliant for federal procurement and backed by a 3-year limited warranty with phone and email support.

Who It's For

This device is tailored for IT teams and security architects responsible for consolidated console access in high-assurance facilities such as government agencies, military installations, and regulated enterprises in finance or healthcare. The NIAP certification and CAC support make it appropriate where policy requires certified peripheral isolation and smart card authentication.

It is not aimed at home users or general office environments that do not need evaluated tamper resistance or federal procurement compliance. Small offices seeking simple KVM switching without certification or smart card needs should look for lower-cost consumer models.

Pros & Cons

Pros

• NIAP PP4.0 certification ensures a high level of evaluated security for sensitive applications.
• Electronically isolated ports prevent cross-host data leakage, which is critical in multi-level security setups.
• Support for 4K at 30 Hz preserves clarity on a single ultra HD monitor for administrative tasks.
• Physical anti-tamper mechanism and CAC port integrate well with strict access control policies.

Cons

• Video is limited to 30 Hz at 4K, so it is not ideal for motion-sensitive AV or high-refresh workflows.
• The focus on evaluated security and government compliance makes it a higher-cost and more specialized option than consumer KVMs.

Specifications

Product Type	4-Port DisplayPort KVM Switch
Security Certification	NIAP Common Criteria PP4.0
Video Resolution	Up to 3840 x 2160 (4K) at 30 Hz
Smart Card Support	Common Access Card (CAC) port
Compliance	TAA Compliant
Warranty	3-Year Limited Warranty

Our Verdict

This secure KVM switch is a practical, evaluated solution for organizations that require certified peripheral sharing and smart card authentication. It delivers robust electronic isolation, an anti-tamper design and 4K display support while meeting TAA and NIAP PP4.0 requirements, making it a solid value for agencies and enterprises that must follow strict procurement and information assurance rules.

Frequently Asked Questions

Does this switch support smart card authentication?
Yes, it includes a Common Access Card (CAC) port for smart card based logon and secure workflows.

What level of video quality can I expect?
The switch supports Ultra HD resolutions up to 3840 x 2160 at 30 Hz on a single monitor.

Is this approved for federal procurement?
Yes, the unit is TAA compliant and NIAP PP4.0 certified, making it suitable for many federal contracts.
