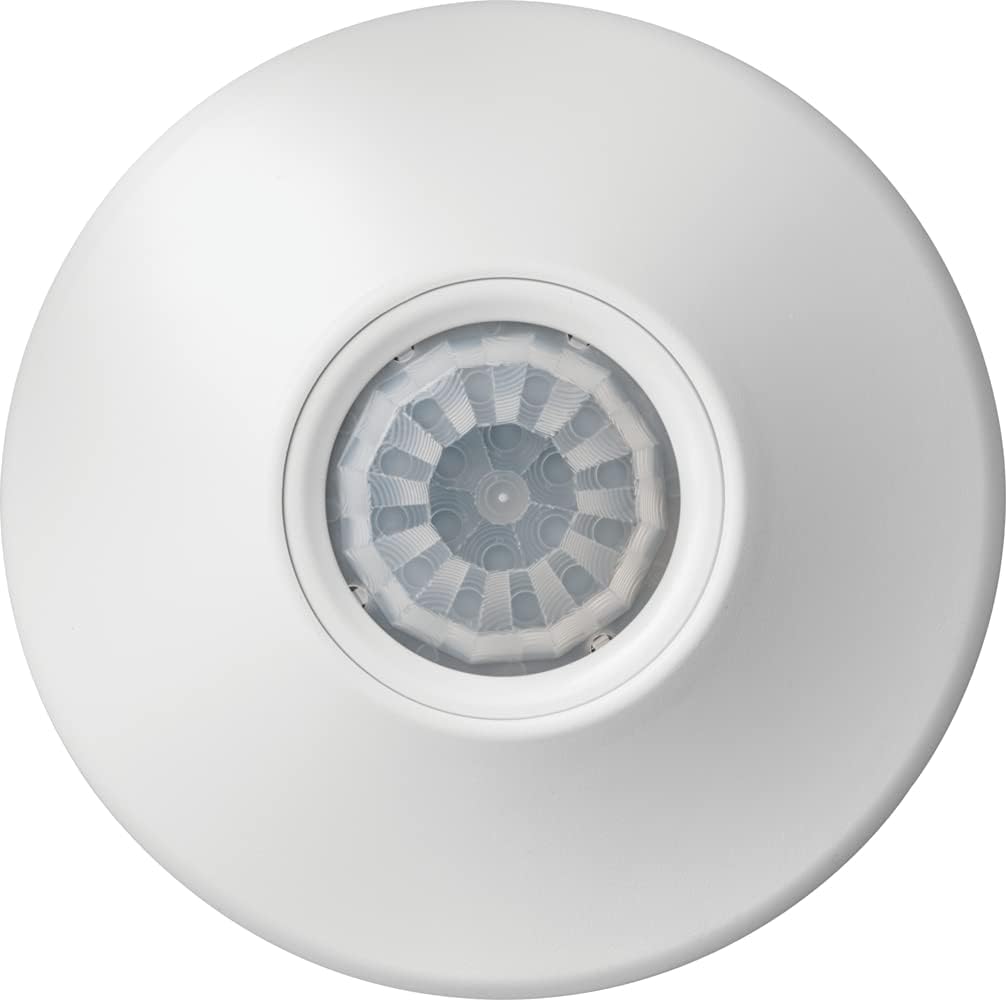

SensorSwitch Ceiling Motion Sensor PDT 360 - Small Motion Detection

In this review the SensorSwitch Ceiling Motion Sensor PDT is evaluated as a practical ceiling-mounted occupancy sensor for commercial and office spaces. The bottom line: it is for facilities or small rooms that need reliable, hands-free light control and good sensitivity to subtle movement. The reviewer found the PDT dual-technology approach - combining Passive Infrared and microphonics - to be the single biggest reason to buy, since it improves detection of small gestures and overlapping activity across a room while avoiding false triggers from random noise.

Key Features

• Dual sensor technology: PDT combines PIR and microphonics for overlapping detection, improving reliability for subtle movements like hand gestures or a person shifting in place.
• 360 conical coverage: The sensor provides full 360 degree detection so a single unit can cover a private office or small room without blind spots.
• Optimized small motion range: This version is tuned for small motion within about a 12 ft radial range, helpful for desks, workstations, and storage rooms.
• Easy ceiling installation: The unit installs into ceiling tiles, metal grids, 3.5 in octagon boxes, or single gang boxes with included mounting hardware for a fast fit.
• Line voltage compatibility: Self-contained relay operation means it integrates with existing lighting circuits without a separate power pack.
• Programmable delay and indicators: Time delay is adjustable from 30 seconds to 20 minutes and a green LED gives a clear status indication.

Who It's For

The SensorSwitch ceiling sensor is best for building managers, office fit-outs, and retail or utility spaces where automated lighting can save energy and improve convenience. Its sensitivity to small motions and 360 coverage make it a good fit for private offices, garages, closets, and small meeting rooms where subtle occupancy must be detected.

Those who should look elsewhere include installations requiring long-range hallway coverage or outdoor weatherproof sensors, since this unit is designed for indoor, standard-range ceiling mounting only. Also, if you need an ultra-simple on/off without any programming, the configurable delay options may be more than needed.

Pros & Cons

Pros

• Reliable detection from the combined PIR and microphonics approach, which improves sensitivity for subtle motion.
• Wide 360 coverage lets a single sensor serve a small room or private office effectively.
• Simple ceiling installation and included hardware make retrofits straightforward.
• Line voltage relay integration avoids the need for external power modules or packs.

Cons

• Configuration opinions are mixed among users, so initial setup may require patience to dial in the preferred delay and sensitivity.
• Designed for indoor, standard-range use only, so it is not suitable for high ceilings or outdoor locations.

Specifications

Coverage	360 conical
Detection range	Optimized for small motion within 12 ft radial range
Mounting	Ceiling tiles, metal grids, 3.5 in octagon boxes, single gang boxes
Height compatibility	Detects motion from 8 to 15 ft ceiling height
Delay timer	30 seconds to 20 minutes
Dimensions	4.55 in diameter x 1.55 in deep
Warranty & safety	CSA certified for US and Canada; 5-year limited warranty

Our Verdict

The SensorSwitch Ceiling Motion Sensor PDT is a sensible choice for commercial interiors that need dependable small-motion detection and full-room coverage without extra power modules. It offers straightforward ceiling installation, programmable delays, and reliable dual-technology sensing, making it good value for facility managers and installers who want an unobtrusive, line-voltage occupancy sensor that handles subtle activity well.

Frequently Asked Questions

Can this sensor be installed in a standard drop ceiling?
Yes. It is compatible with ceiling tiles and metallic grids and includes mounting hardware for those installations.

Will it work on existing lighting circuits?
Yes. The sensor has a self-contained relay and is designed for line voltage integration without a separate power pack.

How far will it reliably detect small motion?
The sensor is optimized for detecting small gestures within about a 12 ft radial range and is intended for ceilings between 8 and 15 ft.
