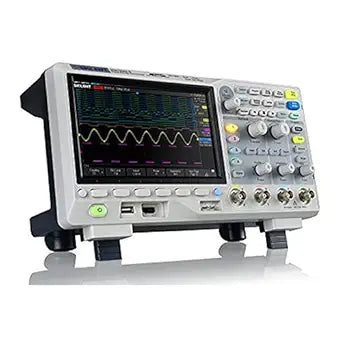

Siglent SDS1104X-E 100MHz 4-Channel Digital Oscilloscope - Detailed

In this review the Siglent SDS1104X-E is examined as a mid-range bench oscilloscope aimed at engineers and technicians who need reliable waveform capture and versatile decoding. The bottom line: it is a solid, workhorse instrument that stands out for its high waveform capture rate and extensive serial bus decoding, making it particularly useful for embedded software debugging and general lab use. The unit balances performance and practicality for users who need clear signal fidelity without moving to high-end lab-class scopes.

Key Features

• SPO signal fidelity: The Super-Phosphor Oscilloscope technology provides lower system noise and clearer waveform detail for better analysis.
• High capture rate: A waveform capture rate up to 400,000 frames/sec in sequence mode lets users see rare glitches and intermittent events.
• Serial bus decoding: Built-in decoding for IIC, SPI, UART/RS232, CAN and LIN simplifies protocol debugging without extra software.
• Sensitive vertical input: A minimum vertical input range of 500 uV/div enables observation of low-amplitude signals that would be lost on less sensitive scopes.
• Intensity grading display: The 256-level intensity grading and color temperature mode improve visibility of signal density and timing relationships.
• Optional digital channels and AWG: The model supports a 16-channel MSO option and a USB AWG module option for mixed-signal work and signal generation.

Who It's For

The SDS1104X-E is best for electronics engineers, firmware developers and test technicians who need reliable analog and digital capture with protocol decoding built in. Its features suit bench debugging of microcontroller designs, automotive bus analysis and routine lab measurements where seeing rare events matters.

Those who need extremely high bandwidth beyond 100 MHz, very deep memory for long-duration captures, or an oscilloscope with built-in automated test suites may want to consider higher tier models. For hobbyists or simple signal checks, its full feature set may be more than necessary.

Pros & Cons

Pros

• Excellent signal fidelity and low system noise thanks to SPO technology.
• Very high waveform capture rate makes it easy to catch intermittent glitches.
• Convenient built-in serial bus decoding for common protocols without extra tools.
• Options for MSO and AWG expand functionality for mixed-signal and generation tasks.

Cons

• 100 MHz bandwidth limits applications that require higher frequency analysis.
• The package weight and bench footprint reflect a professional instrument rather than a compact portable unit.

Specifications

Model	SDS1104X-E
Bandwidth	100 MHz
Channels	4 analog channels (option for 16 digital MSO)
Waveform capture rate	Up to 400,000 frames/sec (sequence mode)
Vertical range	Minimum 500 uV/div
Serial decoding	IIC, SPI, UART/RS232, CAN, LIN
Package weight	4.0 Kg

Our Verdict

The Siglent SDS1104X-E is a well rounded 100 MHz oscilloscope that delivers strong value for engineers who need reliable capture, clear display grading and built-in protocol decoding. It is a practical choice for embedded development and general lab use where capturing rare events and decoding serial buses are routine tasks.

Frequently Asked Questions

Does this model decode serial buses?
Yes. It includes decoding for IIC, SPI, UART/RS232, CAN and LIN as part of the standard feature set.

Can it be upgraded to mixed-signal use?
Yes. The four-channel series supports an optional 16-channel MSO upgrade for digital channel capture.

Is an AWG available?
There is an optional USB AWG module available for the four-channel series to add signal generation capability.
