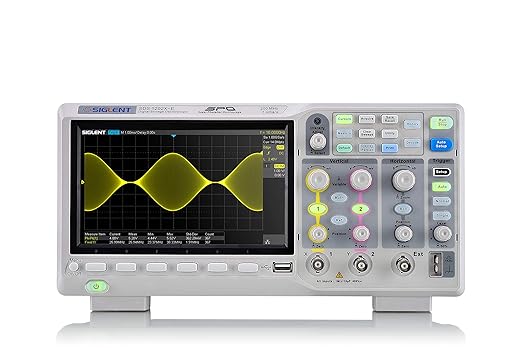

Siglent SDS1202X-E 200 MHz Digital Oscilloscope - High Fidelity

In this review the Siglent SDS1202X-E is evaluated as a midrange bench oscilloscope aimed at engineers, technicians and advanced hobbyists who need reliable waveform detail and fast capture rates. The bottom line: its 200 MHz bandwidth, 1 Gsa/s sampling and a 400,000 frames/sec capture rate deliver excellent signal fidelity and rare glitch visibility for the price, making it a strong choice when waveform clarity and versatile triggering are the priority.

Key Features

• 200 MHz bandwidth: Provides clear, accurate rendering of signals up to 200 MHz for most analog and digital debugging tasks.
• 1 Gsa/s sample rate: Ensures high time resolution so fine timing details and edges are captured reliably.
• 400,000 frames/sec waveform capture: High capture rate increases the chance of catching rare glitches and intermittent events during testing.
• 256-level intensity grading: The display intensity grading and color temperature mode make it easier to see frequency-dependent persistence and overlapping waveforms.
• Advanced digital trigger and serial decoding: Offers sensitive, low-jitter triggering plus standard decoding for I2C, SPI, UART, CAN and LIN to speed protocol debugging.

Who It's For

The SDS1202X-E is best for electronics engineers, field service technicians and serious hobbyists who need a dependable bench oscilloscope with strong signal fidelity and a fast waveform capture rate to troubleshoot analog circuits and digital buses. Its combination of bandwidth, sampling and triggering suits development, repair and validation work where seeing intermittent faults matters.

Users seeking lower-cost basic scopes with minimal features or those who require more than two channels or far higher bandwidth should consider other options. Also, if you need an ultra-compact portable scope, this bench-oriented model may be larger and heavier than ideal.

Pros & Cons

Pros

• High capture rate and 1 Gsa/s sampling reveal transient and intermittent events effectively.
• Strong signal fidelity with low system noise gives accurate waveform reproduction for measurements.
• Built-in serial bus triggering and decoding speed up embedded systems debugging workflows.
• Display features like 256-level intensity grading improve visibility of overlapping signals.

Cons

• Only two channels, which may limit use in multi-channel measurement scenarios.
• Bench form factor is not ideal for highly portable, on-site field work.

Specifications

Model	SDS1202X-E
Bandwidth	200 MHz
Sample Rate	1 Gsa/s
Channels	2
Waveform Capture Rate	400,000 frames/sec (sequence mode)
Display Features	256-level intensity grading; color temperature mode
Decoding	Standard I2C, SPI, UART, CAN, LIN

Our Verdict

The Siglent SDS1202X-E is a compelling choice for professionals and advanced hobbyists who need clear waveform fidelity and strong capture performance without moving to a much higher price tier. Its sensitive triggering and built-in protocol decoding deliver practical value for debugging, while the display and low noise improve diagnosis. Recommended for bench use when two channels and 200 MHz bandwidth meet the project needs.

Frequently Asked Questions

Does this scope decode serial protocols?
Yes. It includes standard decoding for I2C, SPI, UART, CAN and LIN, which helps embedded systems debugging.

How many channels does the SDS1202X-E have?
The unit provides two channels, suitable for most single-device and comparison measurements but limited for multi-channel captures.

Is the scope good at catching intermittent glitches?
Yes. The 400,000 frames/sec waveform capture rate and sensitive digital trigger increase the likelihood of capturing rare transient events.
