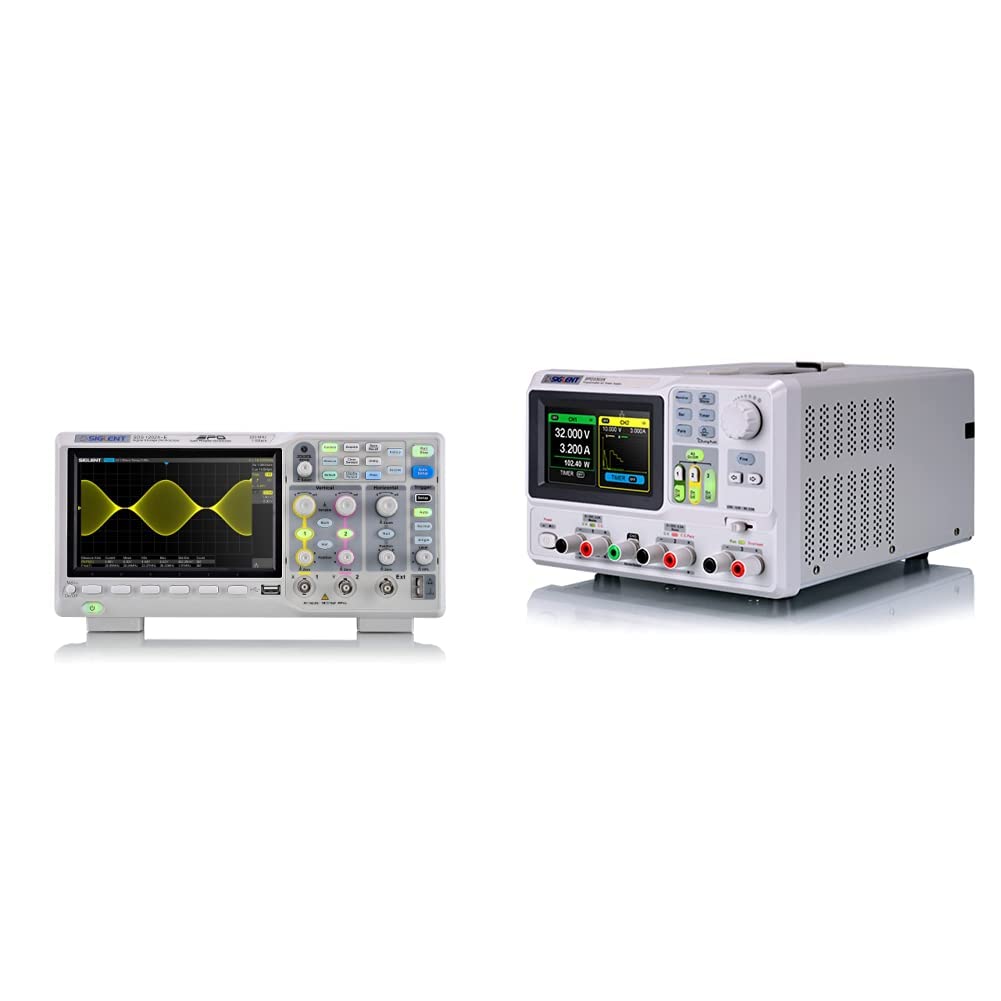

Siglent SDS1202X-E Digital Oscilloscope and SPD3303X-E Power Supply

The Siglent SDS1202X-E Digital Oscilloscope is a powerful tool designed for engineers and hobbyists alike. With a real-time sampling rate of up to 1 gsa/sec, this oscilloscope ensures that you capture every detail of your signals with precision. The impressive record length of up to 14 Mpts allows for extensive data collection, making it ideal for complex measurements.

One of the standout features of the SDS1202X-E is its support for serial bus triggering, which includes protocols like IIC, SPI, UART, RS232, CAN, and LIN. This capability makes it a versatile choice for those working with various communication standards. Additionally, the oscilloscope employs advanced Spo technology that enhances signal fidelity and reduces noise, ensuring accurate readings even in challenging environments.

The minimum vertical input range of 500 V/div allows for a wide range of signal amplitudes to be analyzed. This flexibility is crucial for engineers who need to work with both low and high voltage signals. Furthermore, the oscilloscope features history waveform recording and sequential triggering, which are essential for capturing transient events and analyzing signal behavior over time.

Complementing the oscilloscope is the Siglent SPD3303X-E Triple Output Power Supply, which provides three independent isolated outputs. With two outputs rated at 32V/3.2A and one output configurable at 2.5/3.3/5V/3.2A, this power supply delivers a total power of 220W. This makes it suitable for powering multiple devices simultaneously, enhancing your testing capabilities.

The SPD3303X-E also features trending graphs and a timing output function, which are invaluable for monitoring changes in output over time. Users can select from various output modes, including independent, series, and parallel, providing flexibility in how power is delivered to your circuits. This adaptability is particularly beneficial for testing scenarios that require different voltage and current configurations.

Both the oscilloscope and power supply are designed with user-friendly interfaces, making them accessible for both beginners and experienced professionals. The 1M points FFT math function on the oscilloscope allows for advanced signal analysis, enabling users to perform frequency domain analysis with ease. Additionally, the hardware co-processor ensures fast measurements, reducing the time spent waiting for results.

In conclusion, the combination of the Siglent SDS1202X-E Digital Oscilloscope and the SPD3303X-E Triple Output Power Supply provides a comprehensive solution for anyone involved in electronic testing and development. With their advanced features and robust performance, these tools are sure to meet the demands of any project.
