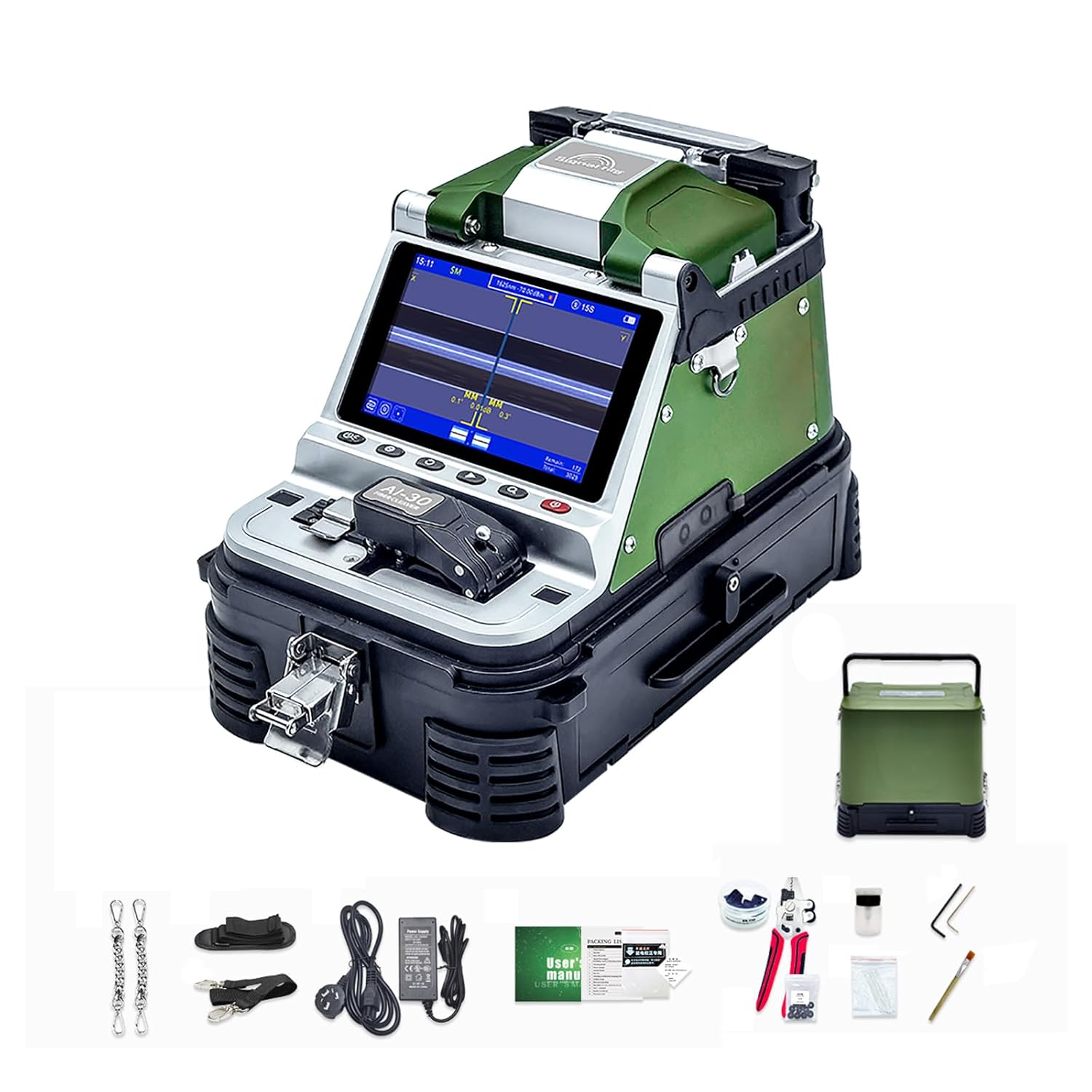

Signal fire Ai-30 Fusion Splicer High-Precision One-Step Cutter

In this review the Signal fire Ai-30 Fusion Splicer stands out as a practical, cost-conscious choice for field techs and small installation teams who need a compact, all-in-one splicing kit. The single biggest reason to consider it is the combination of visible fiber cores and an integrated one-step cleaver that speeds routine splices while reducing handling steps. It is presented as a fourth-generation unit that balances fast splice and heat cycles with built-in test tools, making it easy to carry between jobs.

Key Features

• Visible Fiber Cores: Visible core alignment gives clearer fiber positioning and supports reported sub-0.05 m placement accuracy for tighter splices.
• Fast Splice and Heat: A high-speed motor delivers about 6 second splice time and 15 second heat time, enabling rapid, repeated operations on site.
• One-Step Cleaver: The automatic delayed-return electric cleaver and integrated waste box remove a common source of end-face scratches and save time on prep.
• Built-in VFL and OPM: Integrated visible fault locator and power meter let technicians verify continuity and measure loss without carrying extra handheld testers.
• Mobile App and Language Support: App connectivity and multi-language menus make setup and record review straightforward for diverse crews.
• Long Battery Life and Display: A 5-in high-resolution screen and 7800 mAh battery support extended field shifts and enlarged magnification for inspection.

Who It's For

The Ai-30 is best suited to installation technicians, small contractors, and maintenance teams who need a portable, integrated splicing tool that reduces the number of separate instruments carried to a job. Its combination of visible-core alignment, built-in VFL and OPM, and a one-step cleaver is especially useful where speed and convenience are priorities.

Users who require absolute top-tier laboratory splice repeatability or those running very high-volume fiber centers might prefer a larger, dedicated laboratory splicer with advanced diagnostic reporting and enterprise-grade throughput. Also, operators should be prepared to keep the cleaver area clean to maintain accuracy.

Pros & Cons

Pros

• Integrated VFL and OPM reduce the need for extra test equipment on site.
• Fast cycle times (6s splice, 15s heat) and a high-capacity battery support continuous field work.
• Automatic delayed-return one-step cleaver simplifies fiber prep and lowers the chance of end-face damage.
• Clear 5-in display and app connectivity make inspection and record keeping convenient.

Cons

• Some customers report mixed results on alignment accuracy and occasional alignment errors under certain conditions.
• The cleaver requires regular cleaning to maintain the quoted accuracy and avoid prep issues.

Specifications

Model	Ai-30 Fusion Splicer
Visible core accuracy	Up to 0.05 m
Splice time	Approximately 6 seconds
Heat time	Approximately 15 seconds
Battery	7800 mAh lithium, ~3.5 hour charge
Display	5-in high-resolution LCD, up to 320x magnification
Built-in tools	VFL and OPM with multiple wavelengths

Our Verdict

The Signal fire Ai-30 is a practical value-oriented fusion splicer for field technicians who want an all-in-one tool with visible fiber cores, fast cycle times, and built-in test functions. It delivers useful convenience and speed for most installation and repair scenarios, though users should maintain the cleaver and be aware that a small number of operators reported alignment inconsistencies.

Frequently Asked Questions

Does this splicer include an optical power meter?
The Ai-30 includes a built-in OPM that supports multiple wavelengths for loss measurement and link verification.

How fast are splice and heat cycles?
Typical operation reports about 6 second splice time and 15 second heat time, allowing rapid repeated splices in the field.

Is the cleaver reliable for field use?
The automatic delayed-return one-step cleaver is convenient and reduces end-face scratches, but it must be kept clean to maintain accuracy.
