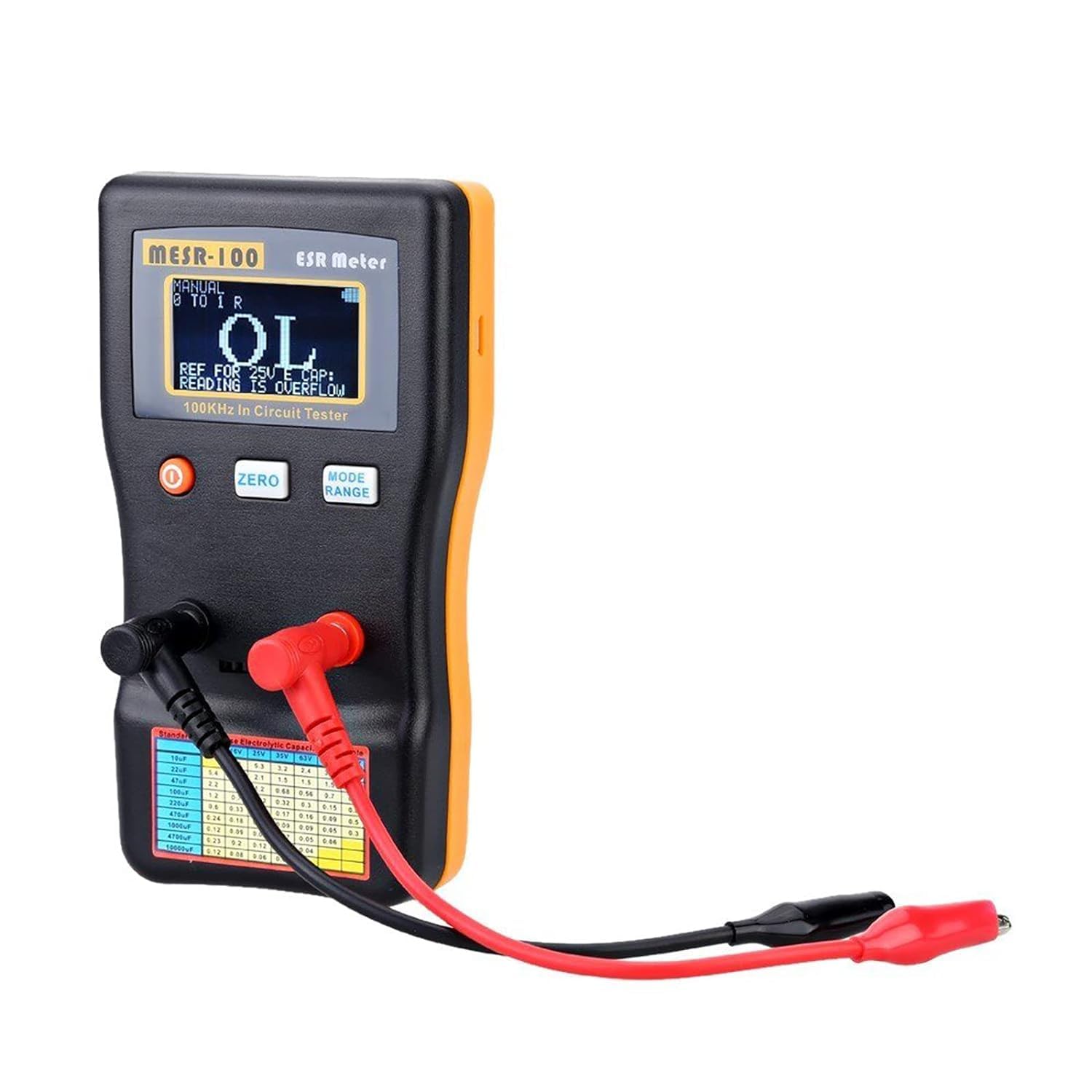

Signstek MESR-100 V2 ESR Meter Capacitor Tester - In-Circuit ESR Check

In this review of the Signstek MESR-100 V2, the bottom line is clear: this compact in-circuit ESR meter is aimed at hobbyists, technicians and repairers who need a fast, inexpensive way to identify bad capacitors and check low resistance on boards. The unit's standout feature is its auto-ranging ESR and low ohm measurement, which simplifies on-board tests without removing components. It is not a laboratory-grade instrument, but it delivers practical diagnostics, a printed ESR reference and a quick workflow for troubleshooting amplifiers, power supplies and general electronics repairs.

Key Features

• Dual terminal design: lets a user clamp or probe a component quickly for fast in-circuit inspection without complex setup.
• Auto-ranging ESR: automatically selects the correct measurement range so users can focus on diagnosing components instead of adjusting settings.
• Wide measurement range: covers low ohm values up to 100R so it handles both ESR checks and basic resistance tests in circuits.
• Printed ESR table: built-in reference speeds evaluation by matching measured ESR against typical capacitor size expectations.
• Fast capacitor/resistor checks: designed for rapid screening of multiple components during repair sessions, saving time over full desolder and bench tests.

Who It's For

The Signstek MESR-100 V2 suits electronics hobbyists, entry-level technicians and home repairers who need a portable, affordable tool for spotting failed electrolytic capacitors and verifying low resistance links on PCBs. Its simplicity and printed reference make it practical for bench repair of audio gear, power supplies and consumer electronics.

Those needing laboratory precision, calibrated measurements for professional service centers, or long probe leads for awkward component locations should look elsewhere; some users report mixed accuracy and the short lead length can limit reach on larger chassis or tightly packed boards.

Pros & Cons

Pros

• Clear benefit for quick in-circuit capacitor detection and basic resistance checks without desoldering.
• Auto-ranging function reduces setup time and user error during routine diagnostics.
• Printed ESR table and dual terminals improve workflow for repetitive checks and comparisons.
• Good value for money for hobby and light professional use, helping save repair costs.

Cons

• Some users report mixed accuracy and occasional inconsistent readings compared with precision bench meters.
• Lead length is short, which can make probing components in large enclosures or tight spaces awkward.

Specifications

Product	MESR-100 V2 ESR Meter Capacitor Tester
Measurement types	ESR (in-circuit) and low resistance
Range	Wide measurement range up to 100R
Function	Auto-ranging capacitor ESR and low ohm meter
Terminals	Dual terminal for fast inspection
Included reference	Printed ESR table for quick checks

Our Verdict

The Signstek MESR-100 V2 is a practical, affordable diagnostic tool for anyone who needs to screen capacitors and check low resistance on boards quickly. It offers useful features like auto-ranging and a printed ESR table that speed routine repairs, though users seeking precision lab measurement or longer leads should consider higher-end alternatives. For hobbyists and small repair tasks it represents solid value and convenience.

Frequently Asked Questions

Can this meter test capacitors in-circuit?
Yes, the MESR-100 V2 is designed for in-circuit ESR checks so many capacitors can be evaluated without desoldering.

Does it require manual range selection?
No, the unit uses auto-ranging for ESR and low ohm measurements to simplify use.

Are the leads long enough for all repairs?
Leads are short and some users find the length limiting for large enclosures or hard-to-reach components; using external long probes may help.
