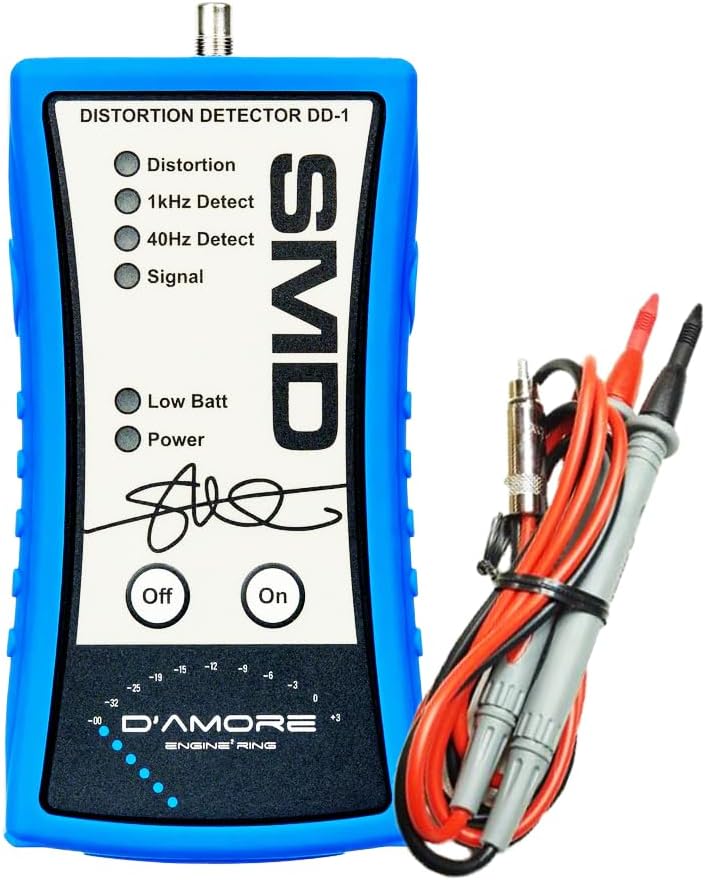

SMD Distortion Detector DD-1 - Fast, Accurate Amp Tuning

Our review of the SMD Distortion Detector DD-1 finds it best suited for installers and serious audio hobbyists who need a straightforward, reliable way to set amplifier gain and spot clipped signals. The single biggest reason to buy is its all-analog detection circuitry that reports distortion immediately and without digital processing lag, so an installer can match source output to amplifier input quickly and with confidence. It is a practical tool for diagnosing distortion and protecting speakers and amplifiers during system setup.

Key Features

• 100% analog circuitry: The purely analog design provides immediate, predictable detection of distortion without relying on software or sampling artifacts.
• Wide operating range: It accepts input signals from 1.2 vrms to 125 vrms, making it compatible with a broad range of consumer and professional source levels.
• High power handling equivalence: Rated up to an equivalent of 15,000 watts at 1 ohm for detection range, enabling use with very high-power amplifier systems during setup.
• Low trigger threshold: The distortion detector triggers at levels greater than 1.0% harmonic distortion so installers can catch barely audible clipping before damage occurs.
• Signal present LED: A 750 mvrms LED indicator confirms signal presence so users know when the device is receiving an input to analyze.

Who It's For

The DD-1 is aimed at car audio installers, home theater technicians, and advanced hobbyists who tune amplifiers and want a dependable, easy-to-read way to eliminate distortion and set gain correctly. Its analog detection and simple indicators make it particularly useful when speed and reliability matter during multiple installs.

Less technical users who expect a multifunction meter with digital readouts or an oscilloscope display may prefer a different instrument; the DD-1 is a focused tool for distortion detection and gain matching rather than a general-purpose audio analyzer.

Pros & Cons

Pros

• Accurate distortion detection thanks to its 100% analog circuitry.
• Wide input operating range supports many source levels and amplifier setups.
• Simple signal present LED and clear trigger behavior makes tuning fast and repeatable.

Cons

• Not a full-featured oscilloscope or digital analyzer, so it lacks waveform display and logging.
• Requires the user to understand gain staging and amplifier basics to get the best results.

Specifications

Our Verdict

The SMD DD-1 is a pragmatic, well built distortion detector that excel at its single job: helping installers set amplifier gain and avoid clipping. For anyone who needs a quick, reliable method to tune amps and protect speakers, the DD-1 offers strong value thanks to its proven analog design and wide input range.

Frequently Asked Questions

Can this detect very low levels of clipping?
The DD-1 triggers at distortion levels greater than 1.0% harmonic distortion, so it will catch low but meaningful clipping during setup.

What inputs does it accept?
It accepts input signals in the range of 1.2 vrms to 125 vrms and indicates signal presence at 750 mvrms.

Is it a replacement for an oscilloscope?
No, it is a focused distortion detector and gain-setting tool rather than a full oscilloscope with waveform display.
