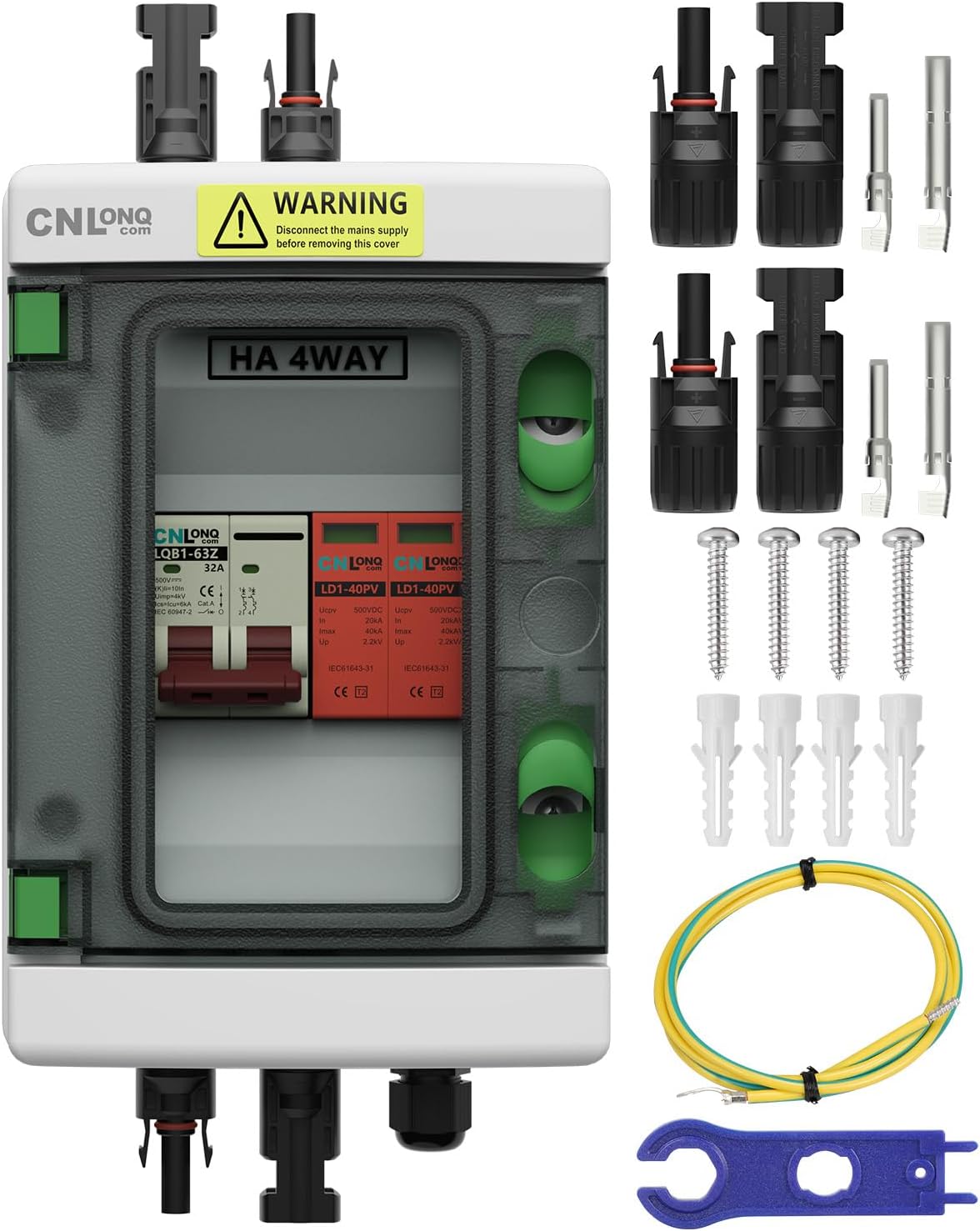

Solar Disconnect Switch 32A DC 500V with Surge Protector - Outdoor

In this review the Solar Disconnect Switch 32 Amp DC 500V is judged on durability and protection for small to mid-size PV arrays. The bottom line: installers and DIYers who need a compact, plug-and-play protective module will appreciate its combined circuit breaker and T2 surge protector inside an IP65 junction box. It is especially useful where a simple, weatherproof disconnect with visual status and MC4-style connectors speeds installation and reduces trips to the panel.

Key Features

• Circuit breaker: Protects DC circuits up to 32A at 500V with short-circuit and overload protection so the array is isolated quickly when a fault occurs.
• Removable surge module: The T2 surge protector with a 20kA/40kA rating has a removable module and red indicator that shows when the protector needs replacement.
• IP65 enclosure: The PC+ABS shell is waterproof, dustproof and UV resistant, keeping components dry and visible through the transparent window in outdoor conditions.
• Plug-and-play connectors: Photovoltaic male and female connectors make it straightforward to connect to existing PV strings without additional crimping or adapters.
• Flexible wiring: The breaker accepts wiring in either direction (top in/bottom out or bottom in/top out), simplifying routing in tight installs.

Who It's For

This unit is a practical choice for homeowners, RV owners, and small commercial installers who need a compact overcurrent and surge protection point right at the solar string. It suits grid-tied and off-grid systems where a localized disconnect and T2 protection reduce the burden on downstream equipment.

It is less appropriate for large commercial arrays that require higher amp ratings, integrated monitoring systems, or custom surge coordination beyond a single replaceable T2 module. Buyers seeking a heavy-duty metal enclosure or factory-integrated multi-function combiner may want to consider other options.

Pros & Cons

Pros

• Combines a 32A DC breaker and a replaceable T2 surge protector for compact protection at the string level.
• IP65-rated PC+ABS junction box with transparent window keeps components visible and protected outdoors.
• Plug-and-play photovoltaic connectors simplify installation and reduce tooling needs.
• Flexible wiring orientation speeds placement and routing in constrained spaces.

Cons

• Enclosure door quality received mixed reviews and may be less robust than metal alternatives for very harsh use.
• The 32A/500V rating limits use to small to mid-size strings; larger systems need higher-capacity devices.

Specifications

Type	Solar disconnect switch with surge protector
Maximum DC voltage	DC 500V
Maximum current	32A
Surge protector rating	T2 20kA/40kA 2P
Enclosure rating	IP65, PC+ABS
Connectors	Photovoltaic plug-and-play male/female

Our Verdict

For small solar installations and portable systems this disconnect switch offers a tidy balance of safety and convenience, combining overcurrent protection and a user-replaceable surge module in a weatherproof housing. It represents good value where a compact, easy-to-install protective point is needed, but those needing heavier-duty enclosures or higher ampacity should look elsewhere.

Frequently Asked Questions

Can this be used outdoors?
Yes, the unit is housed in an IP65 PC+ABS enclosure that is waterproof, dustproof and UV resistant for outdoor mounting.

What happens when the surge module fails?
The surge protector uses a removable module with a visible red indicator to signal that replacement is needed, allowing field service without replacing the whole unit.

Does wiring require polarity?
No, the breaker supports wiring without polarity and allows top in/bottom out or bottom in/top out orientations for flexible installation.
