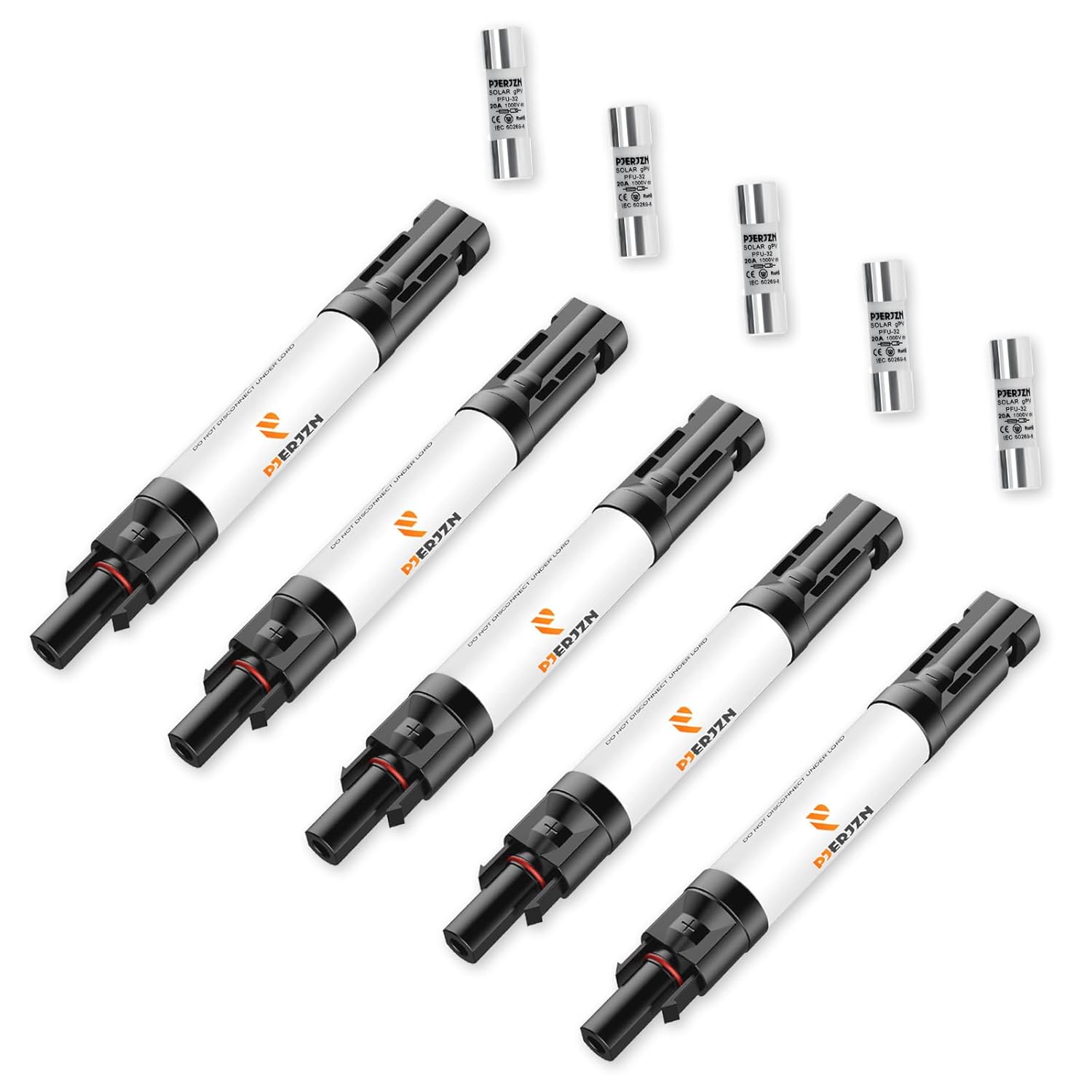

Solar Fuse Holder Inline 20A 1000V IP67 Fuse Connector - Durable

In this review of the Solar Fuse Holder Inline 20A 1000V IP67, the bottom line is simple: this inline fuse connector is aimed at DIY solar installers and small commercial PV systems that need a durable, weatherproof overcurrent protection point. The reviewer found the unit's IP67 waterproof seal and upgraded PC/PPO insulation the single biggest reason to buy, since they provide long-term resistance to UV, rain and temperature swings from -40 to +105 C, making it a dependable add-on for rooftop and ground-mounted arrays.

Key Features

• IP67 Waterproof: A waterproof ring and sealed connections prevent corrosion and ingress, helping the fuse holder survive external mounting and harsh weather.
• High-Quality Insulation: The PC/PPO shell offers UL94-V0 flame resistance and low resistance under 5 m, improving safety in inline installations.
• Wide Temperature Range: Rated from -40 to +105 C, the housing endures large temperature swings common on rooftops and in exposed solar sites.
• Standard Connectors: Quick connect/disconnect terminals with automatic locking make installation straightforward and reduce connection failures.
• Robust Conductors: Copper with tin plating and a 100 N tensile resistance ensures reliable current flow and mechanical durability under strain.
• Consumer Support: The manufacturer offers product warranties and a 24-hour response promise for quality issues, easing post-sale concerns.

Who It's For

This fuse holder suits homeowners adding protection to parallel strings, RV or boat solar systems, and small commercial installations needing a compact inline fuse rated at 20 A and 1000 V. Installers who value long-term outdoor performance will appreciate the UV-resistant PPO material and waterproof sealing.

It is not designed for large utility-scale arrays that require higher amp ratings or for applications needing specialized fuse types beyond a 20 A inline fuse. Buyers who need integrated monitoring or fuse holders with higher current capacity should look elsewhere.

Pros & Cons

Pros

• Durable IP67 sealing and UV-resistant PPO insulation extend service life outdoors.
• Easy installation with standard quick-connect terminals and automatic locking.
• Low electrical resistance and tin-plated copper conductor for reliable current flow.
• Wide operating temperature window supports extreme environments.

Cons

• Limited to a 20 A rating, so it is not suitable where higher fuse currents are required.
• Inline form factor offers no integrated monitoring or indication of fuse status.

Specifications

Rated current	20 A
Rated voltage	1000 V
Cable section area	1 x 2.5~6 mm2
Tensile resistance	100 N
Test voltage	6000 V (50 Hz, 1 min)
Insulation material	PC / PPO
Conductor	Copper, tin plated

Our Verdict

The Solar Fuse Holder Inline 20A 1000V IP67 is a practical, value-focused accessory for small to mid-size solar installations that need a weatherproof inline fuse solution. Its combination of IP67 waterproofing, flame-resistant insulation and simple connectors delivers reliable protection for rooftop or exposed arrays at a modest price, making it a sensible buy for installers who need durable, no-frills overcurrent protection.

Frequently Asked Questions

Can this fuse holder be used outdoors?
Yes. The IP67 waterproof rating and UV-resistant PPO housing are designed for outdoor exposures like rooftops and ground mounts.

What fuse rating does it accept?
It is rated for a 20 A fuse at up to 1000 V DC, suitable for protecting small PV strings or parallel panel connections.

Is installation difficult for a homeowner?
No. Standard quick-connect terminals and automatic locking make installation straightforward for anyone comfortable with basic DC wiring.
