Solar Panel Extension Cable 10AWG 25FT PV Wire - Heavy Duty

In this review the focus is on a practical, heavy duty 10AWG solar extension cable set that targets DIY installers and mobile power users who need reliable, long-run wiring. The bottom line: this pair of 25 ft cables (one red, one black) stood out for its thicker 10AWG tinned copper conductor and robust insulation, which together deliver lower resistance and better durability than thinner wires, making it a sensible choice for high-wattage panels on RVs, boats, or small home systems.

Key Features

• 10AWG tinned copper wire: The premium tinned copper core maximizes current flow and reduces voltage drop for higher-power panels and longer runs.
• Double insulation XLPE: Cross-linked polyethylene insulation resists UV, chemicals, abrasion, and wide temperatures so the cable can last outdoors without degrading quickly.
• High temperature and voltage rating: Rated to operate from -40F to 248F and withstand up to 1800V DC, which is suitable for many photovoltaic installations.
• IP68 waterproof connectors: Male and female connectors with PPO housings and silicone seals keep connections dry in heavy rain and pressure wash conditions.
• Flexible and easy to work with: The cable is pliable enough for routing on roofs, in RV compartments, and for soldering or cutting to fit custom runs.

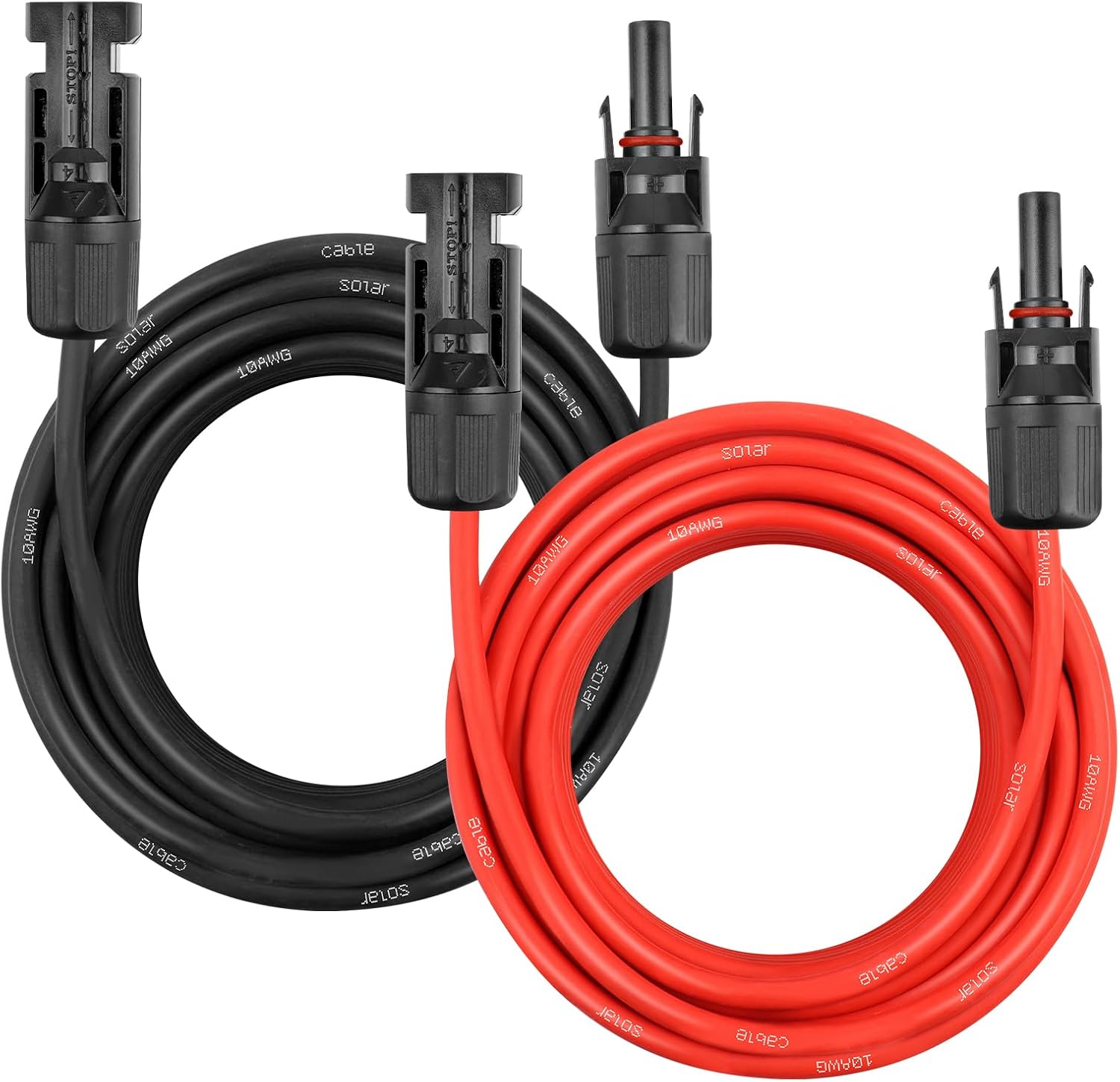

• Complete pair included: Comes as one 25 ft red and one 25 ft black cable terminated with matched waterproof connectors for immediate use.

Who It's For

This cable set is aimed at homeowners, RV owners, boaters, and installers who need a reliable 10 gauge extension for solar panels and small off-grid systems. It is especially useful when panels are distant from the charge controller or when a more robust conductor than 12AWG is desired to reduce losses on higher-wattage arrays.

Those building large commercial arrays or needing specialized connectors beyond standard MC4-style waterproof plugs should evaluate system compatibility first. If an installer requires custom factory crimped ends or thicker conductors than 10AWG, a different product may be a better fit.

Pros & Cons

Pros

• Thicker 10AWG tinned copper provides lower resistance and improved current capacity over 12AWG alternatives.
• XLPE double insulation offers strong UV and temperature resistance for long outdoor life.
• IP68-rated waterproof connectors maintain a stable connection in wet conditions and heavy weather.
• Supplied as a matched red and black 25 ft pair ready to install.

Cons

• Only one length option is included here, so installers needing other run lengths must splice or buy additional cable.
• Not designed for high-voltage commercial arrays that may require different conductor sizing or terminations.

Specifications

Conductor	10AWG tinned copper
Length	25 ft per cable (one red, one black)
Insulation	Double XLPE (Cross-Linked Polyethylene)
Temperature range	-40F to 248F (-40C to 120C)
Rated voltage	1800V DC
Connector rating	IP68 waterproof with PPO housings and silicone seals

Our Verdict

The 10AWG 25 ft solar extension cable pair is a practical, cost-effective upgrade for residential and mobile solar setups where lower voltage drop and weather resistance matter. It delivers durable insulation, waterproof connectors, and adequate temperature and voltage ratings, making it a good value for RV owners, boaters, and DIY solar installers who need reliable, middle-distance runs.

Frequently Asked Questions

Are the connectors waterproof?
Yes, the male and female connectors use military-grade PPO housings and silicone seals rated to IP68 to keep connections dry.

Can these cables be spliced or soldered?
Yes, the tinned copper conductor is flexible and easy to solder or cut for splicing, though proper waterproofing should be applied at splices.

Are these cables suitable for rooftop solar and RV use?
Yes, the XLPE insulation, temperature range, and IP68 connectors make them suitable for rooftop, RV, boat, and similar outdoor solar installations.
