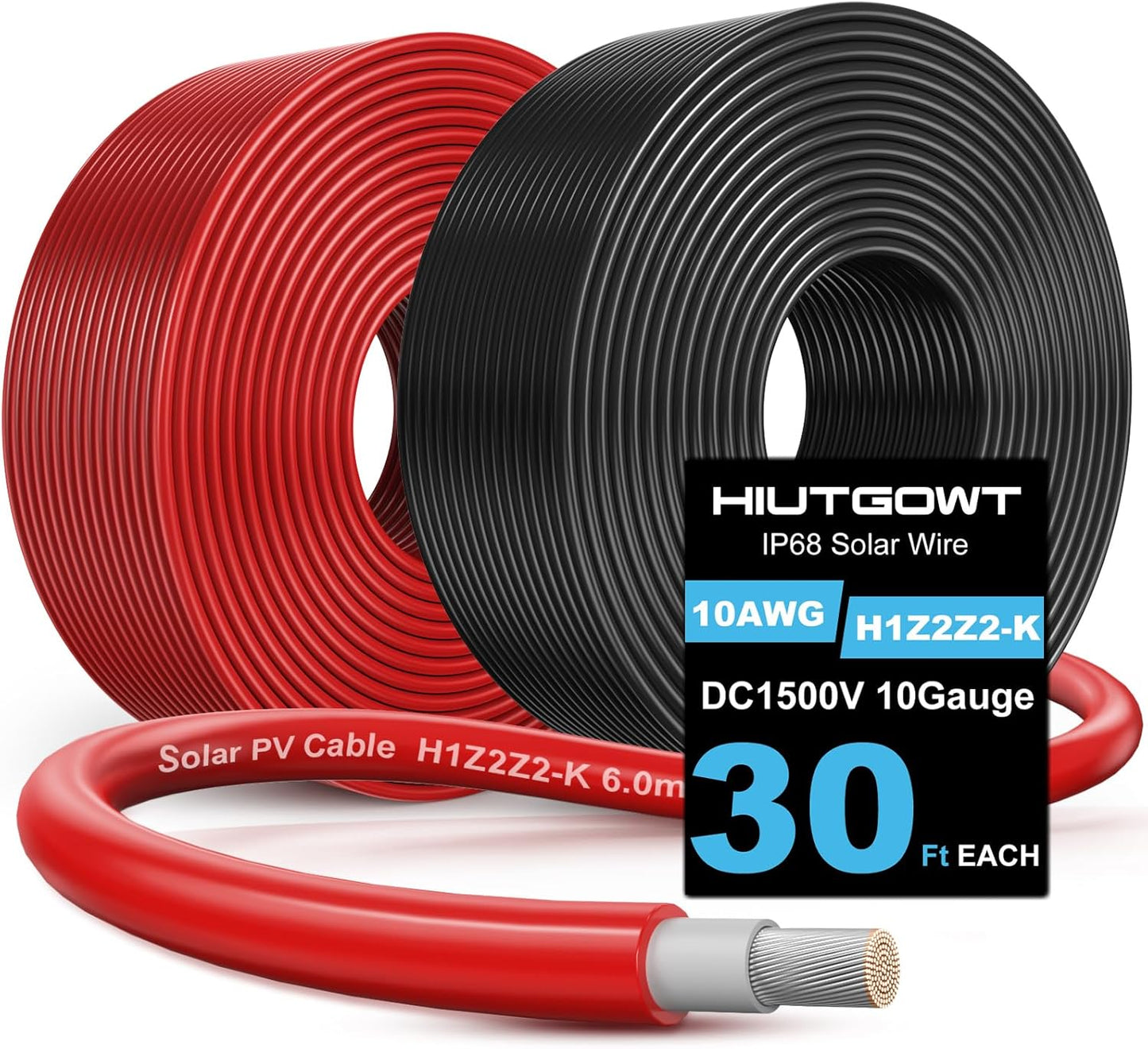

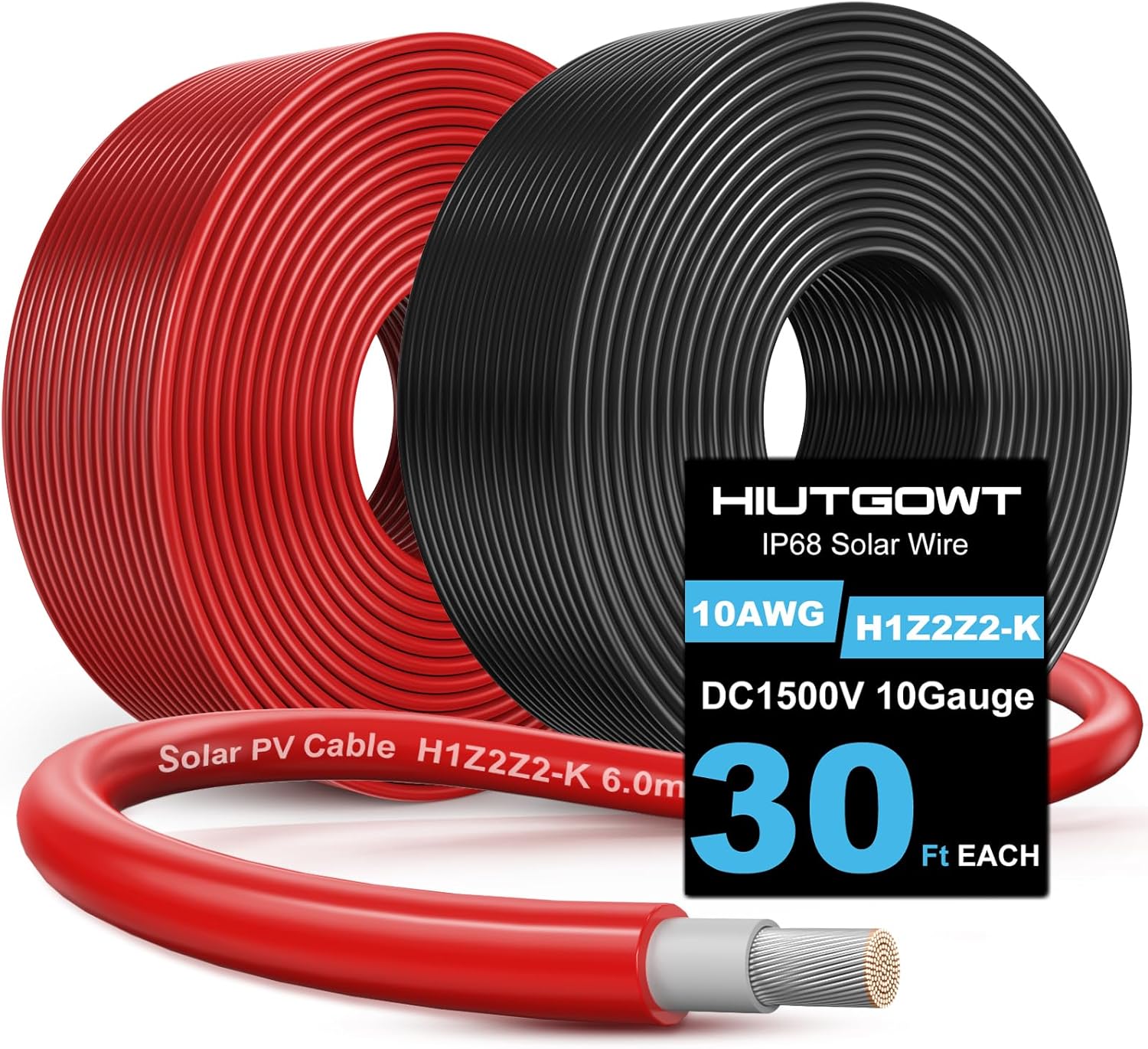

Solar Panel Wire 30Ft 10AWG Solar Cable - Durable Tinned Copper

In this review the Solar Panel Wire 30Ft 10AWG is judged as a practical, heavy-duty extension cable for small to mid-size photovoltaic setups; it is best for homeowners, RV owners and marine users who need a reliable 30 ft run and want minimal power loss. The single biggest reason to buy is the wire construction: 100% tin-coated pure copper conductors combined with a dual XLPE/XLPO sheath that promises long-term resistance to heat, cold and UV exposure, making it a solid choice where durability and conductivity matter.

Key Features

• Tinned copper conductor: The tin-coated pure copper core reduces contact resistance and helps minimize power loss across the 30 ft run.
• Dual XLPE/XLPO sheath: The double-layer insulation increases resistance to high and low temperatures, UV and corrosion, extending outdoor service life.
• Wide temperature range: Rated to work from -40F to 194F, the cable remains stable in extreme heat and cold compared with standard PVC alternatives.
• High voltage and current: The cable supports up to 1500V DC (DC1500V) and a rated current around 40A, suitable for many residential PV strings and inverters.
• IP68 waterproof and flexible: The waterproof rating and good flexibility make routing and outdoor installations easier in wet or confined locations.
• Certifications and durability: Professional 10 AWG PV wire with TUV and CE marks and an expected service life that can approach 25 years under proper use.

Who It's For

This cable is aimed at DIY homeowners wiring rooftop panels, RV and boat owners adding solar, and installers needing a reliable 30 ft 10 AWG run with strong environmental protection. The tinned copper and dual-sheath design suit outdoor and marine environments where corrosion and UV exposure are concerns.

Those who should look elsewhere include users with runs much longer than 30 ft who may need larger gauge cable for voltage drop, and projects that require factory-terminated connectors or custom assembly services rather than raw cable.

Pros & Cons

Pros

• High-quality tinned copper reduces contact resistance and improves long-term conductivity.
• Dual XLPE/XLPO insulation provides fire resistance, UV stability and extended temperature tolerance.
• IP68 waterproofing and flexibility simplify outdoor installations on roofs, RVs and boats.
• Suitable electrical ratings for many residential PV systems with 40A current capacity and high DC voltage rating.

Cons

• Sold as bare cable lengths; users needing pre-crimped MC4 connectors will need to terminate the cable separately.

Specifications

Conductor	Tinned pure copper
Gauge / Cross-section	10 AWG / 6 mm2
Length	30 ft (one red and one black included)
Temperature range	-40F to 194F (-40C to 90C)
Voltage rating	DC1500V (max 1800V DC), AC1000V
Current rating	Approx. 40A
Environmental ratings	IP68 waterproof, UL94 V-0 flame retardant

Our Verdict

The Solar Panel Wire 30Ft 10AWG is a practical, value-minded choice for homeowners and mobile users who need a durable 30 ft PV cable with excellent environmental resistance and solid conductivity. It is good value for people who will terminate cables themselves and want a long-lived, flexible 10 gauge tinned copper solution for rooftop, RV or marine solar installations.

Frequently Asked Questions

Does this cable come with both polarities?
Yes, the set includes one red and one black 30 ft length so you get both positive and negative conductors for a PV run.

Can this wire be used outdoors year-round?
Yes, the dual XLPE/XLPO sheath, IP68 waterproofing and wide -40F to 194F range are designed for long-term outdoor use, including roof, RV and marine installations.

Will I need extra parts to connect panels?
You will need appropriate connectors or crimped terminals (for example MC4-compatible connectors) if you require plug-and-play panel connections, since the product is supplied as bare cable lengths.
