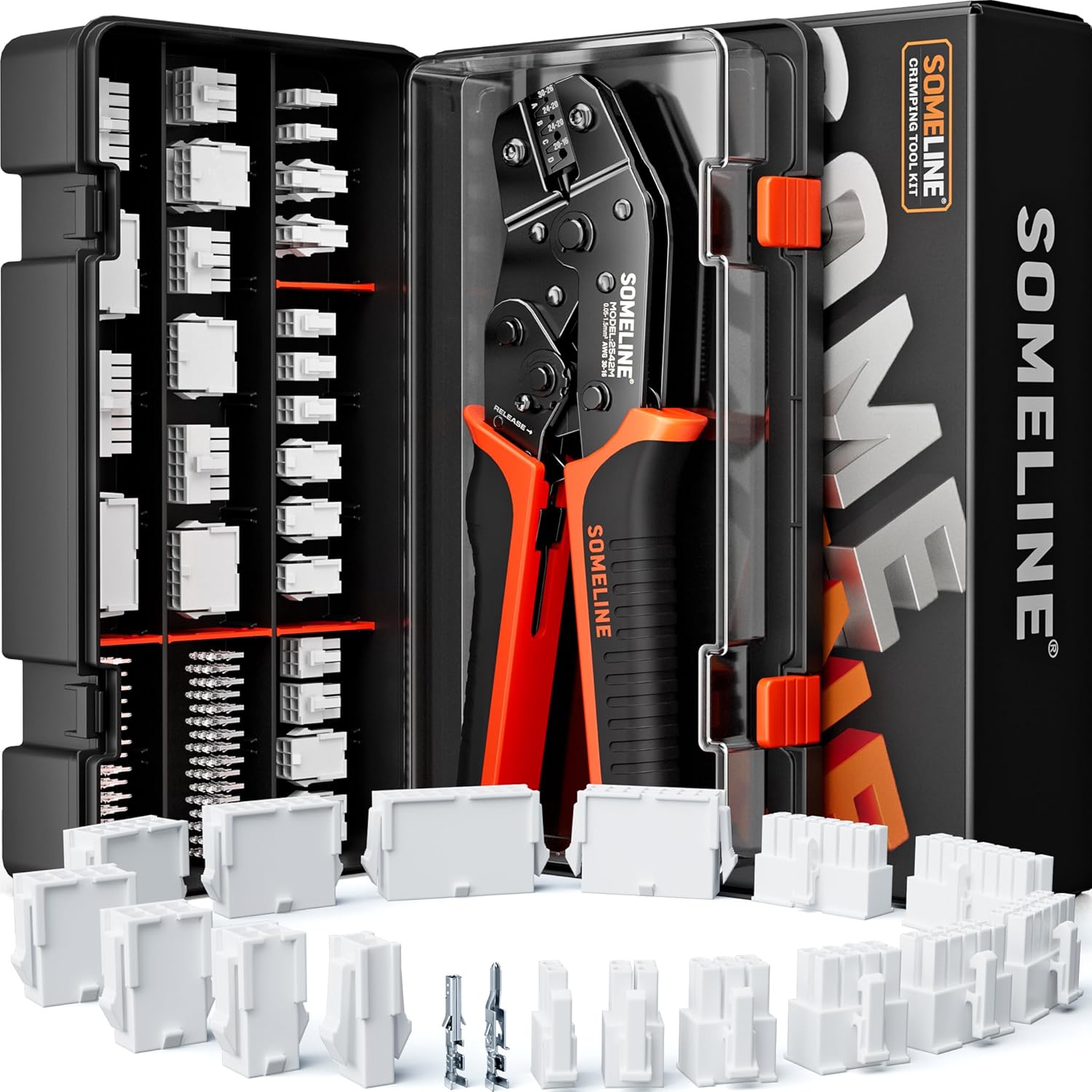

SOMELINE Crimping Tool Connector Kit for Mini-Fit Jr

The SOMELINE Crimping Tool Connector Kit is an essential tool for anyone working with Mini-Fit Jr connectors. Designed for precision, this crimping tool is compatible with 4.2mm pitch connectors, making it ideal for crimping 24-16 AWG terminals. The crimping die is meticulously crafted to ensure a perfect crimp of both the conductor and insulation layer, resulting in a professional B-type crimp that guarantees maximum mechanical strength and optimal conductivity.

One of the standout features of this crimping tool is its compatibility with a variety of connectors. It works seamlessly with Molex Mini-Fit Jr series and Standard .062in series terminals, as well as Dupont 2.54mm and KF2510 connector terminals. This versatility makes it a valuable addition to any toolkit, especially for those who frequently work with different types of connectors.

The kit includes 18 types of connectors, ranging from 2 to 16 circuits, all housed in a durable nylon 66 (PA66) casing that meets UL94V-0 flame retardant standards. This ensures that the connectors can withstand a wide operating temperature range of -40 to +105C, making them suitable for various applications, including automotive and industrial environments.

When it comes to carrying higher current, the 24-16 AWG terminals in this kit are made of tin-plated brass, which enhances mechanical strength and conductivity. This feature allows for the use of 16 AWG wire, which is commonly utilized in PC power supplies (ATX/PCIe), automotive electrical systems, LED drivers, and industrial control applications. The ability to handle higher currents with lower heat generation ensures higher reliability in power supply scenarios.

Applications for the SOMELINE Crimping Tool are extensive. It is suitable for power, wire-to-board, and wire-to-wire connections, making it widely used in computers, industrial automation, automotive electronics, and consumer electronics. The tool supports multiple pin counts and medium to high currents, ensuring reliable power and signal connections across various devices.

Additionally, the crimping pliers feature an efficient ratchet mechanism that provides consistent crimping force. The adjustable crimping force allows users to customize the tool's performance based on their specific needs. The quick release function and ergonomic non-slip handles further enhance usability, making crimping tasks easier and more efficient.

In summary, the SOMELINE Crimping Tool Connector Kit is a robust and versatile tool that meets the demands of both professionals and hobbyists. With its precision design, compatibility with a wide range of connectors, and ability to handle higher currents, this crimping tool is a must-have for anyone looking to achieve reliable and efficient connections.
