Square HGW20-75 in Linear Guideway Rail Kit - Precision CNC Motion

In this review of the Square HGW20-75 in Linear Guideway Rail Kit the bottom line is clear: this kit is aimed at hobbyists and small shop CNC builders who need a rigid, high-load linear guide that is easy to fit and maintain. The kit includes a 75 in / 1905mm HGW20 rail and two HGW20CA flange carriage blocks, and it stands out for its hardened high-carbon steel rail, Goethe-style four-point contact design and thicker bearing steel in the flange blocks. If you need a durable, low-friction rail set that tolerates assembly errors and long service life, this is a strong, practical choice.

Key Features

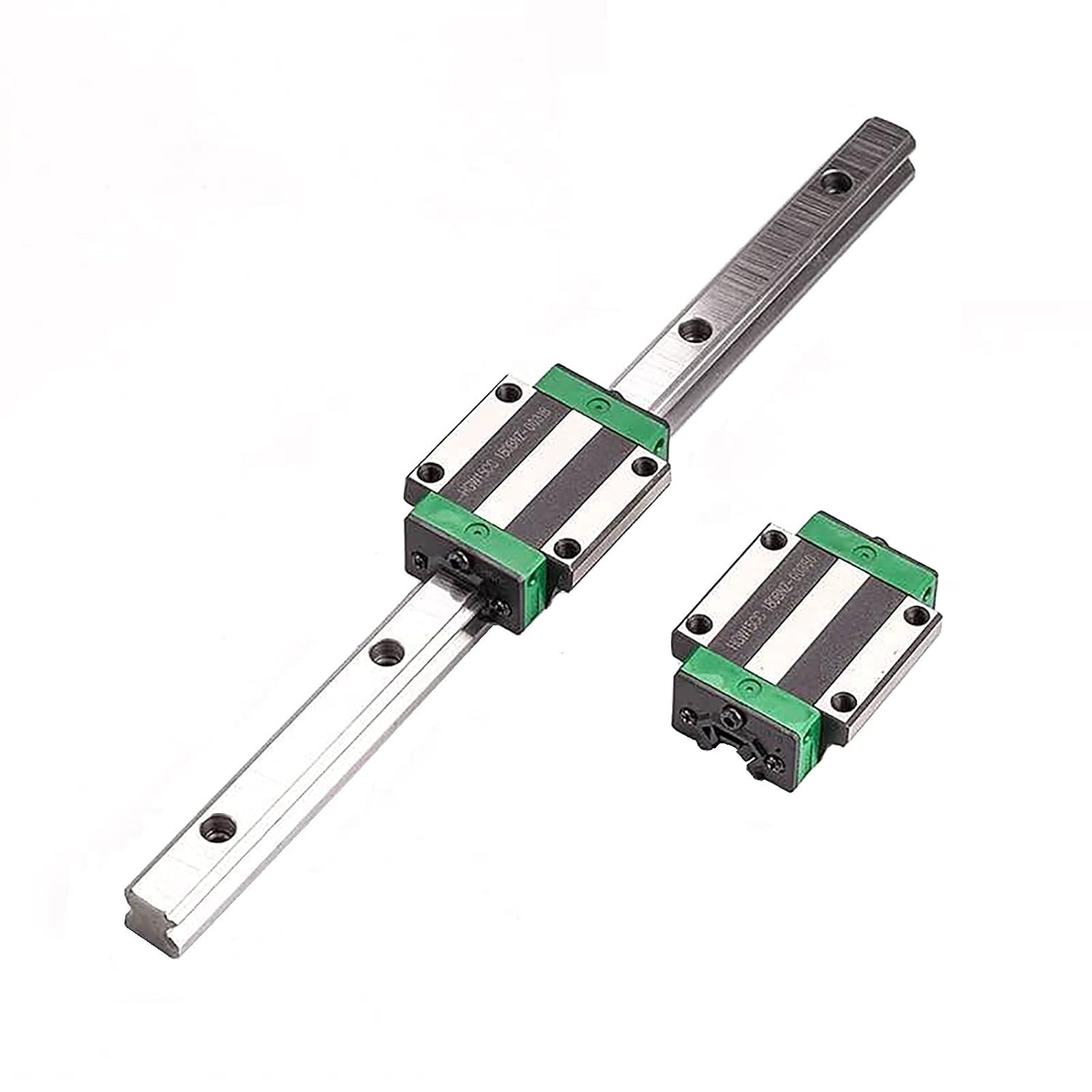

• Complete kit: Includes one 1905mm HGW20 guide rail and two HGW20CA flange carriage blocks for immediate installation on a CNC or DIY motion stage.
• Hardened rail construction: The guide rail is made of high-carbon steel with quenching and tempering for strong bending resistance and long-term wear resistance.
• Four-point contact design: The Goethe-style contact geometry spreads load evenly in all directions and provides a self-aligning function to absorb mounting surface assembly error.
• Durable flange blocks: HGW20CA carriage sliders use thickened bearing steel and more steel balls to reduce friction and increase load capacity and service life.
• Interchangeable sizing: The kit is compatible with other square 20mm linear rail systems and can be ordered in custom lengths or spliced for lengths beyond 2950mm.

Who It's For

The kit is best for CNC hobbyists, small machine shops and DIY fabricators who need a robust 20mm square linear guide for router tables, gantries, linear axes and other motion-critical fixtures. Its flange carriages simplify mounting when through-holes or face mounting is preferred, and the hardened rail helps in applications that see repeated load and sliding wear.

It is less suitable for applications that require factory-certified lubrication intervals, sealed environments against heavy contamination, or where integrated motorized carriages with encoders are required; those users should look at specialized sealed or motorized linear motion systems instead.

Pros & Cons

Pros

• Solid construction with hardened high-carbon steel rail for long wear life.
• Flange HGW20CA blocks provide easy, repeatable mounting and higher load resistance.
• Four-point Goethe-style contact offers even load distribution and self-alignment.
• Custom lengths and splicing option make the system flexible for larger builds.

Cons

• Not a sealed unit; maintenance with #46 grease is required for best longevity in dusty environments.
• Does not include extra carriage blocks or end seals, which some larger projects may require.

Specifications

Our Verdict

This HGW20-75 in kit is a practical, value-minded choice for builders who need a sturdy, low-friction 20mm square linear guide for CNC or DIY motion stages. The hardened rail and flange carriages deliver dependable stiffness and load capacity, and the option for custom lengths or splicing adds flexibility. Buy it if you want a durable, serviceable rail set for precision linear motion without specialty sealed hardware.

Frequently Asked Questions

Can this rail be ordered in other lengths?
Yes, the manufacturer offers custom lengths and splicing for total lengths beyond 2950mm; contact the seller for length options.

What maintenance does the rail require?
Periodic lubrication with #46 grease is recommended to maintain smooth motion and prolong service life.

Are the carriage blocks interchangeable with other 20mm kits?
The kit is designed to be interchangeable with other square 20mm systems such as HGH/HGR 20 style guides in most installations.
