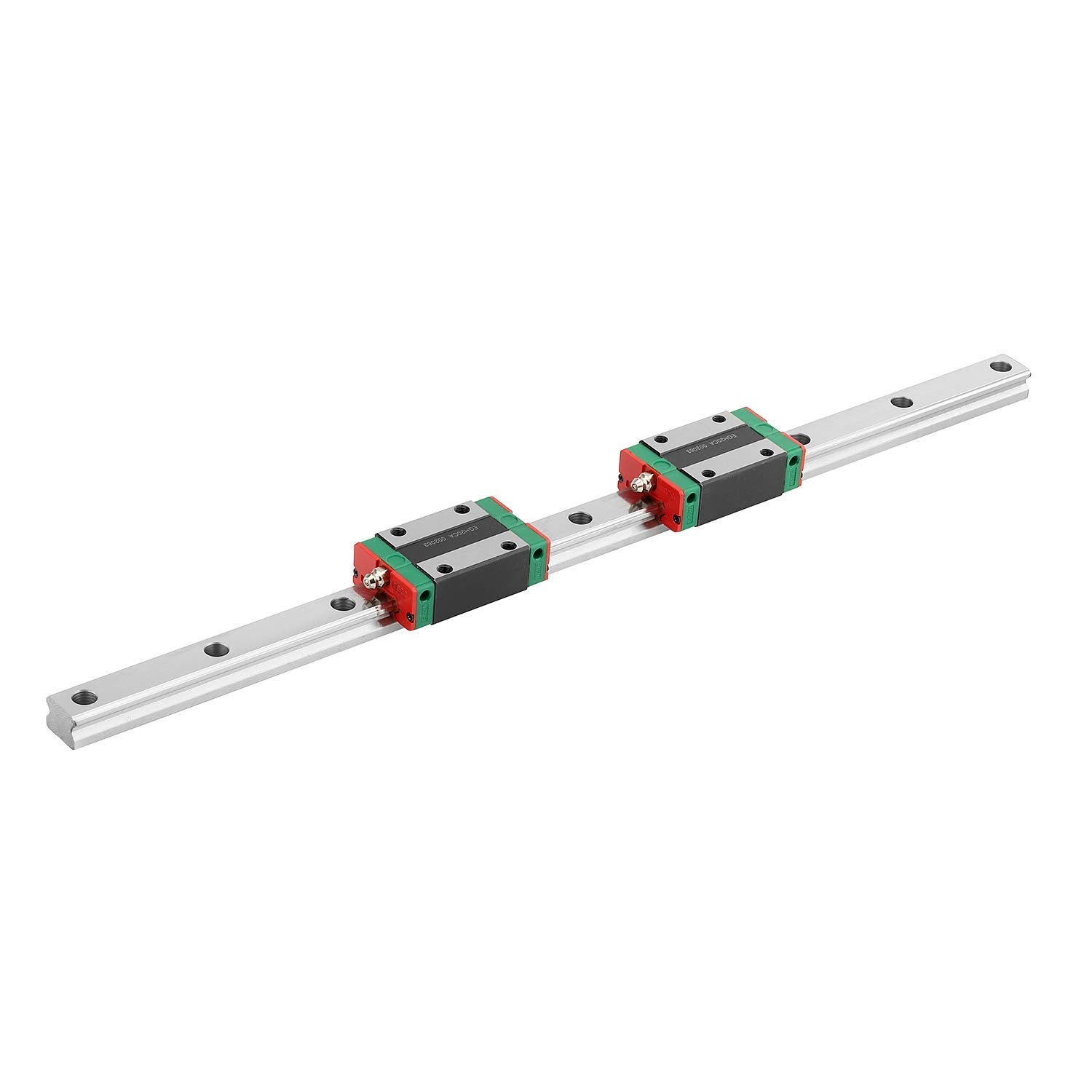

Square Linear Guideway Rail EGH20 21.26in + 2 EGH20-CA Sliders

In this review the Square Linear Guideway Rail EGH20 21.26in kit is evaluated for hobbyists and small-machine builders who need compact, accurate linear motion. The package combines a 540mm EGH20 square rail with two EGH20-CA carriage blocks, and the single biggest reason to consider it is the combination of smooth, low-friction motion and four-direction load support that simplifies alignment in tight CNC and robotic applications.

Key Features

• Small sound slider: Innovative slider technology produces quiet operation for workshops where noise matters.
• High accuracy: Manufactured to precise standards so the carriage follows a consistent trajectory for repeatable cuts and moves.
• Four-direction load support: The carriage is built to withstand loads from multiple directions, helpful on machines that apply side or moment loads.
• Self-aligning function: The block accommodates minor misalignment, reducing setup time during installation on DIY frames.
• Durable bending resistance: The rail and block resist deformation and twisting to maintain linear motion under load.
• Low maintenance: Smooth surfaces and compatibility with #46 grease make upkeep straightforward for occasional use.

Who It's For

This kit is best suited to hobby CNC builders, small precision machine projects, and technicians who need a compact 20mm square guide with carriage blocks for repeatable linear motion. It is a practical choice for semiconductor handling fixtures, PCB pick-and-place jigs, light robotic arms, and medical test rigs where compact, accurate slides are required.

Those who should look elsewhere include users needing very long rails beyond 540mm without a custom order, or heavy industrial systems that require larger series guides rated for heavy continuous loads. The product shines in small to medium load, precision-focused applications rather than high-capacity factory conveyors.

Pros & Cons

Pros

• Quiet, low-friction operation reduces noise in compact workspaces.
• Precise manufacturing gives reliable trajectory accuracy for repeatable tasks.
• Four-direction equal load capability and self-aligning design simplify installation and handling of off-axis loads.
• Easy maintenance with standard #46 grease keeps service simple for DIY use.

Cons

• Included rail length is 21.26in (540mm); longer lengths require contacting the seller for custom sizes.
• Not intended for heavy industrial loads where larger series guides are standard.

Specifications

Brand	Mssoomm
Model	EGH20
Rail width	20mm
Rail length	21.26in / 540mm
Included carriage blocks	2 pcs EGH20-CA
Maintenance recommendation	Use #46 grease
Application examples	CNC, PCB equipment, medical devices, robotic arms

Our Verdict

The EGH20 21.26in rail with two EGH20-CA blocks is a practical, value-oriented choice for makers and small-equipment builders who need compact, accurate linear motion. It balances quiet performance, multi-direction load support, and easy maintenance, making it a strong buy for precision hobby CNCs and light automation where the 540mm length is sufficient.

Frequently Asked Questions

Can I get this rail in other lengths?
Yes, the seller can supply EGH square rails in other lengths on request; contact them to specify a custom length.

What lubricant should I use?
#46 grease is recommended for routine maintenance to preserve smooth, low-friction operation.

Are the carriage blocks self-aligning?
Yes, the EGH20-CA blocks feature a self-aligning function and four-direction equal load characteristics for easier setup.
