Square Linear Guideway Rail HGH15 26.77 in - Precision CNC Rail

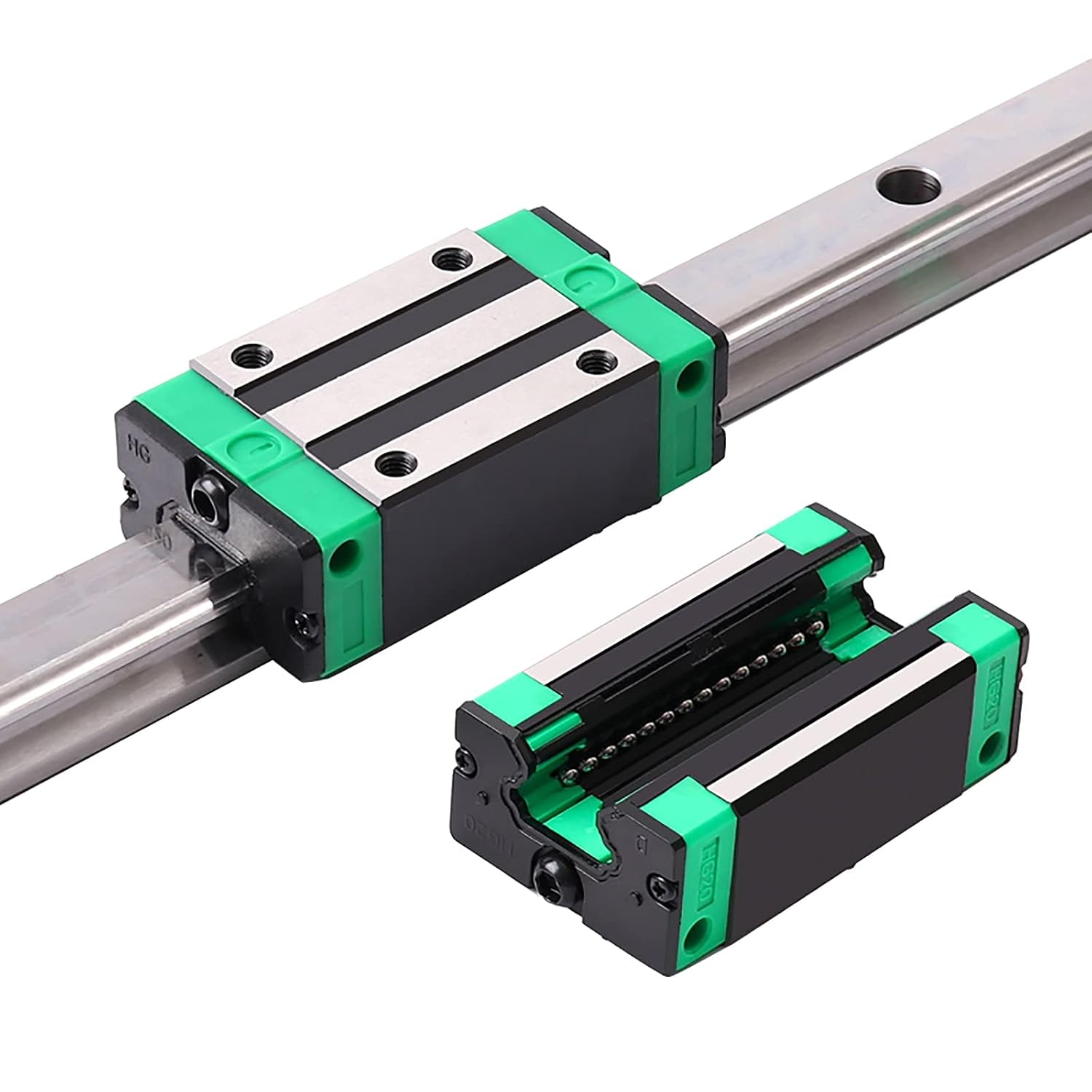

In this review the Square Linear Guideway Rail HGH15 26.77 in kit is evaluated for hobby CNC builders and light industrial users looking for a compact, square-type linear rail solution. The kit includes a 680mm HGH15 rail and two HGH15CA square carriage slider blocks, and the single biggest reason to consider it is the high-carbon steel construction with quenching and tempering that delivers long-term wear resistance and strong bending resistance for consistent linear motion.

Key Features

• High-carbon steel rail: The hardened rail offers strong bending resistance and resists deformation under repeated loads for stable motion.
• Goethe-style four-point contact: The carriage design distributes loads evenly in all directions and provides a degree of self-alignment for simpler assembly.
• HGH15CA square carriages: Thicker bearing steel and multiple steel balls reduce friction and produce smooth, low-resistance travel.
• Interchangeable sizing: The kit is compatible with other square linear rail kits and the manufacturer offers longer lengths or splicing for runs over 2950mm.
• Factory-direct availability: Directly sourced from the factory, the kit can be customized for mounting hole spacing and total length when needed.

Who It's For

This kit is best for DIY CNC builders, small machine shops, and makers who need a compact 15mm wide square guide with durable construction and predictable linear performance. It is particularly useful where space is limited and square carriages simplify alignment relative to gantry faces or carriage plates.

Those who need ultra-high precision optical positioning for semiconductor manufacturing or heavy industrial rails for multi-ton loads should look for larger series rails with higher rated load capacities; this HGH15 kit is tuned for light to medium duty motion and hobby to light-commercial applications.

Pros & Cons

Pros

• Durable high-carbon steel rail with quenching and tempering provides long service life.
• Four-point contact carriage delivers balanced load handling and partial self-alignment.
• Carriage blocks use hardened bearing steel and multiple balls for smooth, low-friction travel.
• Factory customization and available splicing for longer lengths make it flexible for different builds.

Cons

• Not intended for very heavy industrial loads; users requiring very large load ratings will need a larger profile rail.

Specifications

Our Verdict

The HGH15 680mm square linear guideway kit is a solid value for makers and small shops that need compact, reliable linear motion. Its hardened rail, four-point carriage design, and factory customization options make it a practical choice for CNC gantries and DIY projects that require smooth travel and resilience to wear.

Frequently Asked Questions

Can I get a longer rail than 680mm?
Yes, the manufacturer offers custom lengths and can splice rails for total lengths exceeding 2950mm.

What lubricant should I use?
Regular maintenance with #46 grease is recommended to preserve smooth motion and extend service life.

Are these carriages interchangeable with other square kits?
The kit is designed to be interchangeable with other square linear rail kits following the HGH15 standard, but confirm hole spacing if replacing existing parts.
