Square Linear Guideway Rail HGH20 22.05 in - Precision Rail Kit

In this review of the Square Linear Guideway Rail HGH20 22.05 in kit, the bottom line is simple: this set is aimed at CNC builders and DIY machinists who need a compact, sturdy linear motion solution with reliable load capacity and long wear life. The kit brings a single 560mm HGH20 rail and two HGH20CA square bearing carriages that are easy to assemble and interchangeable with other square rail systems, making it a practical choice when repeatable straight-line motion and durability matter most.

Key Features

• High-carbon steel rail: The guide rail is made of tempered high-carbon steel to resist wear and maintain straightness under repeated use.
• Four-point contact design: The Goethe-style four-point contact bearing design distributes loads evenly in all directions for stable motion under load.
• Self-aligning function: The carriage can absorb small mounting surface errors so the system runs smoothly without perfect alignment.
• Thickened bearing components: Carriage blocks use high-quality bearing steel and thicker material to increase durability and reduce damage in heavy use.
• Low friction slider balls: More steel bearing balls in the block reduce friction, producing light, flexible travel and longer service life.
• Custom lengths available: The manufacturer offers multiple lengths and splicing for runs longer than 2950mm, useful for larger projects.

Who It's For

This kit is best for hobbyists and small workshop CNC builders who need a reliable short-length linear guide that can be mounted into custom frames or retrofits. It suits projects where repeated linear accuracy and load distribution matter, such as router tables, small milling rigs, laser gantries, or precision DIY automation tasks.

Those who should look elsewhere include users needing sealed or fully preloaded rails for high-speed industrial automation or those requiring integrated lubrication systems; this kit is straightforward to maintain but does not include specialized seals or factory preloading options in the base package.

Pros & Cons

Pros

• Robust construction from quenching and tempering gives strong bending resistance and long wear life.
• Square HGH20CA carriages provide smooth, low-friction travel and are interchangeable with common square rail systems.
• Self-aligning four-point contact design handles multi-directional loads and compensates for minor mounting errors.
• Factory support and customizable lengths make it flexible for different project sizes.

Cons

• Basic kit does not include advanced seals or factory preloading for extreme high-speed industrial applications.

Specifications

Brand	Mssoomm
Model	HGH20
Rail width	20mm
Rail length	22.05 in / 560mm

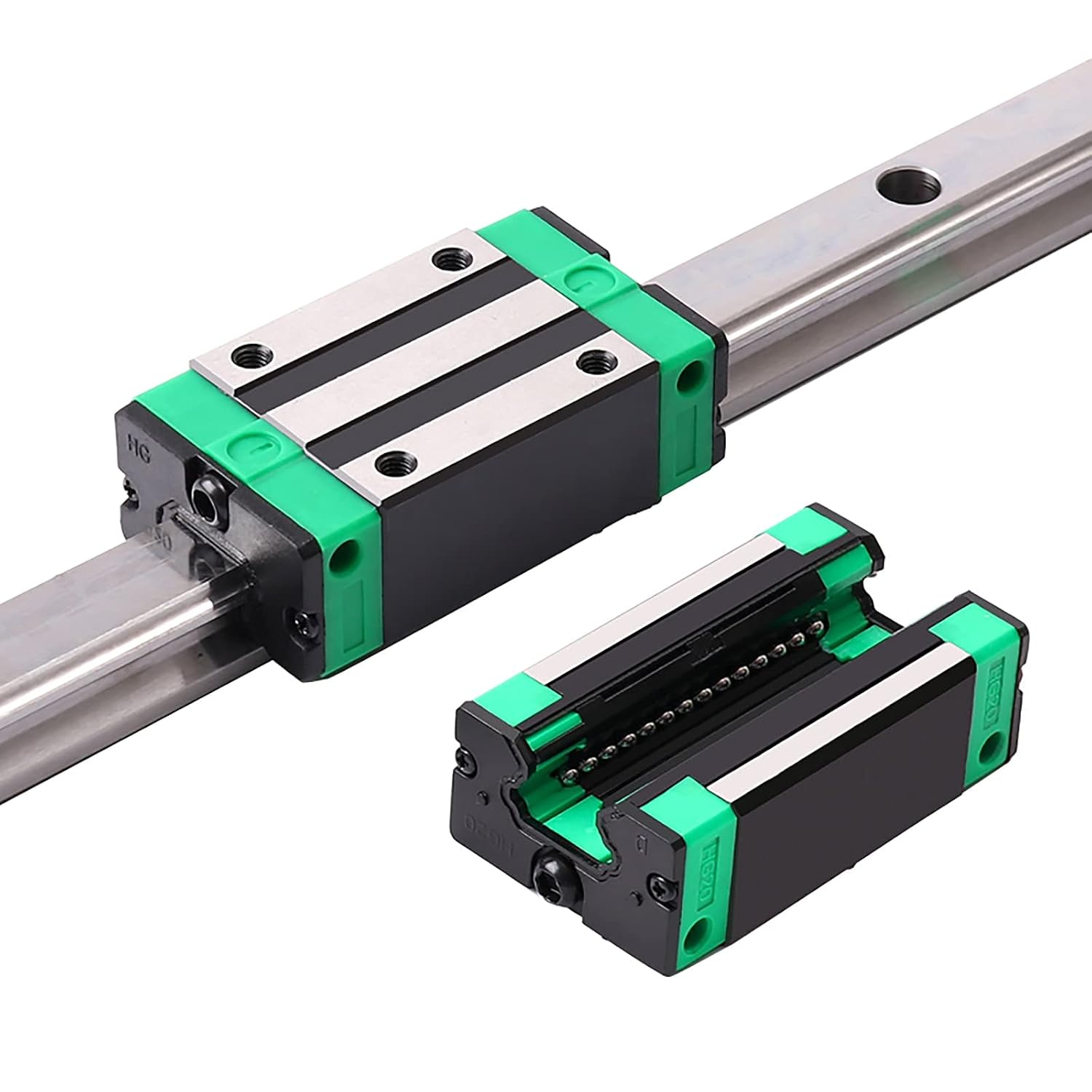

Included carriages	2 pcs HGH20CA square slider blocks
Material	High-carbon steel rail, bearing steel balls
Maintenance	Use #46 grease for routine maintenance

Our Verdict

The HGH20 22.05 in square linear guideway kit is a sensible, cost-effective choice for builders needing a short, durable linear rail with dependable load handling and easy interchangeability. For CNC hobbyists and small shop projects that prioritize precision and long-term wear resistance, this kit offers good value and flexibility thanks to solid materials and available customization.

Frequently Asked Questions

Can I get a longer rail length?
Yes, the manufacturer offers multiple lengths and can splice rails for runs exceeding 2950mm; contact them to specify total length and hole spacing.

What lubrication is recommended?
Routine maintenance is simple; #46 grease is recommended to maintain smooth performance.

Are the carriages interchangeable with other square rails?
Yes, the HGH20CA square slider blocks are designed to be interchangeable with other compatible square linear rail systems.
