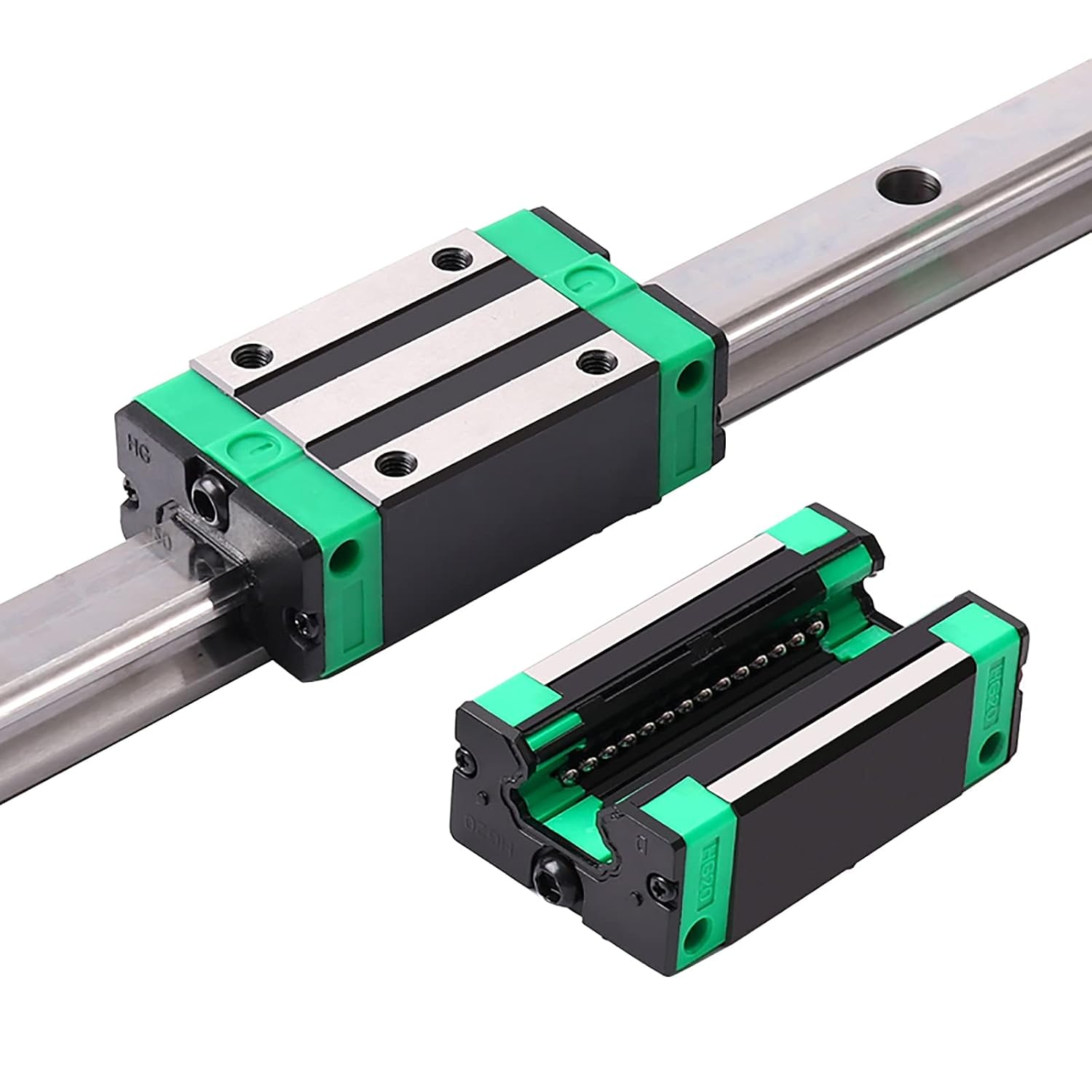

Square Linear Guideway Rail HGH20-400mm with 2 HGH20CA Blocks

In this review the Square Linear Guideway Rail HGH20-400mm kit is evaluated for small CNC machines and DIY motion projects; it is aimed at builders who need a compact, square-profile linear rail with durable carriage blocks. The kit includes a 400mm (15.75 in) HGH20 rail and two HGH20CA square bearing carriages, and the single biggest reason to buy is its combination of hardened high-carbon steel rail construction and Goethe-style four-point contact carriages that deliver stable, low-friction motion under load. For those assembling compact linear stages, this set is ready to install and easy to maintain.

Key Features

• Hardened rail: The high-carbon steel rail is quenched and tempered for long-term wear resistance and strong bending resistance for durable straight travel.
• Four-point contact design: The Goethe-style carriage distributes loads evenly in all directions and provides self-aligning capability to absorb mounting surface errors.
• Complete kit: Includes one 400mm HGH20 square rail and two HGH20CA carriage blocks, making it simple to assemble a short linear stage or upgrade an existing setup.
• Low friction sliders: Carriage blocks use quality bearing steel and multiple steel balls to reduce friction, producing smooth, light motion and extended service life.
• Easy maintenance: The guide is smooth to maintain and can be serviced with #46 grease to preserve performance over time.
• Custom lengths available: The manufacturer supports custom total lengths and hole-spacing and can splice rails for lengths beyond standard limits.

Who It's For

The HGH20-400mm kit is best for hobbyists, CNC builders, and small-automation projects that require a compact, square-profile linear guide with good load capacity and repeatable motion. It suits gantries, Z-axis assemblies, and DIY router or laser stages where a 20mm profile is appropriate.

It is less relevant for very large industrial systems or applications demanding extremely long unsupported spans without splicing; those users should look at longer rails or heavier series guides designed for heavy industrial use.

Pros & Cons

Pros

• Durable quenched and tempered high-carbon steel rail provides strong bending resistance and longevity.
• Self-aligning four-point contact carriages handle loads evenly in all directions for stable linear motion.
• Smooth, low-friction movement from multiple steel bearing balls improves precision and reduces wear.
• Offered in custom lengths and splice options for flexible system design.

Cons

• Standard kit length is 400mm, so longer travel requires ordering custom or spliced rails.
• Designed for compact to medium loads; very heavy industrial applications may require a heavier rail series.

Specifications

Our Verdict

The HGH20-400mm square linear guide kit is a solid, practical choice for DIY CNC builders and small automation projects that need precise, durable linear motion in a compact package. Its hardened rail, four-point contact carriages, and low-friction bearings deliver reliable performance and good value when a 20mm profile and 400mm travel meet the project requirements.

Frequently Asked Questions

Can I order a longer rail?
Yes, the manufacturer offers custom lengths and can splice rails for total lengths beyond the standard size.

What lubrication is recommended?
Use #46 grease to maintain smooth operation and extend service life.

Are these carriages interchangeable?
Yes, the HGH20CA carriages follow the square HGH20 standard and are interchangeable with compatible square linear rail kits.
