Square Linear Guideway Rail HGH20 49.61in - High Precision Linear Rail

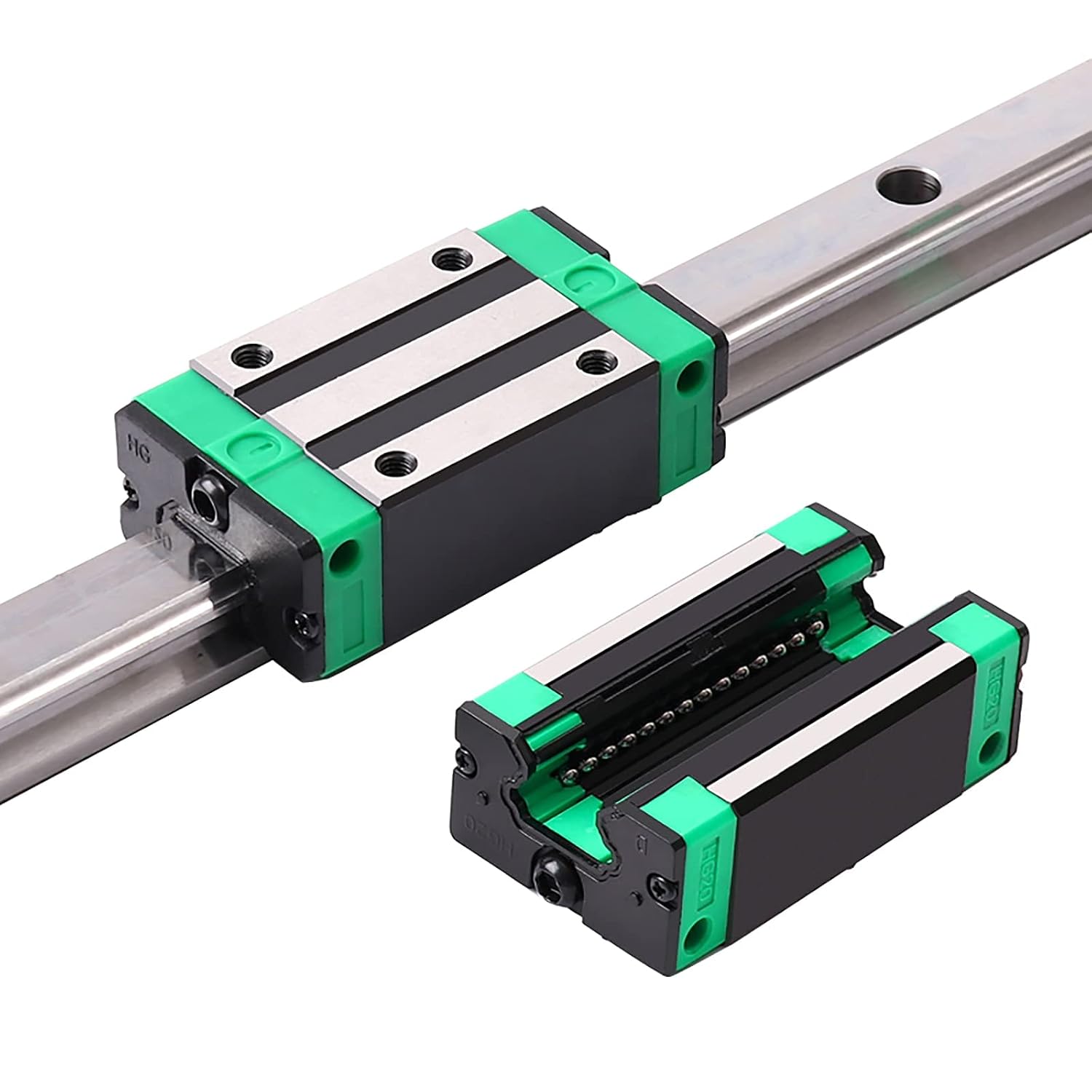

In this review of the Square Linear Guideway Rail HGH20 49.61in kit, the conclusion is straightforward: this set is aimed at hobbyist and small workshop CNC builders who need a compact, high-precision linear motion solution that is robust and easy to fit. The kit reviewed includes a 1260mm (49.61in) HGH20 square linear rail and two HGH20CA carriage slider blocks, and the biggest reason to buy is the rail's hardened high-carbon steel construction combined with a Goethe-style four-point contact design that provides stable, low-friction motion under load.

Key Features

• High-carbon steel rail: The hardened rail uses quenching and tempering for long-term wear resistance and strong bending resistance, which helps maintain straightness during heavy-duty use.
• Goethe-style four-point contact: The carriage design distributes loads evenly in all directions and offers self-alignment to absorb minor assembly errors on the mounting surface.
• HGH20CA bearing blocks: Thickened high-quality bearing steel and multiple steel balls reduce friction and deliver smooth, flexible travel with extended service life.
• Interchangeable design: The square type rail and blocks follow common dimensional standards, making them easy to assemble or swap with other square linear rail kits.
• Factory direct and customizable: The manufacturer offers custom lengths and splicing for runs longer than 2950mm, which is useful for bespoke CNC frames or long gantries.

Who It's For

This kit is best for DIY CNC builders, small machine shops, and robotics hobbyists who need a compact 20mm wide linear guide with good load capacity and rigidity for router tables, small gantry mills, or XYZ stages. It is also suitable for users upgrading hobby machines who want a sturdier, more repeatable bearing solution than plain round rails.

Those who should look elsewhere include users needing sealed or lubricant-packed guides for heavy contamination environments, or industrial applications requiring full manufacturer certification and extended warranty packages beyond typical direct-from-factory kits.

Pros & Cons

Pros

• Solid hardened rail delivers excellent wear resistance and resists bending across the 1260mm length.
• Four-point contact carriages provide uniform load handling and self-alignment for straighter travel under load.
• Carriage blocks use many steel balls and thickened material for smooth motion and longer life.

Cons

• Not supplied with closed seals or integrated lubrication cartridges, so maintenance with #46 grease is required for best life.

Specifications

Model	HGH20
Rail width	20mm
Rail length	1260mm (49.61in)
Included carriages	2 x HGH20CA square slider blocks
Material	High-carbon steel, quenched and tempered
Design	Goethe-style four-point contact, self-aligning
Maintenance	Use #46 grease; smooth and easy maintenance

Our Verdict

The HGH20 1260mm square linear rail kit is a practical, cost-effective choice for hobbyists and small shops needing reliable, precise linear motion. Its hardened steel rail, robust carriage blocks, and proven four-point contact design give good value for DIY CNC builds and upgrades, provided users are prepared to perform routine lubrication and basic maintenance.

Frequently Asked Questions

Can this rail be made longer?
Yes. The factory offers custom lengths and splicing for total lengths beyond 2950mm; contact the seller to specify total length or hole spacing.

What lubricant should be used?
Use #46 grease for routine maintenance to preserve smooth motion and extend service life.

Are these carriages interchangeable with other square linear kits?
Yes. The HGH20CA blocks follow common square rail dimensions and are designed to be interchangeable with compatible HGH/HGR20 systems.
