Square Linear Guideway Rail HGH20 57.09in Kit - Precise CNC Motion

In this review of the Square Linear Guideway Rail HGH20 57.09in kit we look at whether this linear motion set is a practical choice for CNC builders and DIY fabricators. The bottom line is that the kit pairs a 1450mm HGH20 square rail with two HGH20CA bearing carriages to deliver durable, low-friction linear travel suited to heavy loads and repeatable positioning; it stands out for material hardness and four-point contact design that maintain stability under side and vertical loads. For anyone needing a long, rigid, serviceable rail that is easy to assemble and interchange with other square-guide systems, this kit is a solid option.

Key Features

• High-carbon steel rail: The guide rail uses quenched and tempered high-carbon steel for long-term wear resistance and reduced deformation under load.
• Four-point contact design: The Goethe-style contact geometry spreads load evenly in all directions for stable, precise motion during milling or routing.

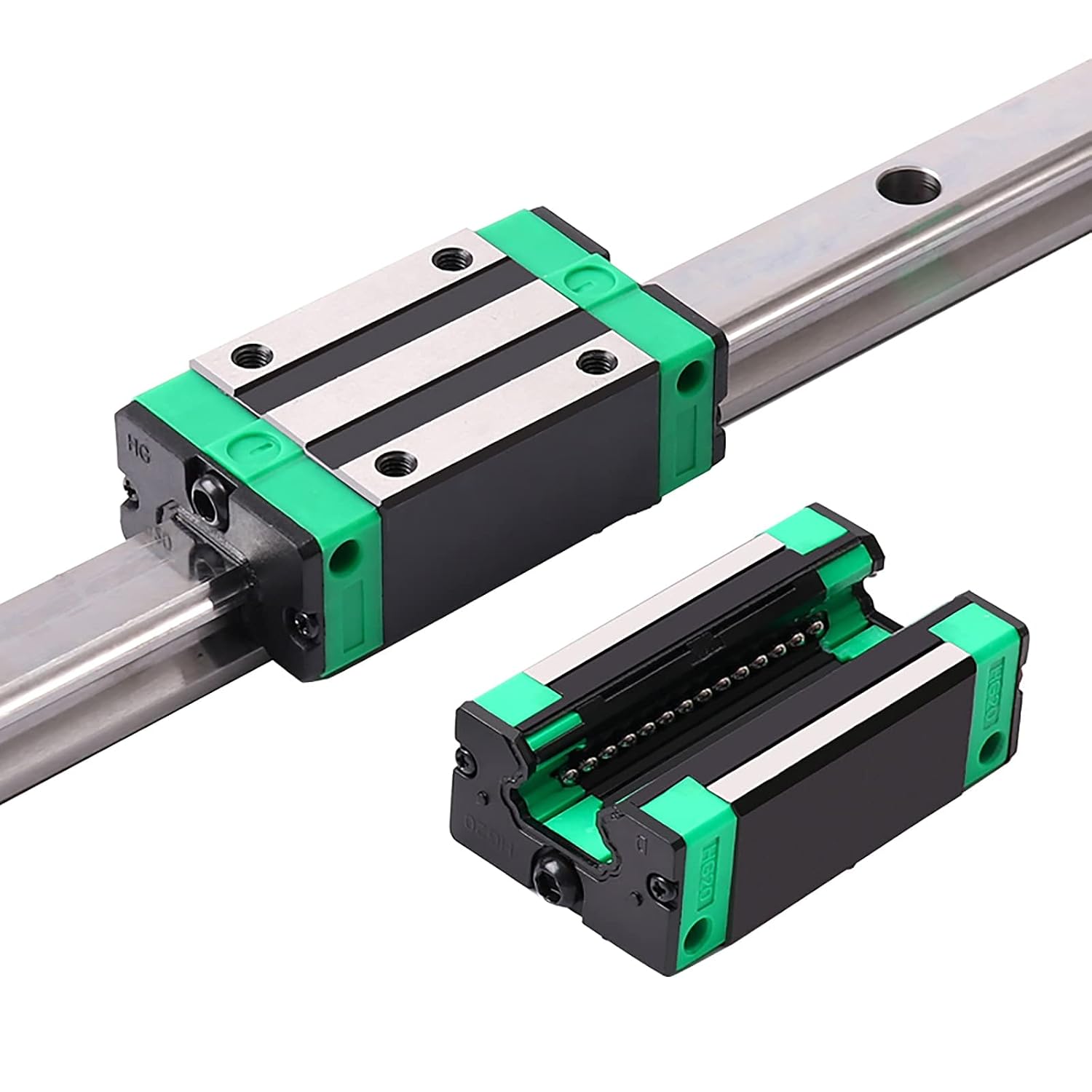

• Two HGH20CA carriages: Thickened bearing steel and multiple steel balls reduce friction and provide smooth, low-resistance travel for repeatable positioning.
• Strong bending resistance: The rail resists twisting and bending, making it suitable for longer spans and heavier gantry setups without excessive deflection.
• Factory customization: The manufacturer offers custom lengths and splice options beyond 2950mm, which helps when building nonstandard machines.
• Easy maintenance: The rail is serviceable with standard lubricants such as #46 grease to preserve performance over time.

Who It's For

The kit is aimed at hobbyists, small machine shops, and CNC builders who need a robust 20mm square guide rail and two matched slider blocks for gantries, router tables, and DIY automation projects. Its hardened rail and four-point contact bearings make it well suited where consistent linear accuracy and load capacity matter.

Those who should look elsewhere include users requiring preassembled carriages with block-specific mounting brackets or sealed systems for harsh contaminants; specialized sealed linear guides or miniature profile rails may be more suitable for those environments.

Pros & Cons

Pros

• Hardened high-carbon steel rail resists wear and deformation under load.
• Four-point contact carriage design provides even load distribution and self-alignment.
• Multiple steel bearing balls and thickened carrier material deliver smooth, low-friction motion and durability.

Cons

• The kit requires some mechanical skill to assemble and maintain; lubrication and correct mounting matter for optimal life.
• Not a sealed or fully protected guide type, so heavy dust environments may need additional protection.

Specifications

Our Verdict

The HGH20 57.09in square linear rail kit is a practical, value-minded choice for CNC hobbyists and small shops that need a long, hard-wearing guide with precise, low-friction motion. Its hardened rail, four-point contact carriages, and factory customization options make it versatile for gantries and larger DIY machines; with proper mounting and lubrication it offers stable performance and long service life.

Frequently Asked Questions

Can the rail be supplied in other lengths?
Yes, the manufacturer offers custom lengths and can splice rails for total lengths greater than 2950mm on request.

What lubrication is recommended?
Use a standard machine grease such as #46 grease for routine maintenance to keep the carriage smooth and reduce wear.

Are the carriage blocks interchangeable with other square guide kits?
Yes, the set is designed to be interchangeable with other HGH/HGR square linear rail systems of the same size, allowing replacement or upgrade.
