Square Linear Guideway Rail HGH20-98.43 in / 2500mm - Precise CNC Rail

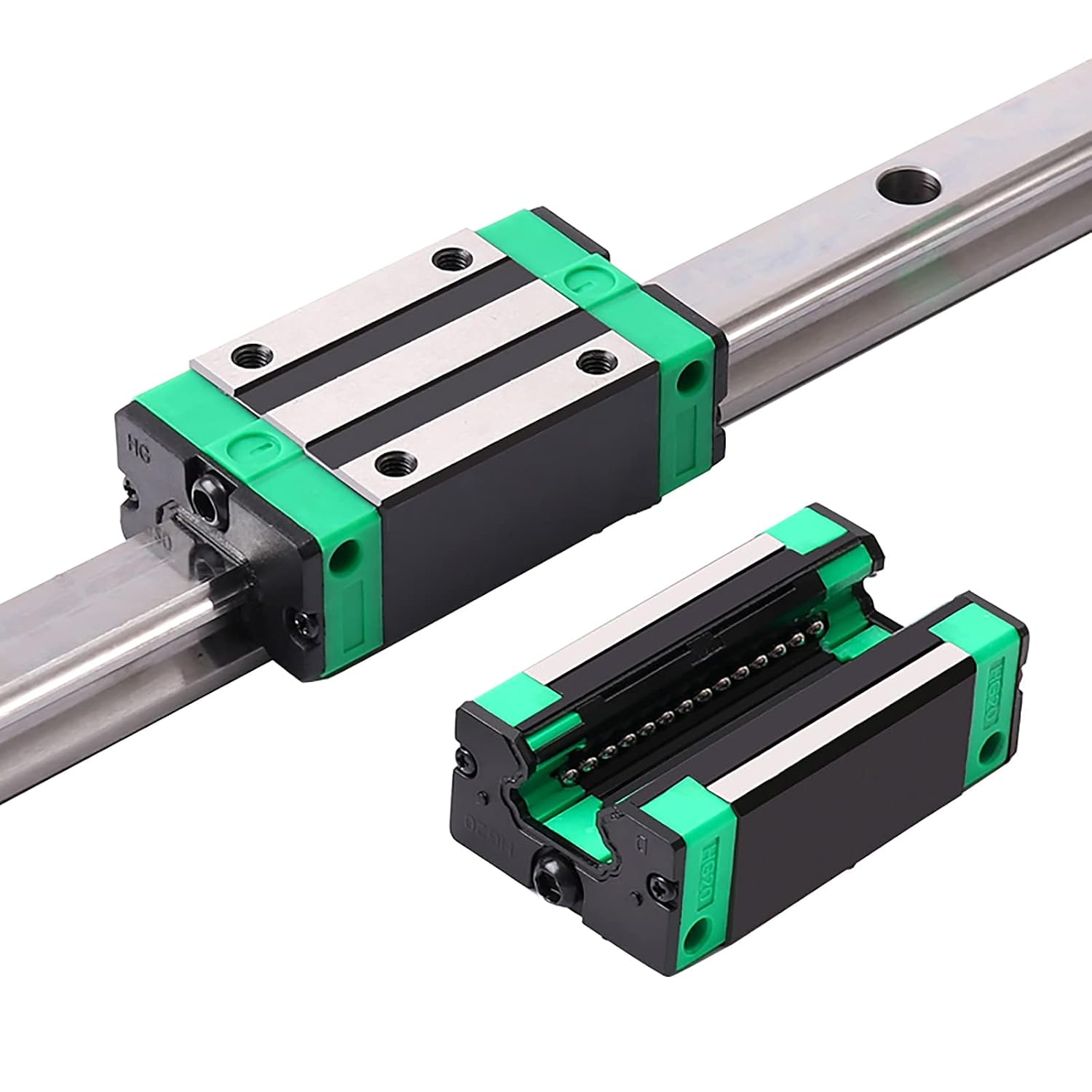

In this review of the Square Linear Guideway Rail HGH20-98.43 in / 2500mm kit, the bottom line is simple: this set is for makers and small shop CNC builders who need a sturdy, high-precision linear guide at a practical length. The kit includes a 98.43 in (2500mm) HGH20 rail and two HGH20CA square carriage blocks, and its strongest selling point is long-term rigidity and smooth motion thanks to hardened high-carbon steel and a Goethe-style four-point contact design. For those who prioritize load capacity, repeatable linear travel, and low maintenance, this rail offers a dependable, no-nonsense solution.

Key Features

• Complete rail and blocks: The kit ships with a single 2500mm HGH20 square rail and two HGH20CA carriage blocks so assembly is straightforward for CNC tables and DIY linear axes.
• Hardened high-carbon steel: Quenching and tempering deliver durable wear resistance and strong bending resistance to maintain straightness under load.
• Four-point contact design: The Goethe-style carriage spreads loads evenly in all directions and provides a self-aligning function that tolerates minor mounting errors.
• High-quality bearing balls: More steel balls in the slider reduce friction and produce a light, smooth travel that is appropriate for precision movement.
• Factory direct and customizable lengths: The manufacturer offers custom lengths and splicing for runs longer than 2950mm, which is helpful for nonstandard machine sizes.
• Simple maintenance: The guide is straightforward to service; the manufacturer recommends #46 grease for routine lubrication.

Who It's For

The Square Linear Guideway Rail HGH20 kit is aimed at hobbyists building CNC routers, small milling machines, laser gantries, or motion stages that require a 20mm carriage width and long travel. It fits builders who want interchangeability with other square rail components and value hardened steel construction for reduced deflection under load.

It is less suited for applications needing pre-assembled multi-rail carriages or integrated motor mounts out of the box; if you require sealed, pre-lubricated industrial modules or a ready-made linear actuator with motor coupling, look for a different product that includes those extras.

Pros & Cons

Pros

• Solid construction with hardened high-carbon steel offers excellent wear resistance and bending strength.
• Four-point contact carriage provides even load distribution and self-alignment for reliable precision.
• Smooth, low-friction motion from dense bearing balls yields consistent travel and longer service life.
• Manufacturer offers custom lengths and splicing options for longer setups.

Cons

• The kit is a basic rail and two blocks only, so additional mounting hardware and end supports are required for a complete axis.
• The rail arrives unassembled to the machine, so some alignment and setup experience is necessary for optimal performance.

Specifications

Our Verdict

The HGH20 2500mm square guideway kit is a practical, value-oriented choice for DIY CNC builders and light industrial users who need a long, rigid rail and dependable carriage performance. With hardened steel construction, four-point contact blocks, and straightforward maintenance, it delivers reliable precision when paired with the correct mounting and supports, making it a smart buy for custom linear motion projects.

Frequently Asked Questions

Can the rail length be customized?
Yes, the manufacturer offers custom lengths and can splice rails for runs longer than 2950mm; contact them for specific needs.

What lubrication is recommended?
Maintain performance with #46 grease applied per standard linear guide maintenance practices.

Are the carriage blocks interchangeable?
Yes, the HGH20CA square carriage blocks are designed to be interchangeable with other compatible 20mm square rail systems.
