Square Linear Guideway Rail HGW15 13.39in Kit - Precise CNC Motion

In this review of the Square Linear Guideway Rail HGW15 13.39in kit, the bottom line is simple: this set is for DIY CNC builders and light industrial users who need compact, high-precision linear motion with strong load capacity. The kit combines a 340mm HGW15 square rail with two flange HGW15CA carriage blocks, delivering stable, low-friction travel and easy mounting. Its four-point contact design and hardened high-carbon steel construction make it a practical upgrade for small mills, routers, or custom automation where repeatable straight-line accuracy matters.

Key Features

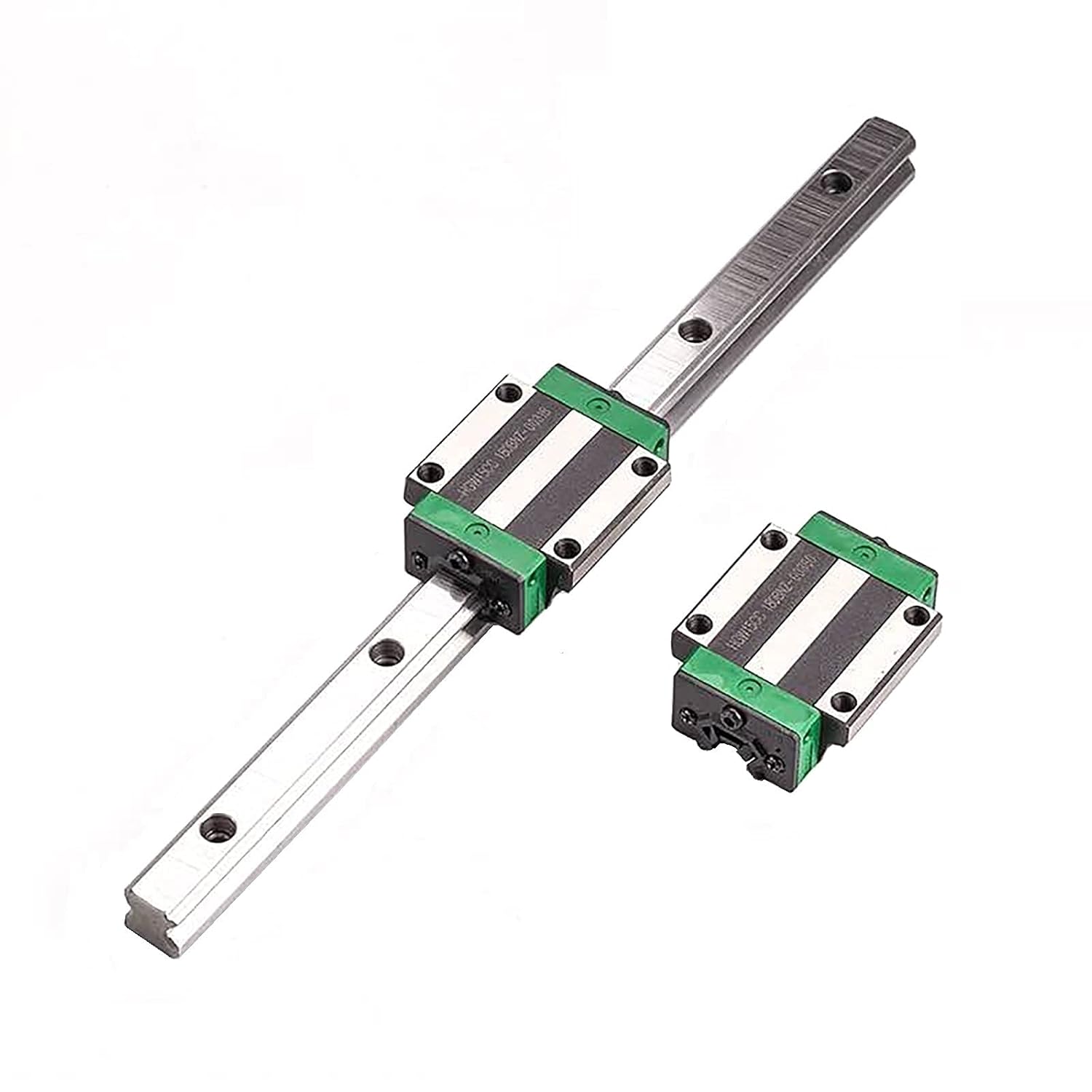

• Complete kit: Includes one 340mm HGW15 square rail and two HGW15CA flange carriage blocks for quick assembly and immediate use.
• Hardened rail: The high-carbon steel rail is quenched and tempered to resist wear and bending for long-term stability under load.
• Four-point contact: Goethe-style contact geometry distributes loads evenly in all directions and offers self-aligning ability to absorb small mounting errors.
• Thickened flange blocks: Flange-type carriage blocks with quality bearing steel and multiple balls reduce friction and provide smoother travel and higher load capacity.
• Interchangeable design: The HGW15 format is compatible with similar square linear rail systems, simplifying replacement or upgrade paths.
• Custom length support: Available from the factory in custom lengths or spliced sections for runs beyond standard sizes.

Who It's For

This rail set is well suited to hobbyists and small machine shops building CNC routers, small mills, laser gantries, or automated fixtures that require compact, stiff linear guidance. The flange blocks simplify mounting to plates or carriages where alignment options are limited.

It is less appropriate for ultra-heavy industrial machines or applications that demand sealed or lubricated-for-life bearings; those use cases typically require larger series rails or engineered linear guides with specialized seals. Beginners should be comfortable with basic mounting and lubrication procedures to realize the kit's precision.

Pros & Cons

Pros

• Hardened high-carbon steel rail delivers long wear life and strong bending resistance.
• Four-point contact and self-aligning carriage provide stable, multi-directional load support.
• Flange-type HGW15CA blocks make mounting straightforward and increase load capacity.
• Direct factory availability and custom length options simplify larger builds.

Cons

• Not a sealed system; periodic maintenance and grease (suggested #46) are required for best life.
• Designed for light to medium loads; very heavy industrial use may need a larger series.

Specifications

Model	HGW15
Rail width	15mm
Rail length	340mm (13.39in)
Included carriage blocks	2 x HGW15CA flange type
Material	High-carbon steel, quenched and tempered
Design	Goethe-style four-point contact, self-aligning
Maintenance	#46 grease recommended

Our Verdict

The HGW15 340mm square linear rail kit is a solid choice for DIY CNC builds and light industrial machines that need compact, accurate linear motion at a reasonable cost. Its hardened rail, flange carriage blocks, and four-point contact design deliver dependable stiffness and smooth travel, provided the user performs regular maintenance. For small to medium load applications this kit offers good value and straightforward installation.

Frequently Asked Questions

Can I get a longer rail length?
Yes, the manufacturer offers custom lengths and can splice rails for total lengths beyond standard offerings; contact the seller for details.

What lubrication is recommended?
Use #46 grease for routine maintenance to preserve smooth motion and extend service life.

Are the carriage blocks interchangeable with other 15mm square systems?
The HGW15 format is designed to be interchangeable with comparable square linear rail kits of the same series, easing replacements.
