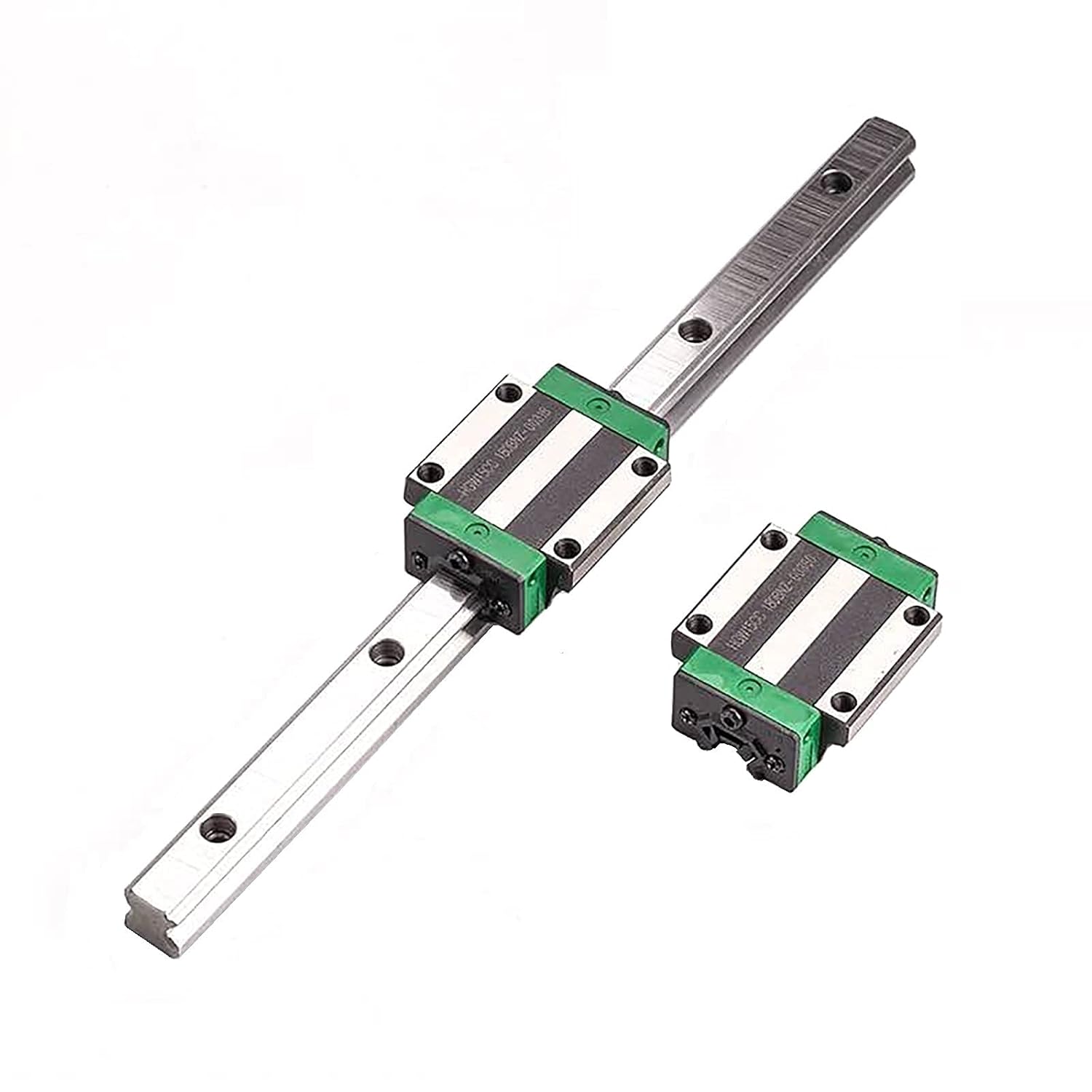

Square Linear Guideway Rail HGW20-1020mm with 2 HGW20CA Blocks

In this review the Square Linear Guideway Rail HGW20-1020mm kit is evaluated for hobby CNC builders, small machine shops and DIY motion projects; the bottom line is that it delivers steady, high-load linear motion in a compact, easy-to-assemble package. The reviewer found the set - one 40.16 in (1020mm) HGW20 rail plus two HGW20CA flange carriage blocks - to be built from hardened high-carbon steel and engineered for consistent alignment, making it a good choice when reliable rigidity and long service life are the priorities.

Key Features

• High-carbon steel rail: Provides strong bending resistance and long-term wear resistance for sustained accuracy under load.
• Four-point contact design: Distributes loads evenly in all directions and provides self-aligning capability to absorb mounting surface errors.
• Flange carriage blocks: Thickened bearing material and extra steel balls reduce friction and increase load capacity for smoother motion.
• Interchangeable size: HGW20 dimensions are compatible with similar square rail kits like HGH/HGR 20, easing upgrades or replacements.
• Custom length support: Factory customization and splicing options are available if longer total rail length is required.

Who It's For

The HGW20-1020mm kit suits builders of small CNC routers, mill conversions, 3D printer motion upgrades and other DIY projects that need a compact linear guide with good load handling and repeatable travel. Its flange carriage blocks make mounting straightforward for gantry-style setups and compact axes.

It is less appropriate for ultra-high-speed precision metrology where specialty linear guides and advanced lubrication systems may be required, or for extremely long single-piece rails beyond the manufacturer's standard offerings unless the buyer plans to use splicing or custom lengths from the factory.

Pros & Cons

Pros

• Durable hardened rail resists deformation and maintains straightness under load for consistent motion.
• Flange HGW20CA blocks with more steel balls give lower friction and smoother travel over time.
• Self-aligning four-point contact design tolerates minor mounting errors and improves installation reliability.

Cons

• Standard length is 1020mm; orders requiring longer single-piece rails must use splicing or request custom lengths from the factory.

Specifications

Model	HGW20
Rail width	20mm
Length	1020mm (40.16 in)
Included carriage blocks	2 x HGW20CA flange type
Material	High-carbon steel, quenched and tempered
Design	Goethe-style four-point contact, self-aligning
Maintenance	#46 grease recommended

Our Verdict

The HGW20-1020mm rail and HGW20CA carriage kit is a solid value for DIYers and small shops needing robust, compact linear motion. Its hardened construction, flange blocks with extra bearing balls and self-aligning design make it reliable for gantries and axes where stiffness and low friction matter. Choose this kit when you want a durable, interchangeable square rail solution and request factory customization if you need nonstandard lengths.
