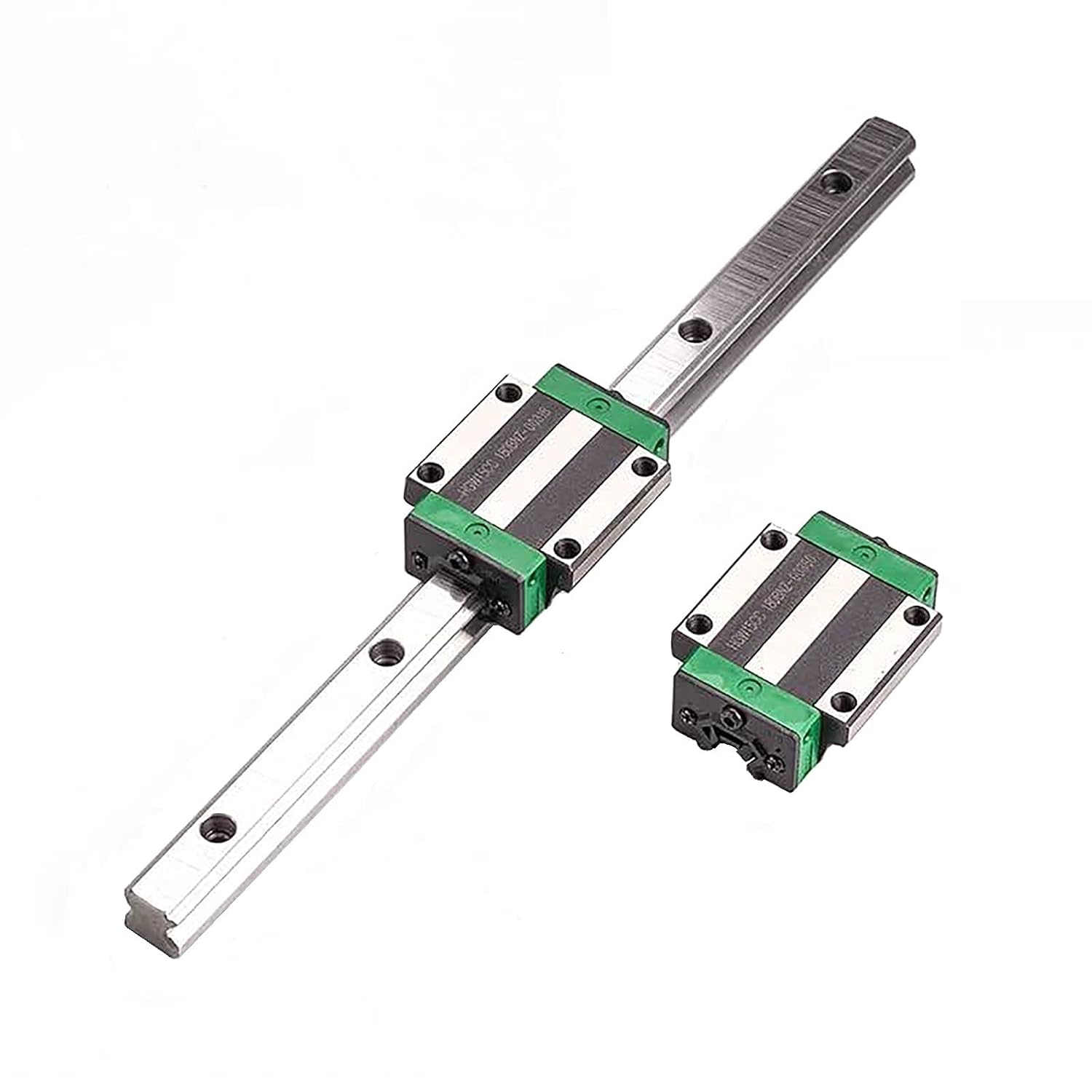

Square Linear Guideway Rail HGW20 1160mm with 2 HGW20CA Blocks

Our review of the Square Linear Guideway Rail HGW20 1160mm kit finds it best suited for hobby CNC builders and light industrial projects that need dependable, straight-line motion. The single biggest reason to buy is the combination of a hardened, high-carbon steel rail and flange-type HGW20CA carriage blocks that offer durable four-point contact guidance and self-aligning capability, making installation forgiving and motion smooth under load. The kit is compact, easy to assemble, and compatible with other 20mm square rail systems, so it is a practical upgrade or replacement part for DIY machine frames and linear stages.

Key Features

• High-carbon steel rail: The quenched and tempered rail offers strong bending resistance and long-term wear resistance for sustained linear accuracy.
• Four-point contact design: The Goethe-style contact pattern supports loads evenly in all directions and absorbs minor mounting surface errors for reliable alignment.
• Flange HGW20CA blocks: The flange-type carriage blocks include thicker bearing steel and additional balls for lower friction and higher load capacity.
• Interchangeable sizing: The HGW20 profile matches common 20mm square guide standards, making it easy to replace or pair with similar HGH/HGR 20 systems.
• Custom length support: The manufacturer offers custom lengths and splicing for rails longer than standard sizes, helpful for larger builds.
• Low maintenance: Simple upkeep with #46 grease keeps the slider blocks smooth and extends service life.

Who It's For

This kit is aimed at makers, CNC hobbyists, and small machine shops that need a precise, compact linear guide for routers, small mills, 3D printers, and linear stages. Its 20mm profile and flange blocks make it easy to mount and align on custom frames without special fixturing.

Those needing very high-speed industrial automation or extreme heavy-duty loads should consider larger profiles or specialty rails designed for continuous heavy production duty, as this HGW20 kit is optimized for light-to-moderate loads and DIY-friendly installation.

Pros & Cons

Pros

• Durable high-carbon steel rail with quenching and tempering for long wear life.
• Flange carriage blocks with thicker bearing steel and many balls provide smooth, low-friction motion.
• Self-aligning four-point contact design tolerates minor assembly errors and keeps motion precise.
• Customizable lengths and splicing available for longer travel requirements.

Cons

• Kit is intended for light-to-moderate loads; very heavy industrial applications may need a larger profile.
• Careful lubrication is required to maintain optimal performance over time.

Specifications

Brand	Mssoomm
Model	HGW20
Rail width	20mm
Rail length	1160mm (45.67 in)
Included blocks	2 pcs HGW20CA flange type carriage sliding blocks
Material	High-carbon steel rail; bearing steel balls in blocks
Maintenance	Use #46 grease; low maintenance

Our Verdict

The HGW20 1160mm rail and HGW20CA flange block kit is a solid, cost-effective choice for DIY CNC builders and light machine applications that need accurate, durable linear motion. Its hardened rail, self-aligning four-point contact design, and sturdy flange blocks deliver smooth operation and good load handling for small to medium projects, making it a practical value for those upgrading or building custom linear systems.

Frequently Asked Questions

Can the rail length be customized?
Yes, the manufacturer supports custom lengths and can splice rails for total lengths exceeding standard sizes.

What maintenance does the guideway require?
Periodic lubrication with #46 grease is recommended to keep the carriage blocks smooth and extend service life.

Is this compatible with other 20mm square rails?
The HGW20 profile is interchangeable with common 20mm square linear kits like HGH and HGR 20 series for many installations.
