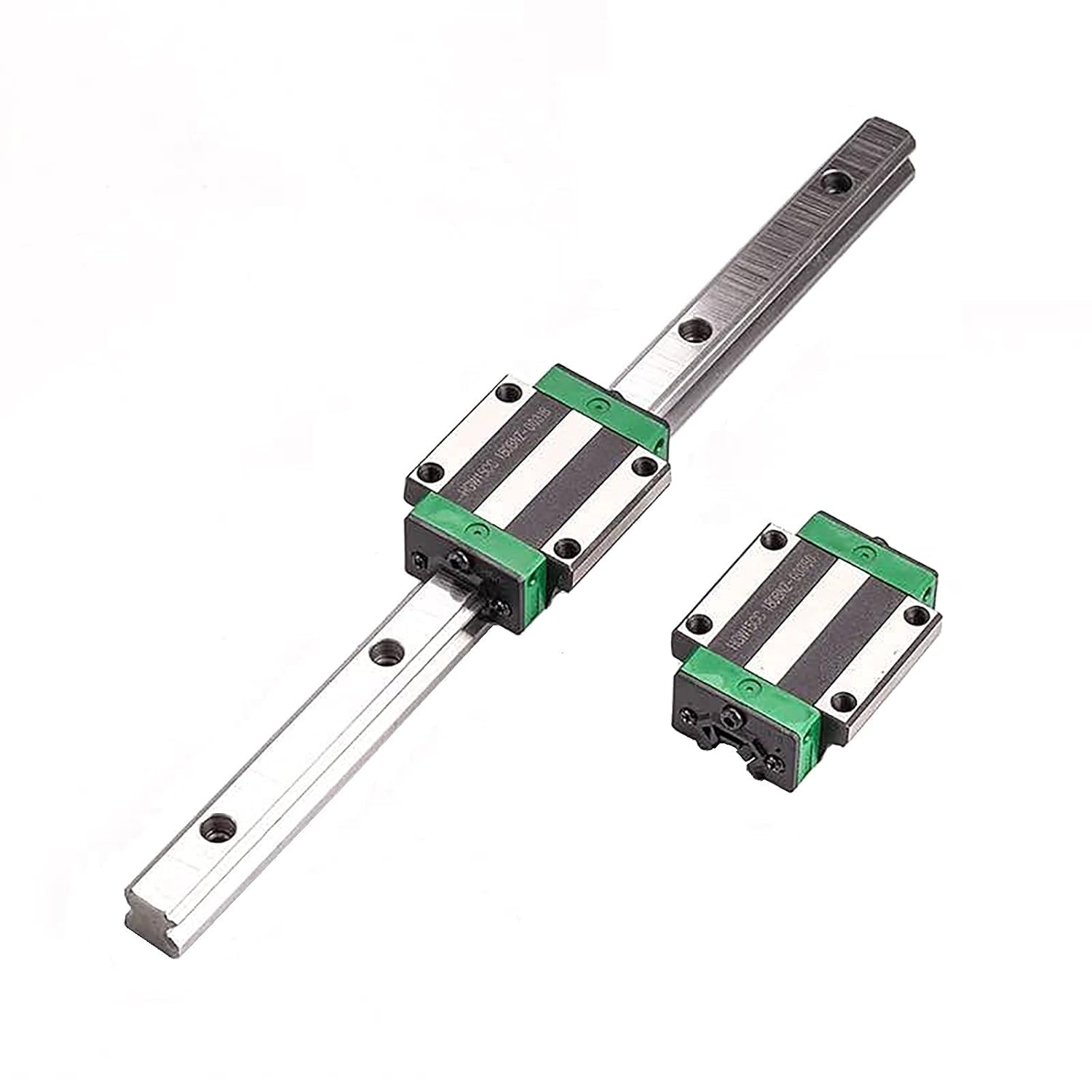

Square Linear Guideway Rail HGW20 13.78in with 2 HGW20-CA Blocks

In this review the Square Linear Guideway Rail HGW20 13.78in kit is evaluated for small CNC and DIY motion projects; its single biggest selling point is durability and consistent linear performance thanks to hardened high-carbon steel and a four-point contact design. The kit includes a 350mm HGW20 rail and two HGW20CA flange carriage blocks that are easy to assemble and interchangeable with common square linear rail systems, making it a practical choice for hobbyists and light industrial users who need reliable, low-friction linear motion without extensive modification.

Key Features

• Hardened rail: The guide rail is made of high-carbon steel with quenching and tempering to resist wear and preserve straightness under load.
• Four-point contact design: The Goethe-style contact pattern distributes loads evenly in all directions and provides a self-aligning ability that compensates for minor mounting surface errors.
• Flange carriage blocks: The included HGW20CA flange slider blocks use high-quality bearing steel and a thickened body for improved load capacity and durability.
• Smooth low-friction motion: Multiple steel bearing balls inside the block reduce friction for light, flexible, and smooth travel over long service life.
• Interchangeable system: The kit is compatible with other square linear rail systems and can be customized in length or spliced for runs longer than standard sizes.

Who It's For

The HGW20 13.78in rail kit is aimed at hobby CNC builders, small-machine repairers, and DIY automation enthusiasts who need a compact, robust linear guide that is simple to mount and maintain. Its flange-style blocks make alignment and attachment easier on gantries and small assemblies where a secure mount is required.

It is less suited for heavy industrial production lines that demand larger profile rails and certified load ratings; those users should consider heavier series rails or purpose-built industrial guides. Similarly, buyers needing integrated carriage accessories beyond the standard flange blocks will want a more specialized or larger system.

Pros & Cons

Pros

• High-carbon steel rail with quenching gives strong bending resistance and long-term wear resistance.
• Four-point contact and self-aligning carriage design maintain precision under multi-directional loads.
• Flange carriage blocks are sturdy, low friction, and easy to mount on common setups.
• Custom lengths and splicing options allow adapting the system to longer travel needs.

Cons

• Not marketed with formal industrial load ratings, so large-scale production use may require verification.
• The kit is basic; advanced users may need additional accessories or multiple blocks for higher rigidity.

Specifications

Brand	Mssoomm
Model	HGW20
Rail width	20mm
Included rail length	350mm (13.78in)
Included carriage blocks	2 x HGW20CA flange type slider blocks
Rail material	High-carbon steel, quenched and tempered

Our Verdict

The HGW20 13.78in square linear guideway kit is a solid value for hobbyists and light-duty machine builders who need a durable, interchangeable rail and flange carriages that deliver smooth, low-friction linear motion. Its hardened rail, self-aligning four-point contact blocks, and ability to be customized or spliced make it a practical, cost-effective component for upgrades and small CNC builds.

Frequently Asked Questions

Can this rail be ordered in other lengths?
Yes, the manufacturer offers custom lengths and can splice rails for runs longer than standard sizes; contact the seller for length options.

What maintenance does the kit require?
Maintenance is simple: keep the rail clean and apply #46 grease periodically to maintain smooth operation.

Are the carriage blocks compatible with other 20mm square rails?
Yes, the HGW20CA blocks are designed to be interchangeable with common square linear rail kits such as comparable 20mm models.
