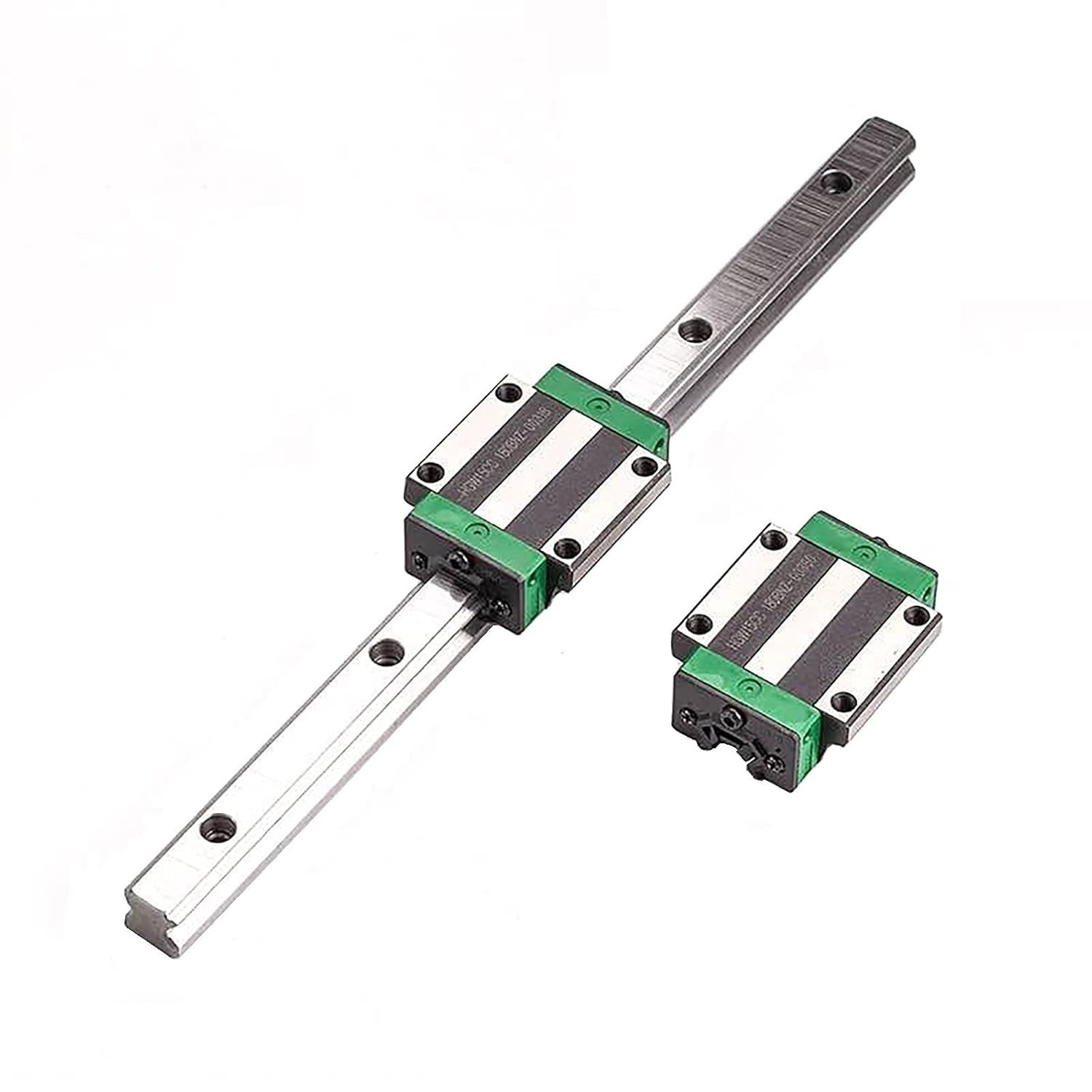

Square Linear Guideway Rail HGW20-260mm with 2 HGW20CA Flange Blocks

In this review of the Square Linear Guideway Rail HGW20-260mm kit, the bottom line is clear: this set is aimed at hobbyist machinists and small CNC builders who need a compact, high-rigidity linear motion solution. The reviewer found the kit notable for its hardened high-carbon steel rail and Goethe-style four-point contact design, which delivers consistent, low-friction travel and the ability to absorb minor mounting errors. Assembly is straightforward and the kit is directly compatible with common 20mm square-style systems, making it a practical choice for upgrades and DIY projects.

Key Features

• Complete 20mm kit: Includes a 260mm HGW20 rail and two HGW20CA flange carriage blocks for an immediate, ready-to-mount linear solution.
• Hardened rail construction: The high-carbon steel rail is quenched and tempered to resist wear and bending under repeated use.
• Four-point contact design: The Goethe-style design spreads load evenly in all directions and provides self-aligning capability for better precision.
• Flange carriage durability: Thickened bearing steel and additional bearing balls reduce friction and extend service life under load.
• Interchangeable standard: Compatible with other square 20mm systems, so it can replace or mix with HGH/HGR-style components in many setups.
• Service and customization: Factory direct supply offers custom lengths and splicing for installations longer than standard sections.

Who It's For

This kit is best suited for DIY CNC builders, small router or laser gantry projects, and hobbyists who need a compact 20mm linear guide with good load capacity and repeatable motion. It is particularly useful when upgrading low-cost systems to a more durable rail and carriage arrangement without redesigning mounts.

It is less appropriate for ultra-high-speed automation or extremely long travel systems without planning for splicing, and heavy industrial automation requiring larger-profile rails and carriages should consider heavier series rated for those loads.

Pros & Cons

Pros

• Sturdy high-carbon steel rail with quenching treatment improves wear resistance and reduces deformation.
• Four-point contact carriage provides balanced load support and compensates for minor alignment errors.
• Flange type HGW20CA blocks simplify mounting with a ready-made flange interface.
• Factory customization available for nonstandard lengths and splicing if longer runs are needed.

Cons

• Standard 260mm length is short for larger gantry machines, requiring splicing or a custom order for longer travel.
• Not intended as a drop-in replacement for very heavy industrial loads that need larger rail sizes.

Specifications

Brand	Mssoomm
Model	HGW20 with HGW20CA carriages
Rail width	20mm
Length	260mm (10.24 in)
Included items	1x HGW20 rail, 2x HGW20CA flange carriage blocks
Material	High-carbon steel rail; bearing steel carriages
Maintenance	Use #46 grease for routine maintenance

Our Verdict

The HGW20-260mm kit is a well-engineered, compact linear guide solution for makers and small CNC projects that need improved rigidity and smoother motion. Its hardened rail, four-point contact carriages, and flange mounting make it a practical upgrade from entry-level parts, and factory customization adds flexibility. For those building medium-duty gantries or precision fixtures, it represents good value; heavier industrial applications should select larger series rails.

Frequently Asked Questions

Can the rails be ordered in other lengths?
Yes, the manufacturer offers custom lengths and splicing for runs longer than standard sections; contact seller for details.

What maintenance does the rail require?
Routine lubrication with #46 grease is recommended to maintain smooth motion and prolong service life.

Are the carriages interchangeable with HGH/HGR 20mm systems?
The kit is designed to be compatible with common 20mm square-style linear components and can be interchangeable in many setups.
