Square Linear Guideway Rail HGW20 29.13in - Precision Rail Kit

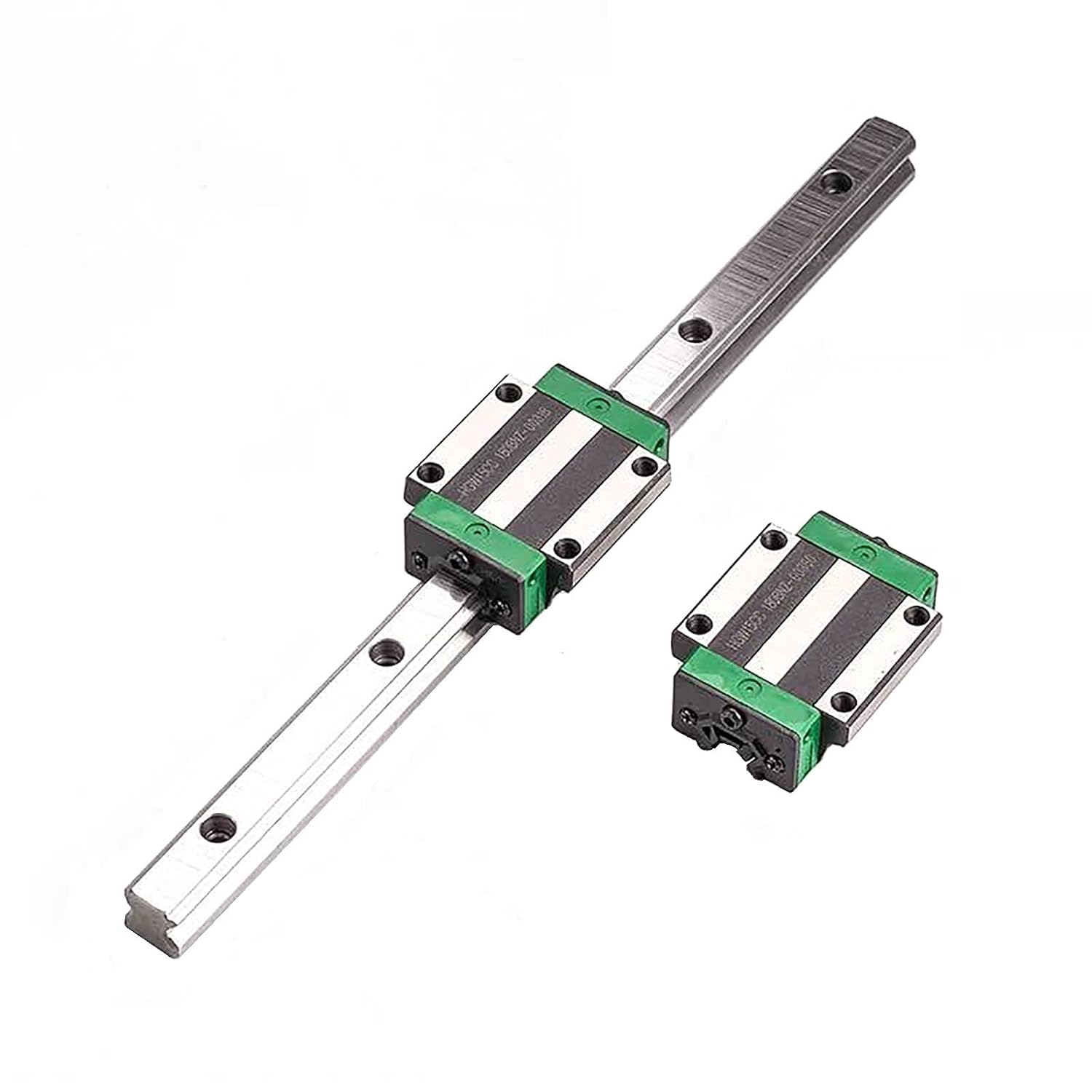

In this review of the Square Linear Guideway Rail HGW20 29.13in kit the bottom line is simple: it is a sturdy, value-oriented linear motion solution for hobby CNC builders and light industrial applications. The package includes a 740mm HGW20 rail and two HGW20CA flange carriage slider blocks, and the main reason to buy is its hardened high-carbon steel construction and four-point contact design that deliver stable, low-friction linear motion under load. For anyone assembling or retrofitting small CNC machines or linear stages, this kit balances durability and interchangeability.

Key Features

• Hardened rail: The rail is made of high-carbon steel with quenching and tempering for long-term wear resistance and strong bending resistance.
• Four-point contact design: The Goethe-style contact pattern supports loads evenly in all directions and helps maintain precision under high load.
• Flange carriage blocks: The HGW20CA blocks use thickened, high-quality bearing steel and extra steel balls for higher load capacity and smoother motion.
• Interchangeable form factor: The HGW20 series is compatible with other square linear rail kits such as HGH and HGR 20, simplifying upgrades and replacements.
• Custom lengths available: The manufacturer offers multiple lengths and splicing for runs longer than 2950mm, making the system adaptable to larger projects.
• Easy maintenance: The guide is smooth to maintain; light lubrication (for example ISO VG46 type grease) preserves performance and service life.

Who It's For

This kit suits DIY CNC hobbyists, small shop machinists, and builders of linear stages who need a compact 20mm-wide rail with reliable load handling and minimal play. It is a practical choice for router tables, compact gantries, 3D printer upgrades, and small automated fixtures where square guideways and flange mounting are convenient.

Those building very large gantries or requiring integrated recirculating seals for heavy contamination may prefer a different industrial-grade sealed carriage designed for harsh environments. Also, projects that demand metric hole patterns beyond the supplied options should confirm hole spacing before purchase.

Pros & Cons

Pros

• Hard quench-tempered high-carbon steel rail offers durable wear resistance and resistance to bending.
• Four-point contact carriage design provides even load support and self-aligning capability for accurate motion.
• Flange slider blocks with extra bearing balls reduce friction and deliver smooth, light movement.

Cons

• Not supplied with protective seals for very dirty environments, so additional guarding may be needed for heavy contamination.
• Installation requires attention to mounting surface flatness despite the self-aligning feature for optimal precision.

Specifications

Our Verdict

The HGW20 740mm set is a solid, economical choice for small to medium CNC builds and motion stages where precise, low-friction linear travel is required. Its hardened rail, four-point contact carriages, and flange mounts give good value for the price, and the option for custom lengths or splicing makes it flexible for many projects.

Frequently Asked Questions

Can this rail be used for CNC gantry systems?
Yes, it is suitable for small to medium gantry systems and router tables where a 20mm square guideway is sufficient.

Is the carriage sealed against dust and chips?
The supplied HGW20CA blocks emphasize load capacity and smooth motion but do not include heavy-duty seals; use guarding in dirty environments.

Can longer rails be ordered?
The manufacturer supports custom lengths and splicing for total lengths beyond 2950mm; contact the seller for details.
