Square Linear Guideway Rail HGW20 41.34in - Precise CNC Motion

In this review the Square Linear Guideway Rail HGW20 41.34in kit is evaluated for hobby CNC builders and light industrial use; the bottom line is that it delivers stable, low-friction linear motion in a compact, ready-to-install package. The kit includes a 1050mm HGW20 square rail and two HGW20CA flange carriage blocks, and the reviewer found the hardened high-carbon steel rail and Goethe-style four-point contact design to provide excellent load distribution and long-term wear resistance for router tables, CNC gantries, and DIY automation projects.

Key Features

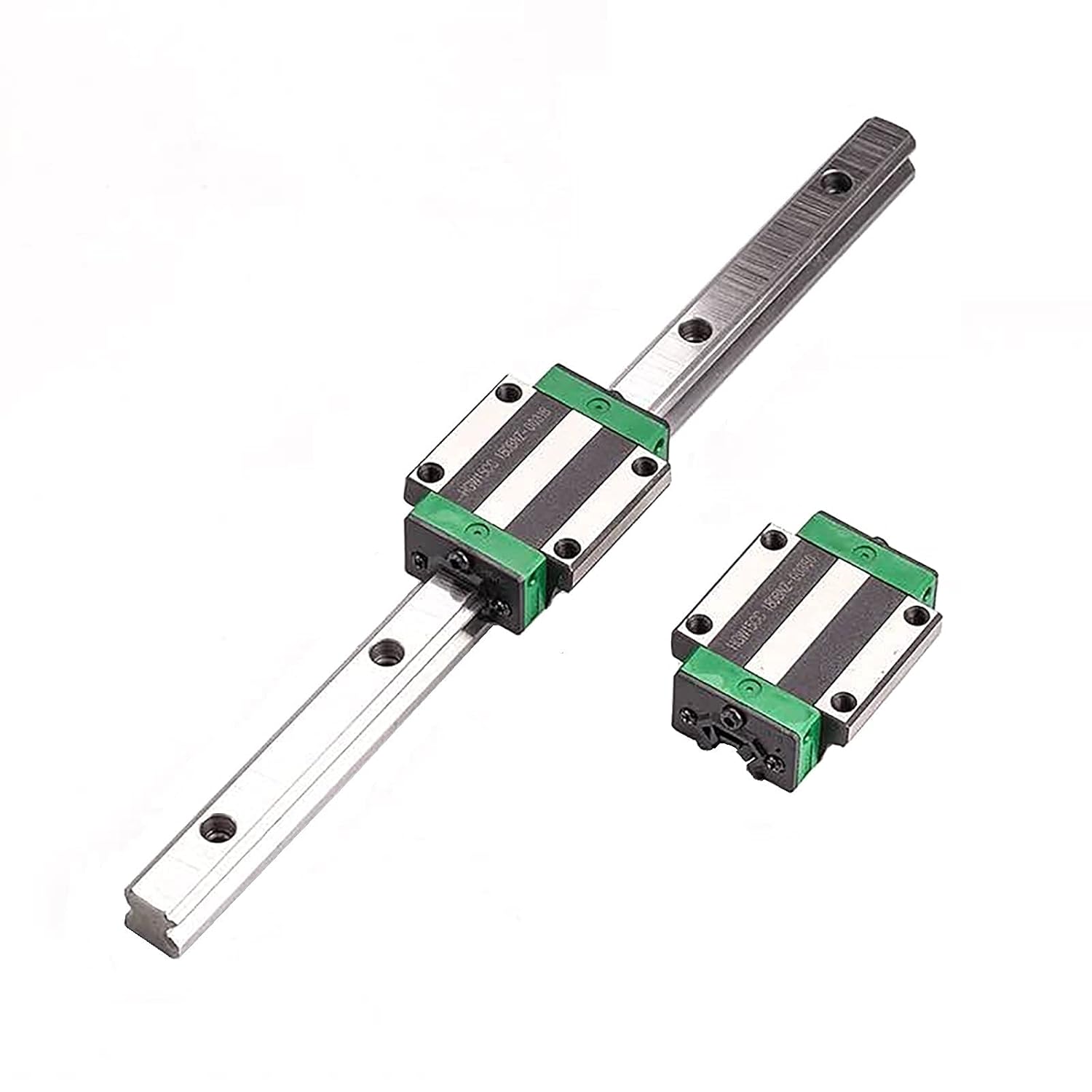

• Complete kit: Includes one 1050mm HGW20 square rail and two HGW20CA flange carriages so assembly is straightforward and parts are matched for immediate installation.
• Hardened steel rail: The high-carbon steel rail is quenched and tempered to resist wear and bending, which keeps motion accurate under repeated load.
• Four-point contact design: The Goethe-style contact pattern spreads load in all directions and adds a self-aligning capability that tolerates minor mounting errors.
• Flange carriage build: Thickened carriage material and high-quality bearing steel provide higher load capacity and a durable sliding surface for heavier attachments.
• Low friction operation: More steel bearing balls and precision surfaces make travel smooth and reduce actuation force for quieter, responsive movement.
• Custom length support: Factory direct supply and splicing options mean longer total lengths can be produced when needed for larger DIY frames.

Who It's For

This guideway rail set is well suited for hobbyists building small to mid-size CNC routers, laser tables, or linear stages who need a compact 20mm guide with flange mounting for easy carriage attachment. Its combination of hardened rail and flange carriages makes it a practical choice for light industrial fixtures and jigs that require repeatable straight-line motion.

Those who need ultra-high precision for metrology-grade equipment or who require sealed or fully recirculating ball designs for heavy continuous industrial duty should consider other premium series; this HGW20 kit is optimized for general-purpose CNC and DIY mechanical motion rather than specialized cleanroom or heavy-continuous production environments.

Pros & Cons

Pros

• Solid construction with quenched, tempered high-carbon steel for long wear life and resistance to bending.
• Flange-style carriage blocks simplify mounting and provide good load handling and rigidity for common CNC builds.
• Goethe-style four-point contact delivers consistent load distribution and self-alignment for easier installation tolerance.
• Factory support for custom lengths and splicing offers flexibility for nonstandard projects.

Cons

• The kit is aimed at general CNC and DIY use and may not meet needs where sealed or fully recirculating bearings are required for harsh environments.
• Maintenance requires periodic lubrication (recommended #46 grease) which is typical but adds routine upkeep.

Specifications

Our Verdict

The HGW20 1050mm square linear guideway kit is a strong value for CNC hobbyists and light industrial users who want a durable, easy-to-mount rail and flange carriages. Its hardened rail, four-point contact design, and factory customization options make it a reliable choice for repeatable, low-friction linear motion in router tables, gantries, and DIY automation projects.

Frequently Asked Questions

Can the rail be supplied in other lengths?
Yes, the manufacturer offers custom lengths and splicing for totals exceeding standard sizes; contact the seller for specific requirements.

What lubrication is recommended?
Use #46 grease for regular maintenance to preserve smooth operation and extend service life.

Are these carriages interchangeable with other 20mm square kits?
The HGW20 set is designed to be interchangeable with similar square linear rail kits, such as HGH or HGR 20 series, for many common applications.
