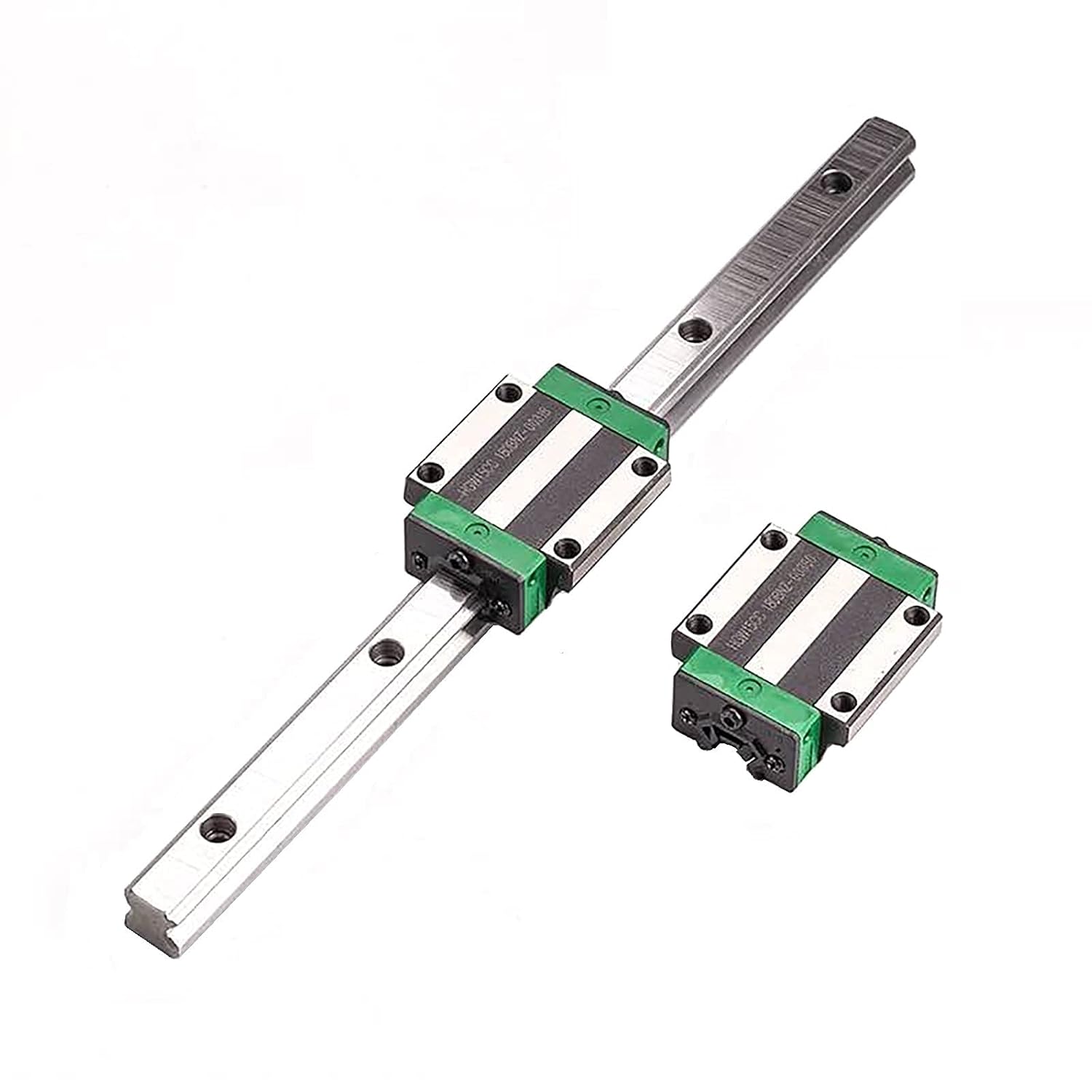

Square Linear Guideway Rail HGW20-55 in with 2 HGW20CA Blocks

In this review the Square Linear Guideway Rail HGW20-55 in kit is evaluated for hobby CNC builders and light industrial use; the bottom line is that it offers robust, high-precision linear motion in a ready-to-install package. The kit includes a 55 in (1397mm) HGW20 square rail and two HGW20CA flange carriage blocks, and the reviewer found the combination especially useful where long, straight travel and load resistance matter. The guide rail's hardened high-carbon steel construction and the flange block design deliver stability and low friction suitable for CNC gantries, router tables, and DIY automation projects.

Key Features

• Hardened rail: The HGW20 guide rail is made of high-carbon steel with quenching and tempering for long-term wear resistance and reduced deformation under load.
• Flange carriage blocks: The two HGW20CA flange slider blocks use quality bearing steel and thickened material to improve load capacity and durability on repeated travel.
• Four-point contact design: Goethe-style four-point contact provides even load distribution in all directions and a self-aligning ability to absorb mounting surface errors.
• Smooth low friction: More steel bearing balls and careful assembly reduce friction for light, flexible movement and a longer service life.
• Interchangeable sizing: The HGW20 series is interchangeable with other square linear rail kits and can be customized in longer lengths or spliced beyond 2950mm for extended applications.

Who It's For

The HGW20-55 in kit is aimed at DIY CNC builders, light fabricators, and hobbyists who need a long, rigid linear rail with reliable carriage blocks for gantry or sliding table assemblies. Its hardened construction and flange mounting simplify attachment and raise confidence for projects requiring repeatable linear travel.

Those who need ultra-high precision measured in microns for laboratory metrology or those seeking a pre-assembled linear stage with integrated motors and limit switches should look elsewhere; this product provides the mechanical guide hardware only and requires user assembly and alignment.

Pros & Cons

Pros

• Hardened high-carbon steel rail resists bending and wear for consistent linear motion.
• Flange HGW20CA blocks with more bearing balls deliver smooth, low-friction travel and good load handling.
• Self-aligning four-point contact design tolerates slight mounting surface errors while maintaining precision.

Cons

• Kit is hardware only and requires user installation, alignment, and maintenance (grease #46 recommended).
• Length customization or splicing requires contacting the factory rather than an off-the-shelf extended rail.

Specifications

Our Verdict

The HGW20-55 in rail kit is a solid value for CNC hobbyists and light industrial users who need a long, sturdy linear guide and reliable flange carriages. Its hardened rail, four-point contact design, and robust carriage construction deliver dependable, low-friction motion; buyers should budget a little time for careful mounting and routine lubrication to get the best life and precision.

Frequently Asked Questions

Can the rail be made longer?
Yes, the manufacturer offers customized lengths and splicing for total lengths beyond 2950mm; contact the seller for options.

What maintenance is required?
Routine lubrication with #46 grease is recommended to maintain smooth operation and extend service life.

Are these blocks interchangeable with other 20mm square rails?
Yes, the HGW20 and HGW20CA blocks are designed to be interchangeable with similar 20mm square linear rail kits of the same profile.
