Square Linear Guideway Rail HGW20 69.29in Kit - Precise, Heavy Duty

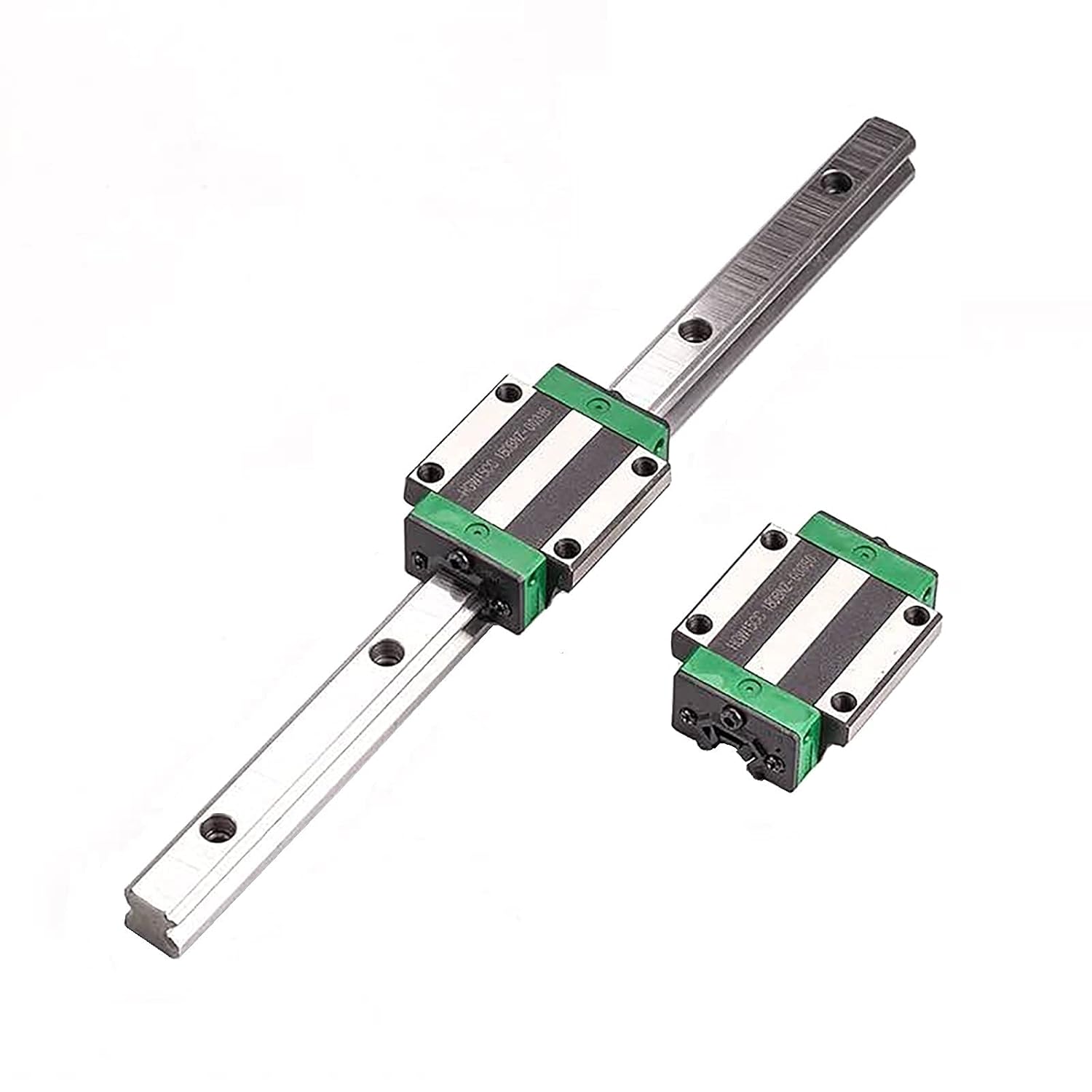

In this review of the Square Linear Guideway Rail HGW20 69.29in kit the bottom line is simple: this is a rugged, high-precision linear rail set for serious DIYers and light industrial CNC builds who need stable, low-friction motion. The kit reviewed here includes one HGW20 1760mm rail and two HGW20CA flange carriage blocks and delivers the main benefit buyers expect: consistent linear accuracy under load thanks to hardened high-carbon steel and a four-point contact design. It is straightforward to assemble, compatible with other square rail systems, and intended for applications where wear resistance and rigidity matter.

Key Features

• Hardened high-carbon steel rail: The quenched and tempered rail resists wear and maintains straightness so linear motion stays accurate over time.
• Four-point contact design: The Goethe-style contact geometry spreads load evenly in all directions and provides self-alignment to tolerate small mounting errors.
• Flange carriage blocks: The HGW20CA flange sliders are thickened and use high-quality bearing steel for higher load capacity and durability.
• Low friction operation: More steel bearing balls and careful assembly yield smooth, light movement with reduced resistance and longer service life.
• Interchangeable sizing: The 20mm width and common mounting hole spacing make the kit compatible with other square linear rail families for upgrades or replacements.
• Custom length support: The factory can supply other total lengths or use splicing for rails longer than 2950mm, simplifying project planning.

Who It's For

This kit is aimed at makers building CNC routers, small milling rigs, 3D printers, or other motion equipment that needs a compact but robust linear guide solution. Hobbyists and small shops that value durable components and predictable long-term performance will find this set useful because of its hardened rail and flange-style blocks.

It is less suitable for ultra-high-speed gantries designed around lightweight components or for cases where miniature micro rails are required. If a project demands sealed linear guidance for corrosive environments or integrated lubrication systems, consider a purpose-built sealed rail instead.

Pros & Cons

Pros

• Hardened high-carbon steel construction gives excellent wear resistance and rigidity.
• Four-point contact and self-aligning behavior maintain precision under multi-directional load.
• Flange carriage blocks with more bearing balls provide smooth motion and higher load ability.
• Compatible with common 20mm square guide systems and available in custom lengths.

Cons

• The kit is a basic open rail design and does not include sealed carriages or integrated lubrication systems, which some industrial users may prefer.

Specifications

Our Verdict

The HGW20 1760mm rail with two HGW20CA flange carriages is a strong value for hobbyists and small shops that need reliable, heavy-duty linear motion without exotic features. Its hardened rail, robust carriage design, and compatibility with common 20mm systems make it a practical choice for CNC and DIY projects where durability and predictable precision matter more than sealed components or ultra-lightweight construction.

Frequently Asked Questions

Can this rail be made longer than 1760mm?
Yes, the manufacturer supports custom lengths and can use splicing technology for total lengths exceeding 2950mm.

What lubricant should be used?
Routine maintenance recommends #46 grease for smooth operation and extended service life.

Are these carriages interchangeable with other 20mm square rails?
Yes, the HGW20 components are designed to be interchangeable with common 20mm square linear rail families.
