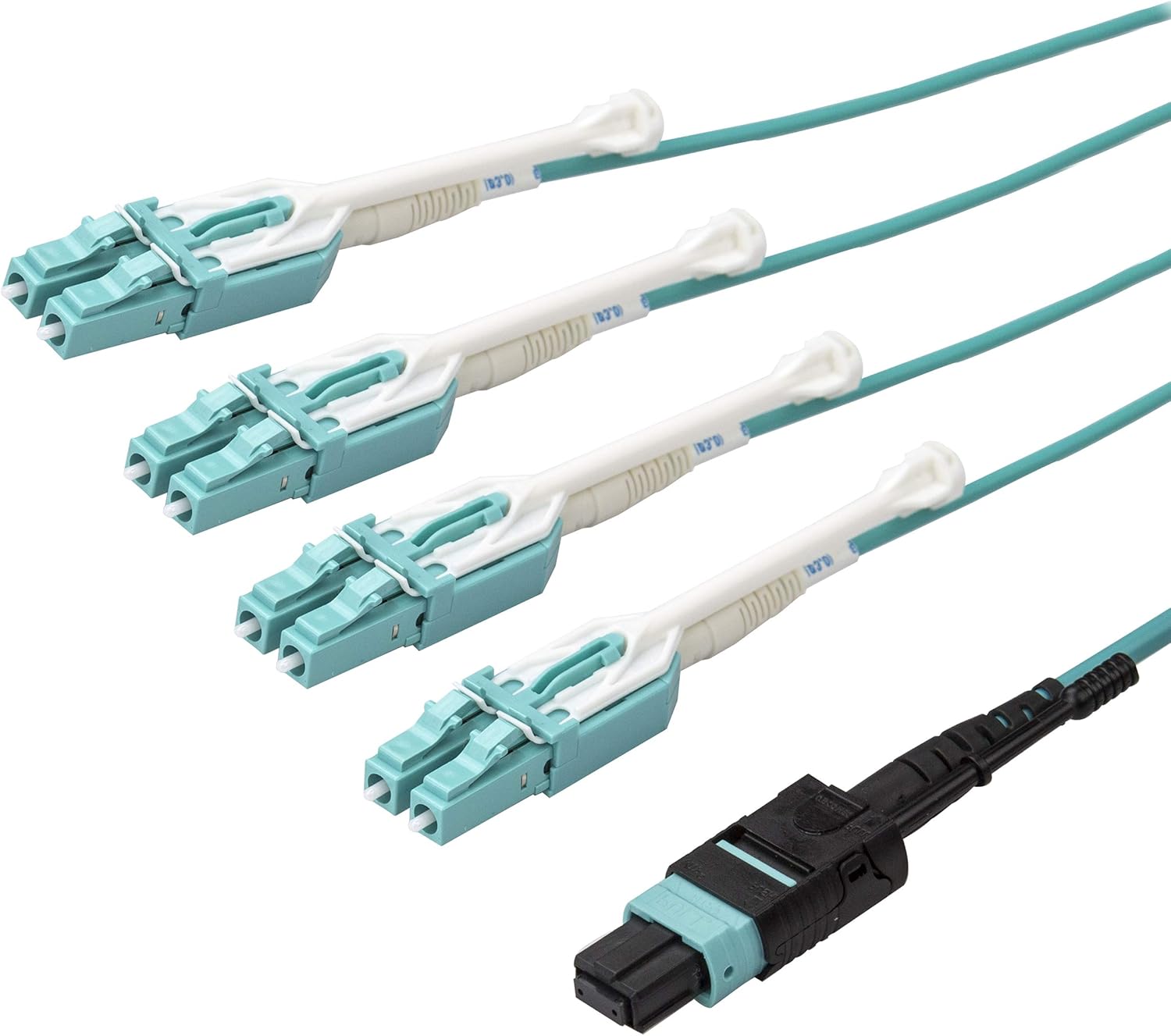

StarTech 2m MTP to 4X LC Duplex OM3 Fiber Optic Cable Review

The StarTech 2m MTP to 4X LC Duplex OM3 Fiber Optic Cable is an exceptional choice for anyone looking to enhance their network performance. This cable features a single 40 Gbps connection that splits into four LC duplex connectors, making it ideal for high-density connections between servers, switches, and transceivers.

Constructed with a quality OM3 fiber cable, this product boasts a low-smoke and fumes emitting OFNP jacket, ensuring safety in case of combustion. The 50/125m fiber core and cladding are immune to electromagnetic interference (EMI), providing a reliable connection for your networking needs.

One of the standout features of this fiber optic cable is the MTP Push-Pull Tabs with flexible extensions, which facilitate convenient installation and removal. This design allows users to manage their connections easily, making it a practical choice for both professional and personal use.

When it comes to ratings and reliability, the StarTech OM3 cable is individually tested for signal integrity, with a test report included with each cable. It is rated for plenum and in-wall installations, ensuring that it meets the highest standards for safety and performance.

Compatibility is another strong point of this cable. The OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications, including SANs and data servers. It allows seamless connections from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers, making it versatile for various setups.

In terms of specifications, the cable measures 2m (6.6ft) in length and comes in an attractive aqua color, typical for OM3 cables. It operates at 850nm or 1300nm VCSEL with a modal bandwidth of 2000MHz km at 850nm. The cable's outer diameter is 3.0mm for the MTP connector and 2.0mm for the LC connector, ensuring a compact design without compromising performance.

With an insertion loss below 0.5dB for the MTP connector and 0.2dB for the LC connector, this fiber optic cable guarantees minimal signal degradation, making it a reliable choice for your networking needs. Overall, the StarTech 2m MTP to 4X LC Duplex Fiber Optic Cable is a top-tier product that combines quality construction, high performance, and excellent compatibility for any high-density networking environment.
