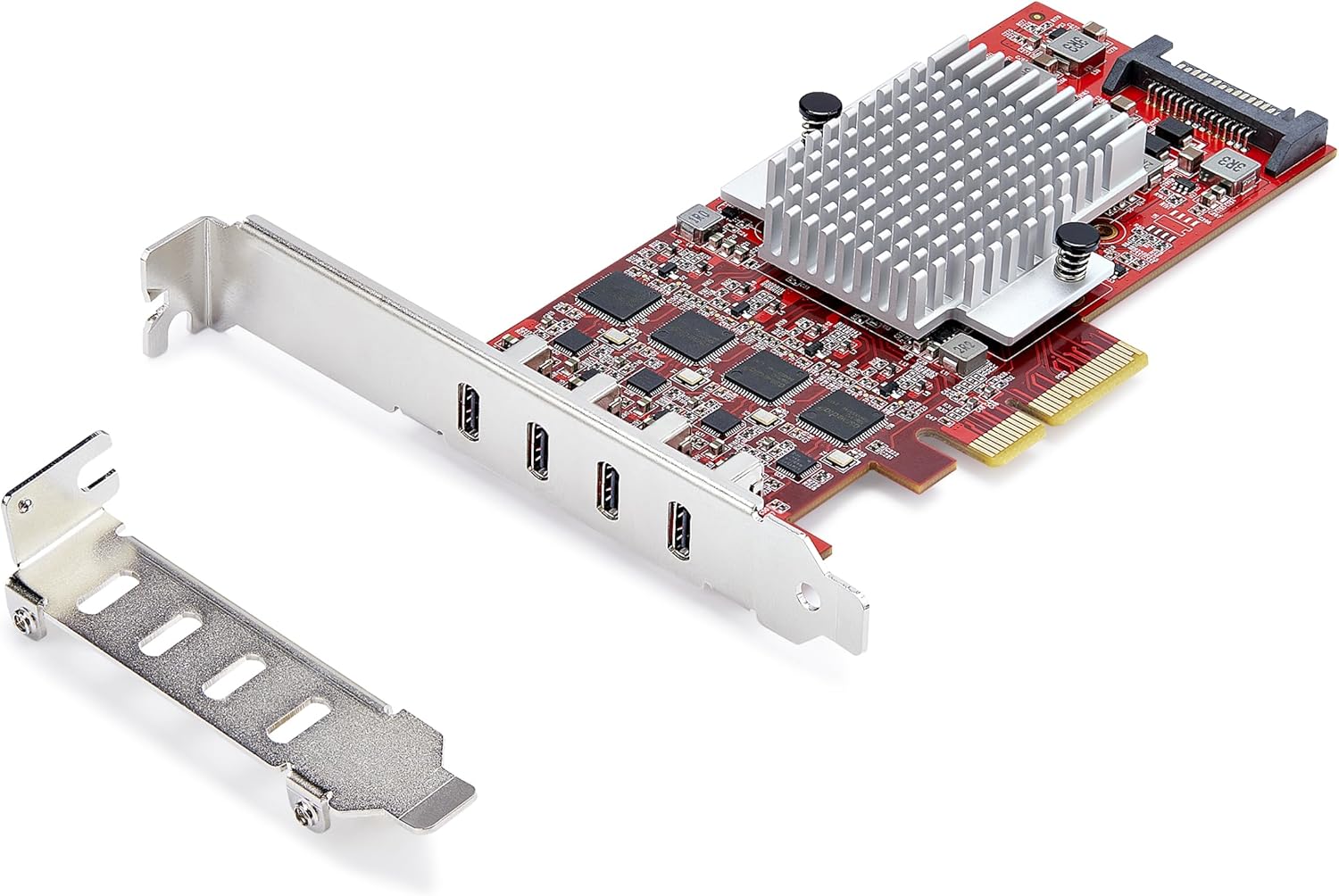

StarTech 4-Port USB-C 10Gbps PCIe Card - High-Speed Expansion

In this review of the StarTech 4-Port USB-C 10Gbps PCIe Card the bottom line is straightforward: this card is for desktop and server users who need sustained, high-speed USB-C connectivity and reliable per-port performance. It delivers four external USB-C ports with independent controllers capable of up to 10Gbps per port, plus up to 5V 3A (15W) per port for charging. For professionals moving large media files, attaching high-speed external storage, or using USB 10GbE adapters, the card provides the bandwidth and power budget those workflows require.

Key Features

• Four independent controllers: Each port uses its own USB controller to maintain up to 10Gbps of bandwidth for simultaneous high-throughput devices.
• PCI Express 3.0 interface: Uses a PCIe 3.0 x4 (or larger) slot to deliver consistent, low-latency connectivity on modern motherboards.
• Per-port power delivery: Supplies up to 5V 3A (15W) per USB-C port, letting users charge and sync phones, tablets, and accessories while transferring data.
• Auxiliary SATA power: Includes a SATA power connector to add extra current when the motherboard cannot supply enough power to all four ports.
• Broad OS compatibility: Plug-and-play support for Windows, Linux, and macOS makes installation and use straightforward across platforms.
• Low-profile bracket included: Ships with a standard profile bracket installed and a low-profile bracket in the box for small-form-factor systems.

Who It's For

The card is aimed at content creators, IT pros, and workstation owners who regularly move large files to and from external SSDs or who rely on multiple high-speed USB-C peripherals at once. Its independent controllers mean connected devices are less likely to contend for shared bandwidth, which is important for video editors and backup workflows.

Users with very limited PCIe lanes on compact systems or those who only need one or two USB-C ports might find this card overkill; casual users who primarily charge phones or use low-speed peripherals may prefer a simpler hub or a motherboard with built-in ports.

Pros & Cons

Pros

• Four ports with dedicated controllers deliver true 10Gbps per port performance for heavy I/O tasks.
• Includes auxiliary SATA power to ensure stable power delivery under load.
• Works across Windows, Linux, and macOS with plug-and-play convenience.
• Low-profile bracket included broadens system compatibility for compact PCs.

Cons

• Requires a PCIe 3.0 x4 (or larger) slot, so it may not fit in very small motherboards or systems with limited lanes.
• The card provides data-only USB-C ports; no alternate mode video output is supported.

Specifications

Ports	4 x external USB Type-C (data only)
Per-port speed	Up to 10Gbps
PCIe interface	PCI Express 3.0 x4 (compatible with x8, x16)
Power	Up to 5V 3A (15W) per port; auxiliary SATA power connector
Brackets	Standard profile installed; low-profile included
OS compatibility	Windows, Linux, macOS (plug-and-play)
Compliance	TAA-compliant

Our Verdict

The StarTech 4-Port USB-C 10Gbps PCIe Card is a practical, high-value upgrade for users who need multiple, reliable high-speed USB-C connections. Its independent controllers and optional SATA power make it especially suited to heavy I/O tasks like editing from external SSDs or running USB 10GbE adapters. For workstations and small servers with the required PCIe slot, it is a solid investment in sustained throughput and device power.

Frequently Asked Questions

Does this card support charging and data at the same time?
Yes, each USB-C port can supply up to 5V 3A (15W) for charging while handling data transfers.

Will it work in a PCIe x16 slot?
Yes, the card is compatible with PCIe 3.0 x4 or larger slots, including x8 and x16.

Can the ports be used for video output?
No, the ports are data-only and do not provide alternate mode video output.
