Steve Meade Designs SMD DD-1+ Distortion Detector Plus - Accurate Gain

In this review the Steve Meade Designs DD-1+ Distortion Detector Plus is evaluated as a shop tool for installers and serious DIY audio enthusiasts who need an accurate way to set amplifier gain overlap and detect clipping. The bottom line: it does one job very well - it removes guesswork when matching amplifier gain to a head unit and reliably flags distortion at low thresholds, so installers can protect gear and ensure clean sound. For anyone who values setup accuracy and repeatable results, this tool is worth considering.

Key Features

• Continuously variable gain: The unit offers fine control from 0.0dB to 15.0dB in 0.1dB steps so installers can dial precise overlap between source and amplifier outputs.
• Distortion detection trigger: A >1.0% harmonic distortion trigger reliably alerts the user to clipping so settings can be corrected before damage occurs.
• Checks without change: It verifies gain overlap without altering existing amp or head unit settings, which preserves customer adjustments during service checks.
• Wide operating range: Autoranging input handles 1.2Vrms to 200Vrms, covering very low to extremely high signal levels encountered in installs.
• Quasi-RMS voltmeter: The quasi-RMS metering can detect clipping across frequencies, making it practical for real-world music signals, not just sine tests.
• Tamper verification: Useful for confirming an installation's gain overlap hasn't been changed after handoff, giving installers an audit tool for service calls.

Who It's For

The DD-1+ suits professional car audio installers, custom shops and knowledgeable DIYers who routinely set amplifier gains and need to guarantee overlap and prevent distortion. Its precision in 0.1dB steps and a low distortion trigger make it well suited to systems where headroom and speaker protection are priorities.

It is less appropriate for casual listeners who never adjust gains or for those who only use factory settings and never perform system tuning. If you only need a basic clip light or do not plan to measure actual voltages, a simpler tool may be more cost-effective.

Pros & Cons

Pros

• Accurate, continuously variable gain control for precise overlap settings.
• Low distortion trigger and quasi-RMS metering catch clipping across frequencies.
• Wide autoranging input protects against under- and over-range signals during testing.
• Helps verify installations and detect tampering after handoff.

Cons

• Some users consider the price high compared with simpler clip detectors, though professionals value the functionality.
• Battery life has mixed feedback from users, so expect to keep spare power available for frequent field use.

Specifications

Product	Distortion Detector PLUS (DD-1+)
Gain Range	0.0dB to 15.0dB in 0.1dB steps
Distortion Trigger	>1.0% harmonic distortion
Operating Input Range	1.2Vrms to 200Vrms (autoranging)
Metering	Quasi-RMS voltmeter (detects clipping at any frequency)

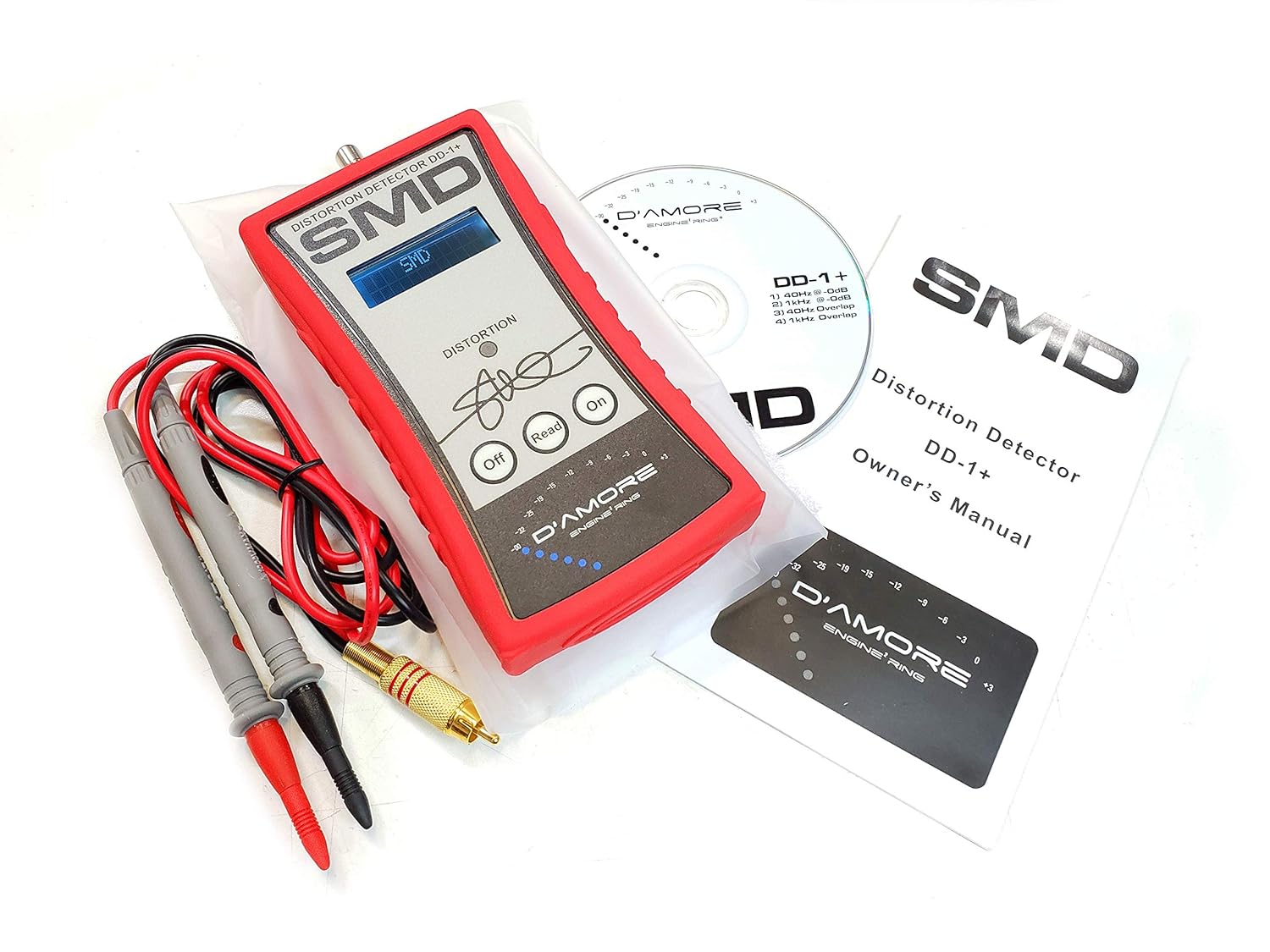

Included Items	DD-1+, calibrated test tone CD, harness

Our Verdict

The DD-1+ is a focused, professional tool that delivers precise gain overlap setting and reliable distortion detection, making it a strong choice for installers and serious DIY tuners. While its price and reported battery life may give some buyers pause, the combination of fine gain steps, a low distortion trigger and autoranging input make it a valuable investment for anyone who needs repeatable, defendable system tuning.

Frequently Asked Questions

Can the DD-1+ detect clipping on music material?
The unit uses a quasi-RMS voltmeter and is designed to detect clipping at any frequency, so it works with real music as well as test tones.

Does using the DD-1+ change amplifier settings?
No, the detector checks gain overlap without altering existing amplifier or head unit settings, preserving the current configuration.

What input levels will the DD-1+ handle?
It is autoranging and guaranteed to operate from 1.2Vrms up to 200Vrms, covering a wide range of signal levels encountered in installations.
