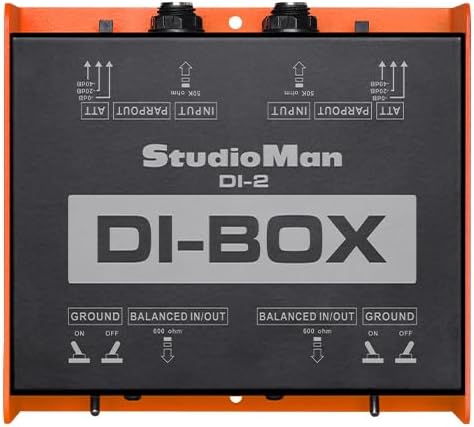

StudioMan DI-2 Dual Channel Passive DI Box - Balanced XLR/TRS

In this review the StudioMan DI-2 proves itself as a compact, no-nonsense dual passive DI for musicians and engineers who need clean, isolated signals on stage or in the studio. Its biggest selling point is straightforward: two independent, high-impedance inputs with balanced XLR outputs and per-channel ground switching that remove hum and preserve tone when routing instruments to mixers or interfaces. The DI-2 is aimed at players who want plug-and-play reliability without drivers or extra gear while keeping a small footprint on pedalboards and in racks.

Key Features

• Dual isolated channels: Lets a guitar/bass and a keyboard or synth be connected simultaneously without crosstalk, simplifying multi-instrument setups.
• 50K input impedance: Preserves high-Z instrument tone and prevents signal loading for truer guitar and bass dynamics.
• Balanced XLR/TRS I/O: Provides interference-free transmission to mixers and PA systems for cleaner stage and studio signals.
• Independent ground switches and -30dB pad: Ground lift switches tackle hum from loops while the ATT pad prevents clipping from hot outputs.
• Compact, driver-free design: The small 6.2 x 3.9 x 2.5 in chassis fits pedalboards and connects directly to consoles and audio interfaces without software.
• Pro-grade specs: Wide 20Hz-20kHz response, ultra-low distortion and high SNR preserve detail for tracking and live use.

Who It's For

The DI-2 is best for gigging instrumentalists, front-of-house engineers, and home studio owners who need a reliable passive DI with true isolation and a small footprint. Its simple controls and balanced outputs make it suitable for patching directly into mixers, audio interfaces, or PA systems during live shows, multi-track recording sessions, or streaming setups.

Those who should look elsewhere include users requiring active DI functions such as battery or phantom-powered preamps, onboard EQ or amp modeling, or ultra-high gain instrument preamps; the DI-2 is passive and optimized for clean, transparent signal conversion rather than tone coloring or boosting.

Pros & Cons

Pros

• Dual channels with >85dB isolation keep two instruments separated for clean multi-track recording.
• High 50K input impedance maintains instrument tone and dynamics for guitars and basses.
• Per-channel ground lifts and ATT pad provide practical hum control and protection from hot signals.

Cons

• Passive design means no onboard gain or active tone shaping for low-output instruments needing boost.

Specifications

Channels	Dual independent passive
Input impedance	50K ohm
Frequency response	20Hz to 20kHz (1dB)
Distortion / SNR	THD+N <0.03%, 115dB SNR
Isolation	>85dB channel isolation
Outputs	Balanced XLR, 600 ohm standard output
Dimensions / Weight	6.2 x 3.9 x 2.5 in, 1.32 lbs

Our Verdict

The StudioMan DI-2 is a practical, well-specified passive DI that delivers clear, isolated signals for live and studio work without fuss. Musicians and engineers who need faithful tone preservation, per-channel ground control and a compact chassis will find excellent value here; those needing active preamp features should consider an active model instead.

Frequently Asked Questions

Can the DI-2 handle both guitar and keyboard at the same time?
Yes; its dual isolated channels were designed to accept two instruments simultaneously while maintaining separation and balanced outputs.

Does the unit require power or drivers?
No; the DI-2 is passive and driver-free, connecting directly to mixers and interfaces without power or software.

Will the ground switches remove hum from my rig?
Independent ground lifts are included per channel to address ground loop hum; they are an effective first step for most live and studio grounding issues.
