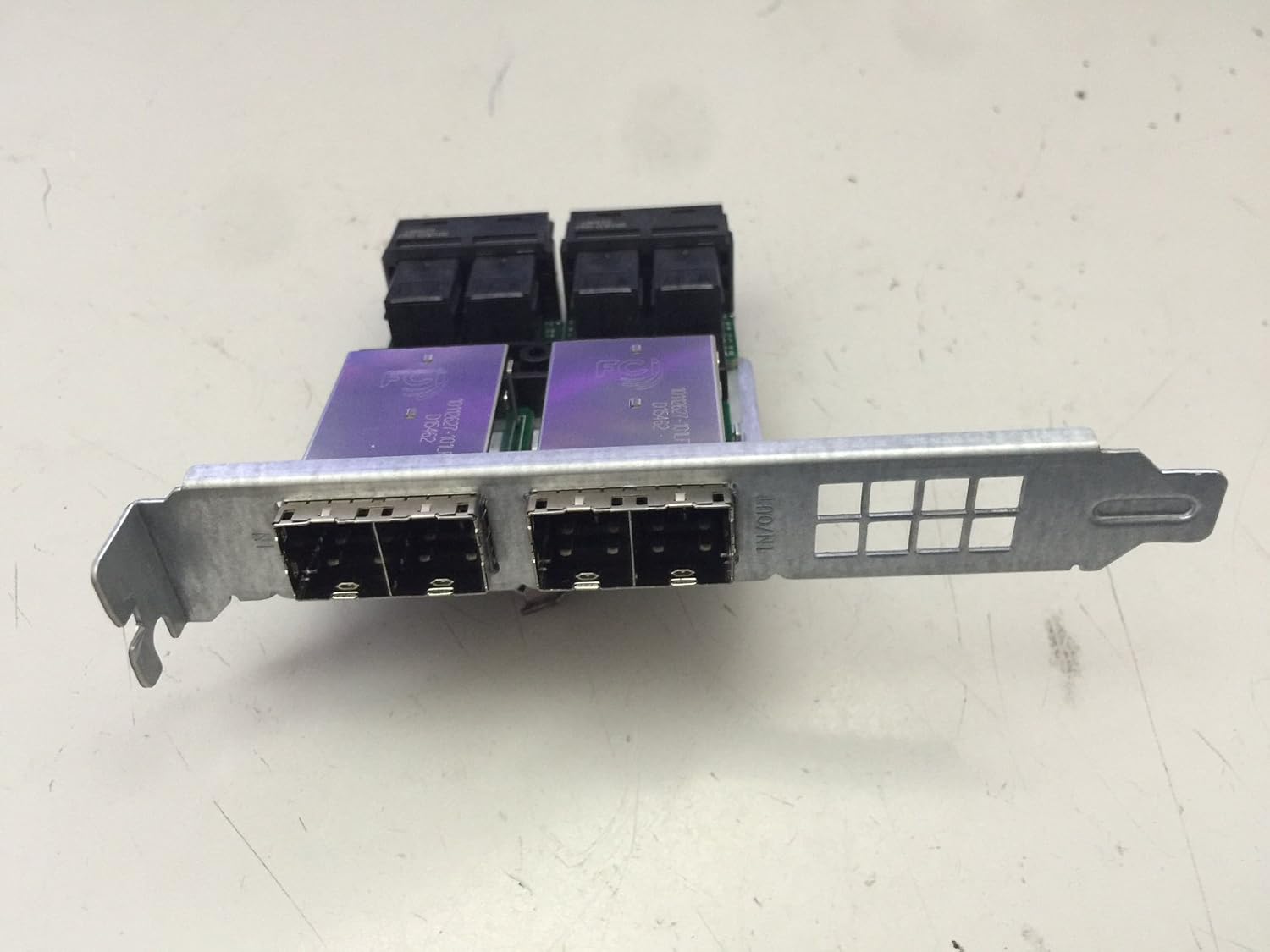

Supermicro 16-port Mini-SAS HD Internal to External Cable Adapter

In this review the Supermicro 16-port Mini-SAS HD internal to external cable adapter is evaluated for technicians and system builders who need a compact, rack-friendly method to bridge internal Mini-SAS HD ports to external connections. The bottom line: this is a simple, purpose-built add-on module that solves port density and accessibility issues without drama. It is most useful when paired with compatible backplanes or controllers where a full height bracket is not required; the product review highlights ease of integration, sturdy bracket design, and compliance credentials that matter in data center environments.

Key Features

• 16-port Mini-SAS HD: Provides dense connectivity so a single adapter exposes multiple Mini-SAS HD ports for external cable routing, reducing cable clutter in tight racks.
• Internal to External Compatibility: Converts internal host or backplane Mini-SAS HD signals to external connections, making drive enclosures and controllers easier to service.
• Full height bracket: The included full height bracket secures the adapter in standard chassis bays, improving mechanical stability for frequent cable changes.
• Device type Add On Module: Designed as a modular accessory, it integrates without modifying existing hardware and can be swapped by IT staff during upgrades.
• Compliance standards: RoHS and REACH compliance ensures the adapter meets common environmental and safety expectations for enterprise deployments.
• Lightweight design: At about 1 lb, the adapter adds minimal weight to chassis and is straightforward to handle during installation.

Who It's For

The adapter is best for system integrators, data center technicians, and small server room operators who need to expose multiple Mini-SAS HD ports externally for hot-swap enclosures, cable management, or diagnostic access. It suits environments where a compact, rack-mounted adapter with a reliable bracket is preferred.

It is less suitable for users who do not use Mini-SAS HD connections or who need active components such as signal repeaters or long-range extenders; this product is a passive, mechanical and electrical interface rather than an active signal booster.

Pros & Cons

Pros

• High port density with 16 Mini-SAS HD ports allows consolidation of multiple internal lines to external cabling in one location.
• Full height bracket provides a secure mounting option for standard server chassis and helps maintain tidy cable routing.
• RoHS and REACH compliance reduces environmental concerns when used in enterprise deployments.
• Lightweight and modular form factor makes it easy for technicians to install or replace during maintenance windows.

Cons

• As a passive adapter, it does not offer active signal conditioning or extended cable reach, so long cable runs may need additional hardware.
• Not applicable to systems that do not use Mini-SAS HD ports or require specialized proprietary connectors.

Specifications

Device type	Add On Module
Port quantity	16-port Mini-SAS HD
Compatibility	Internal to External cable adapter with full height bracket
Compliance standards	RoHS / REACH / PBF
Weight	1 lbs

Our Verdict

The Supermicro 16-port Mini-SAS HD internal to external cable adapter is a practical, no-nonsense accessory for anyone who needs to expose and manage many Mini-SAS HD connections from a chassis. It is good value for system builders who prioritize mechanical reliability and compliance over active signal features, and it simplifies cable organization in dense server environments.

Frequently Asked Questions

Is this adapter active or passive?
This is a passive add-on module that provides a mechanical and electrical interface rather than active signal conditioning.

Will it fit a standard rack server?
Yes, the included full height bracket is intended to mount in standard chassis bays for stable installation.

Does it support all Mini-SAS HD controllers?
It is compatible with systems that use Mini-SAS HD internal ports and need an internal-to-external adapter; verify physical connector compatibility with your controller.
