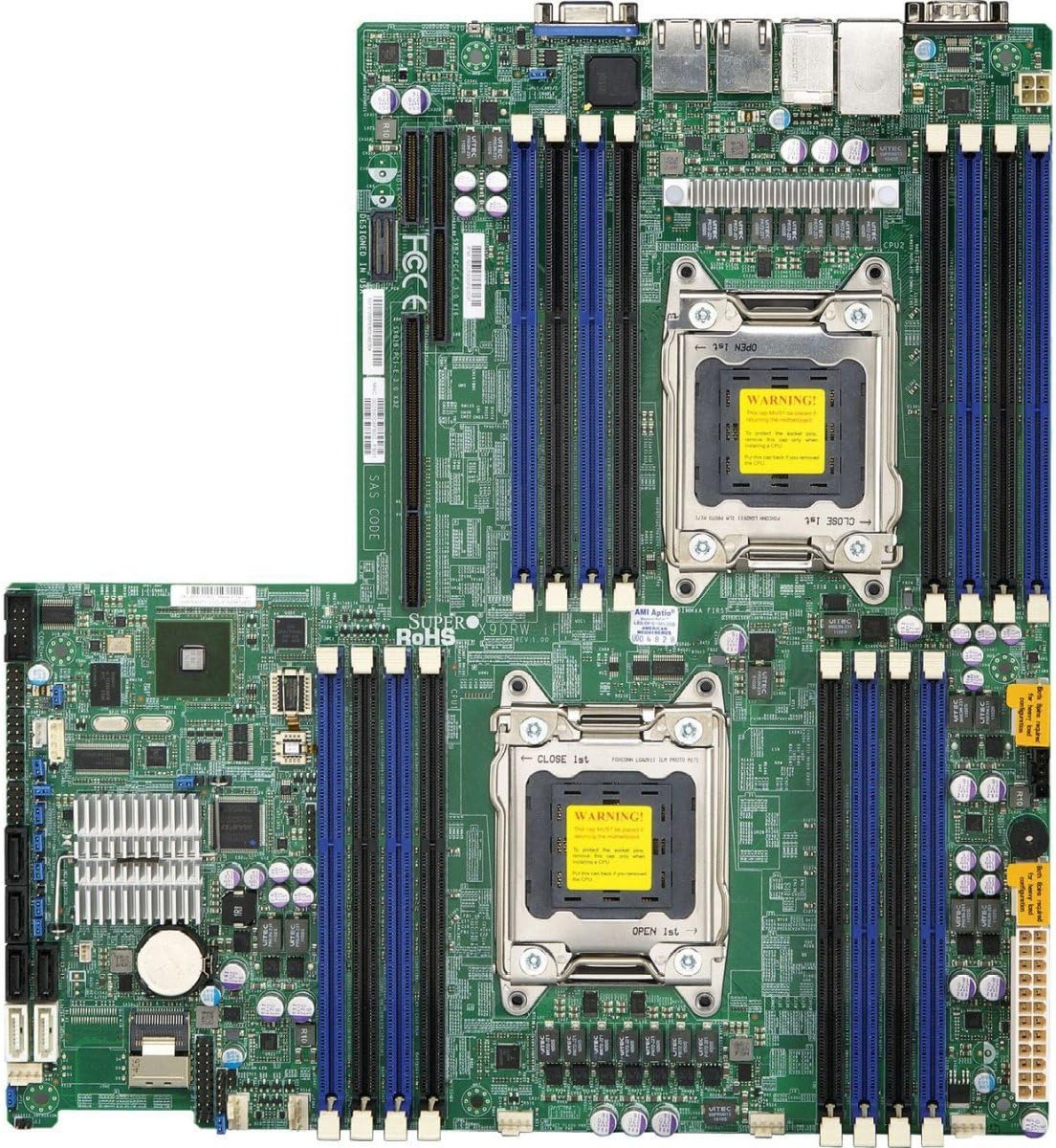

Supermicro X9DRW-IF-O Dual LGA2011 Server Motherboard - Dense Memory

In this review the Supermicro X9DRW-IF-O is presented as a workstation and rack server motherboard focused on maximum memory capacity and dual-CPU compute density. The biggest reason to consider this board is its support for two LGA2011 Intel Xeon E5-2600 processors combined with up to 16 DDR3 DIMM slots per board, which makes it a strong fit for memory-heavy virtualization or database tasks. The review covers real-world suitability, key I/O and expansion tradeoffs, and why an IT builder might pick this board for a legacy DDR3 infrastructure.

Key Features

• Dual LGA2011 CPUs: Provides high parallel compute with support for Intel Xeon E5-2600 series processors, enabling multi-socket server workloads.
• Large memory capacity: Sixteen 240-pin DDR3 DIMM slots accept ECC registered modules to reach up to 512GB, useful for memory-intensive virtualization and caching.
• Balanced storage options: Two SATA3 ports plus eight SATA2 ports offer a mix of high-speed and legacy SATA connections for RAID arrays and bulk storage.
• Onboard management and video: Integrated G200 graphics controller via the BMC simplifies headless setup and monitoring through the dedicated IPMI LAN port.
• Expansion and networking: A PCI-Express 3.0 x32 slot and dual 1GbE LAN ports deliver expansion flexibility and reliable network connectivity for clustered deployments.

Who It's For

The X9DRW-IF-O is aimed at system builders, IT administrators and small datacenter operators who need a mature, DDR3-based dual-socket platform with high DIMM capacity for virtualization, in-memory databases, or compute-dense services. It is particularly useful when an organization must reuse DDR3 ECC/registered memory or migrate Xeon E5-2600 systems incrementally.

Those seeking the latest CPU microarchitecture, NVMe native support, or DDR4/DDR5 performance should look elsewhere; the board is a legacy-generation design best suited to environments that prioritize proven Intel C602 chipset compatibility and broad ECC DIMM capacity over cutting-edge throughput.

Pros & Cons

Pros

• Supports dual Intel Xeon E5-2600 processors for strong multi-socket compute density.
• Up to 16 DDR3 DIMM slots enabling up to 512GB ECC/registered memory for memory-intensive applications.
• Onboard IPMI with dedicated LAN and integrated G200 video simplifies remote management and monitoring.
• Mixed SATA3 and SATA2 ports plus RAID 0,1,5,10 support for flexible storage configurations.

Cons

• DDR3 platform limits single-thread and memory bandwidth versus modern DDR4/DDR5 systems.
• Only one full PCIe 3.0 x32 slot may constrain heavy expansion or modern accelerator installations.

Specifications

CPU Sockets	Dual LGA2011, Intel Xeon E5-2600 series
Chipset	Intel C602
Memory	16x 240-pin DDR3 DIMM slots, up to 512GB ECC/REG or 128GB ECC/Unbuffered
Expansion	1x PCI-Express 3.0 x32 slot
Storage	2x SATA3 ports, 8x SATA2 ports; RAID 0,1,5,10 supported
Networking	2x RJ45 1GbE LAN ports plus 1x RJ45 dedicated IPMI LAN port
Ports & Management	6x USB 2.0 (4 rear, 2 header), 1x VGA, 2x serial (1 rear, 1 header), BMC with G200 graphics

Our Verdict

The Supermicro X9DRW-IF-O is a practical choice for IT teams needing a stable, high-memory DDR3 dual-socket board with robust remote management. It delivers solid value where ECC/registered DIMM capacity and Xeon E5 compatibility are priorities, though builders wanting modern I/O or highest per-core performance should consider newer platforms. For legacy server refreshes and dense VM hosts it remains a sensible, cost-effective platform.

Frequently Asked Questions

Does this board support remote management?
Yes. It includes a dedicated IPMI RJ45 port and a BMC with an integrated G200 graphics controller for headless management.

How much memory can be installed?
The board supports up to 16 DDR3 DIMMs and can reach up to 512GB using ECC registered modules or up to 128GB with ECC unbuffered modules.

What RAID options are available?
Onboard storage supports RAID 0, 1, 5 and 10 across the SATA3 and SATA2 ports for redundancy and performance configurations.
