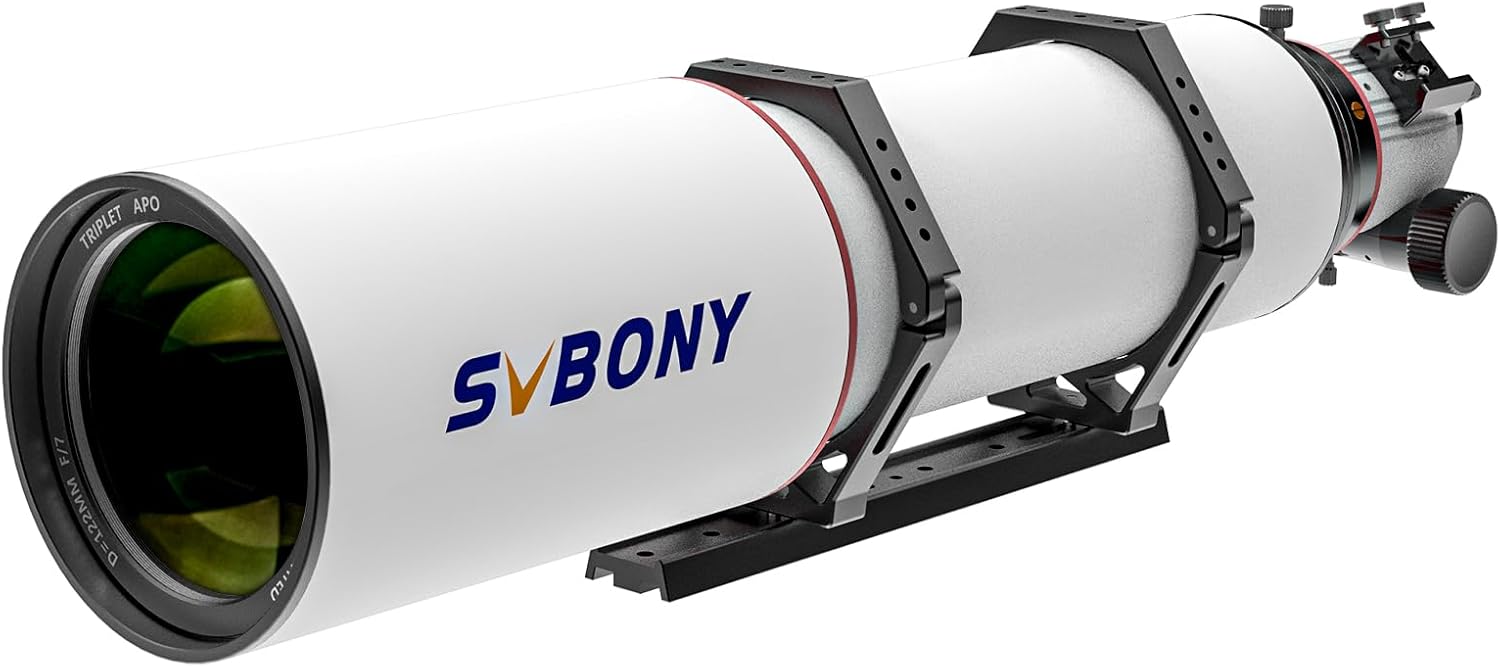

SVBONY SV550 122mm Triplet APO Refractor - Travel Astrophotography OTA

In this review the SVBONY SV550 122mm Triplet APO refractor is assessed as a compact, travel-friendly optical tube that aims to bridge the gap between grab-and-go observing and serious deep sky imaging. The single biggest reason to buy is its 122mm aperture combined with a triplet FPL-51 design, which delivers noticeably clearer, higher-contrast views and reduced color fringing compared with typical achromats; that makes the SV550 a practical choice for astrophotographers who need a portable, high-quality apochromatic refractor.

Key Features

• 122mm aperture: Gathers significantly more light than small refractors, improving contrast and enabling detection of fainter deep sky objects for imaging and visual use.
• FPL-51 triplet lens: A three-element apochromatic design with one ED element reduces chromatic aberration and sharpens star images across the field.
• f/7 focal ratio, 854mm focal length: A versatile focal length that balances wide-field framing for nebulae with enough reach for planetary and lunar work.
• 2.5in dual-speed focuser: A 1:10 gear ratio with coaxial knobs provides both quick coarse focusing and precise micro adjustment for critical imaging focus.
• 300mm dovetail: A long dovetail bar helps keep the OTA balanced on a variety of mounts and simplifies counterweight adjustments during setup.
• 6.44kg OTA weight: Lightweight for a 122mm apochromat, making the SV550 easier to carry in a case for field sessions and travel.

Who It's For

The SV550 is best for amateur astrophotographers and experienced visual observers who want an apochromatic refractor that is portable but still capable of deep sky imaging; its 122mm aperture and triplet design make it well suited for capturing nebulae and star fields with low chromatic error. Mount owners who need a stable, balanced OTA will appreciate the long dovetail and modest 6.44kg weight that allow pairing with common EQ mounts for long exposures.

It is less well suited for someone on an extremely tight budget who only wants casual planetary views from a tabletop mount, or for users who require a full camera-ready package with finder, rings, and adapters included; the SV550 is an OTA aimed at users who already own a mount and imaging accessories.

Pros & Cons

Pros

• Excellent optical quality from the FPL-51 triplet produces crisp stars with minimal color fringing, praised by users for imaging results.
• Dual-speed 2.5in focuser gives silky control and fine focus adjustment needed for critical astrophotography.
• Relatively light and compact for a 122mm APO, making field use and travel practical.
• Long dovetail and robust build quality assist with balance and mechanical stability on a mount.

Cons

• Sold as an OTA, so buyers should budget separately for a good mount, diagonal, and imaging adapters if required.
• At f/7 it is not as fast as some focal reducers or short focal ratio scopes for very wide-field imaging.

Specifications

Aperture	122mm
Focal ratio	f/7
Focal length	854mm
Optical design	FPL-51 triplet apochromat with 1 ED element
Focuser	2.5in dual-speed, 1:10 gear ratio
OTA weight	6.44kg (14.18lb)
Dovetail length	300mm

Our Verdict

The SVBONY SV550 122mm Triplet APO is a strong value for users who want a portable, true apochromatic refractor for deep sky imaging and high-resolution observing. Its combination of a 122mm aperture, FPL-51 triplet optics, and a smooth dual-speed focuser gives excellent image quality with reduced chromatic aberration, making it a sensible buy for astrophotographers who already have a sturdy mount and accessories.

Frequently Asked Questions

Does this scope include a mount?
No, the SV550 is sold as an OTA and requires a compatible mount and accessories for imaging or visual use.

Is the focuser suitable for heavy camera loads?
The 2.5in dual-speed focuser is designed to handle imaging equipment and offers fine control, but confirm your payload and consider a rotator or support rings for heavier setups.

Is chromatic aberration noticeable?
Users report minimal color fringing thanks to the triplet FPL-51 design and ED element, producing tight star images suitable for astrophotography.
