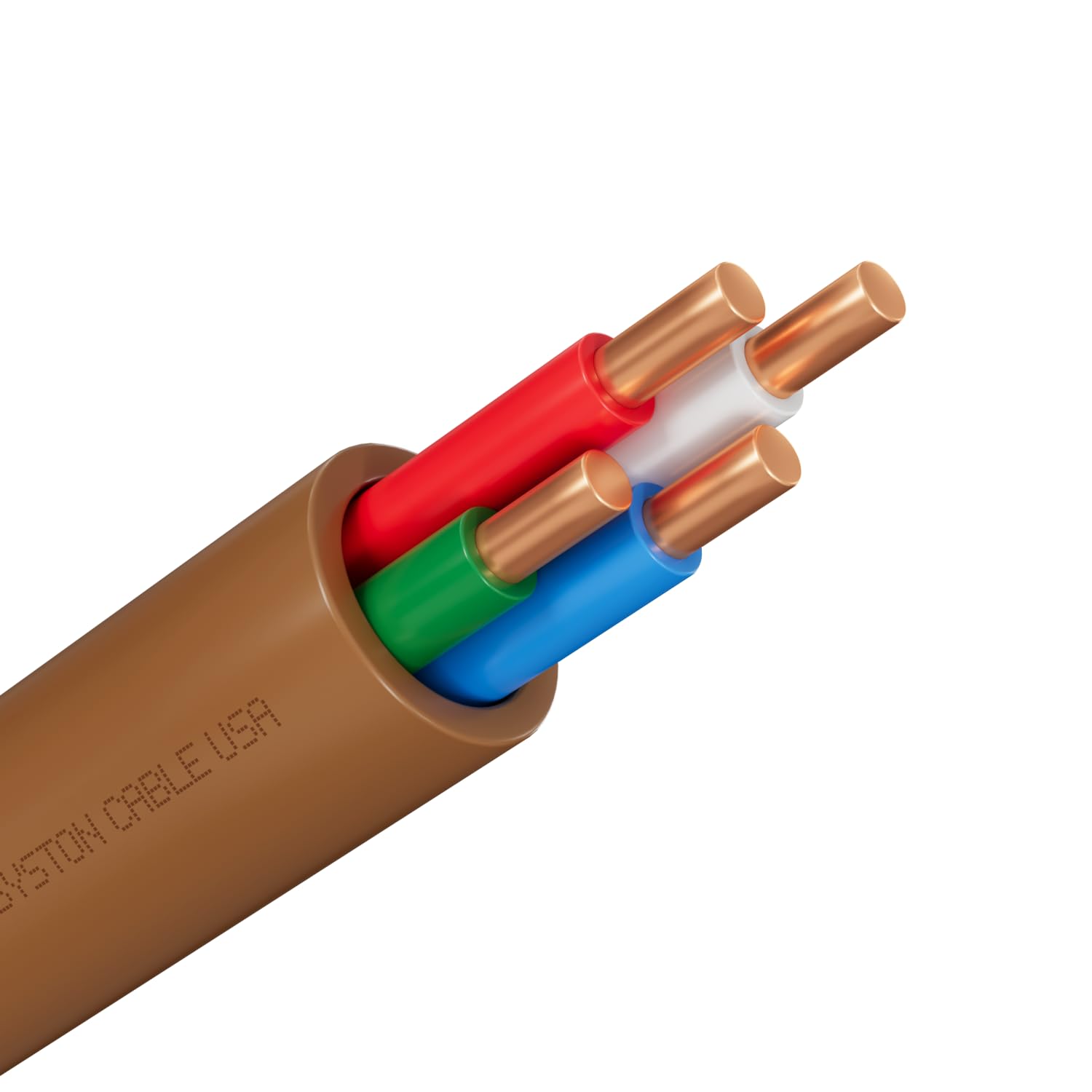

Syston 18/4 Thermostat Doorbell HVAC Control Cable - Solid Copper

In this review the Syston 18/4 thermostat and doorbell cable is evaluated for homeowners, electricians, and installers who need a dependable, low-voltage run for thermostats, doorbells, and control systems. The single biggest reason to consider it is the use of 100% solid bare copper conductors, which deliver reliable conductivity and less voltage drop than tinned or stranded alternatives; that makes this cable especially useful where long runs or sensitive control signals matter.

Key Features

• Solid Copper Conductors: Solid bare copper provides consistent conductivity and reliability for thermostat and doorbell circuits over time.
• 300V CL3 Power-Limited Rating: Rated as a CL3 power-limited circuit cable, it is suitable for control circuits up to 300 volts and handles common transformer-driven doorbell setups.
• Riser-Rated Jacket: The CL3R/FT4/CMR riser-rated flame-retardant jacket offers safer vertical runs in multi-story installations.
• Sunlight Resistant: The UV-resistant jacket meets UL 1581 sunlight resistance, allowing for use in exposed outdoor runs where sunlight is a concern.
• Installation-Friendly Design: A round, slick jacket and rip cord make the cable easy to pull through studs and rough corners and speed up jacket removal.
• Temperature and Environmental Ratings: Suitable for standard installation temperatures and usable in damp or dry locations for versatile HVAC and control uses.

Who It's For

This cable is aimed at HVAC technicians wiring thermostats, electricians installing doorbells or intercoms, and DIYers who want a reliable, solid-copper low-voltage conductor for control systems. Its riser rating and sunlight resistance also make it a good choice for multi-story residential runs and some outdoor-fed control lines where a UV-rated jacket is needed.

It is not the best fit for applications that require stranded conductors for high-flex flexing runs or where a shielded cable is needed to prevent interference; in those cases users should consider specialty communication or shielded control cable instead.

Pros & Cons

Pros

• Solid pure copper conductors deliver excellent signal integrity and low resistance over typical thermostat and doorbell distances.
• Riser-rated, flame-retardant jacket adds a safety margin for vertical building runs and fire codes.
• Sunlight resistance and RoHS compliance make the cable suitable for exposed outdoor routing and environmentally conscious installs.
• Easy-to-pull round jacket and rip cord speed installation through walls and around corners.

Cons

• Insulation thickness receives mixed feedback, so installers used to heavier jacketed cable may find it thinner than some alternatives.

Specifications

Conductor	18 AWG solid bare copper
Pair count	18/4 (four conductors)
Voltage rating	300V (Class-3, CL3)
Jacket rating	CL3R / FT4 / CMR riser-rated, flame-retardant
Temperature range	Installation +32 to +140 F; Storage/Operation -4 to +167 F
Outdoor suitability	Sunlight resistant, UV rated per UL 1581
Compliance	UL/ETL listed, RoHS compliant

Our Verdict

The Syston 18/4 thermostat and doorbell cable is a practical, value-focused choice for residential HVAC and control wiring where solid copper conductors and riser-rated flame performance matter. It offers reliable electrical properties, easy installation features, and sunlight resistance for exposed runs, making it a smart pick for technicians and homeowners needing a trustworthy low-voltage control cable without specialty shielding or extra-thick insulation.

Frequently Asked Questions

Can this cable be used outdoors?
Yes, the jacket is sunlight resistant and UV rated for exposed outdoor runs, though it is intended for low-voltage control applications rather than direct burial.

Is this cable suitable for thermostat and doorbell transformers?
Yes, the 18 AWG solid copper conductors and 300V CL3 rating make it appropriate for thermostat controls and doorbell transformer circuits.

Can it be run between floors in a building?
Yes, the CL3R/CMR riser-rated, flame-retardant jacket is suitable for vertical riser runs between floors in many installations.
