Syston 18/5 Thermostat Doorbell HVAC Control Cable - Reliable

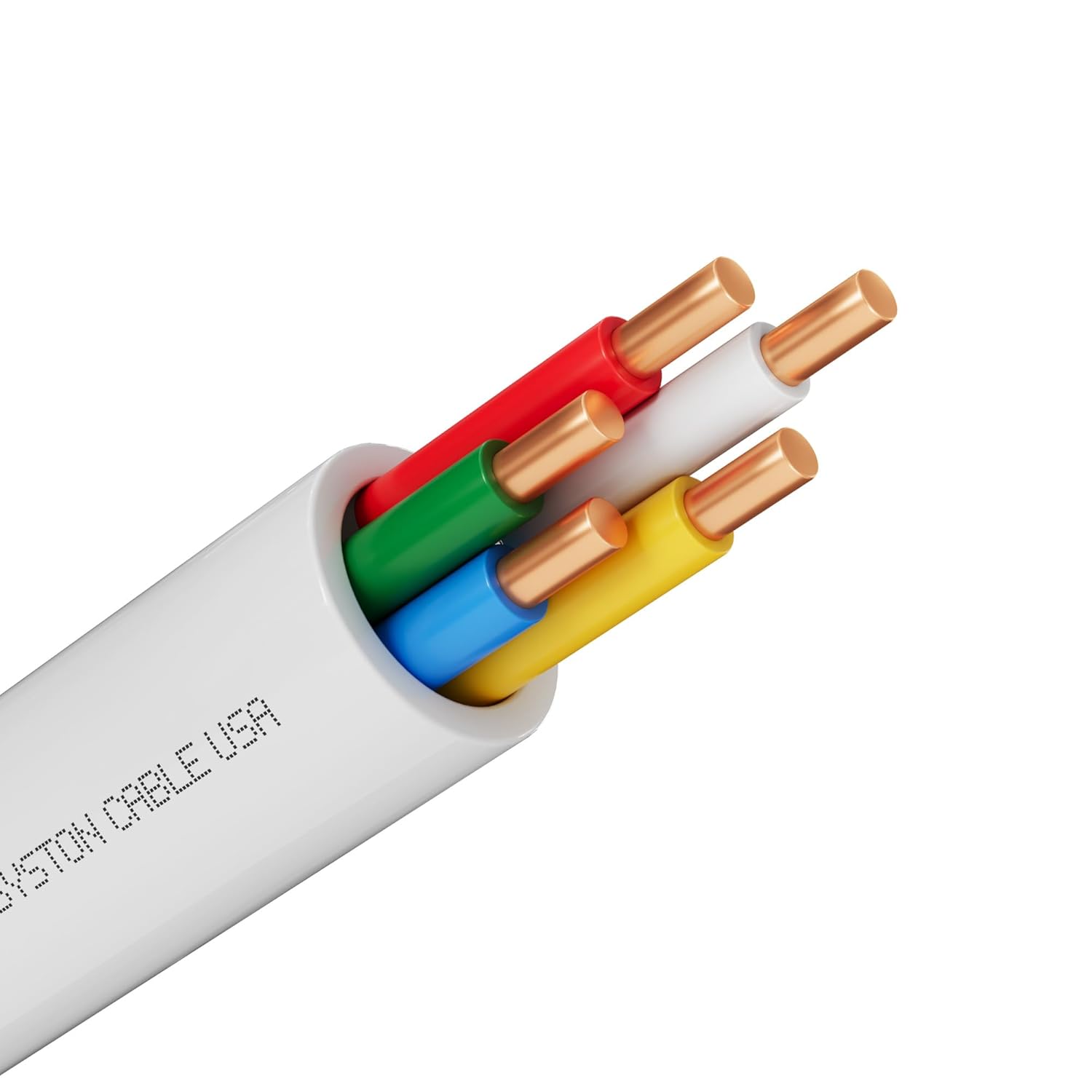

In this review the Syston 18/5 thermostat cable is evaluated for electricians, HVAC technicians and DIY homeowners who need dependable low-voltage wiring. The bottom line: it is a straightforward, well-made 18 AWG 5-conductor thermostat and control cable whose single biggest reason to buy is the solid pure copper conductors and CL3 300V rating, which together deliver consistent conductivity and a high safety margin for thermostats, doorbells, security panels and other low-voltage systems.

Key Features

• 18 AWG 5 conductors: Five solid conductors provide separate runs for multi-zone thermostats, doorbells and intercom connections without splicing multiple cables.
• 100% solid copper: Pure copper conductors give better conductivity and long-term reliability compared with tinned or stranded alternatives.
• 300V CL3 rating: The CL3/100VA classification and 300V insulation provide a higher safety margin for low-voltage control circuits and signal systems.
• Riser-rated jacket: CMR/FT4 riser rating makes the cable acceptable for vertical runs in building risers and many indoor installations.
• Sunlight resistant and RoHS compliant: UV resistance allows outdoor routing in sun-exposed locations while RoHS compliance limits hazardous materials.
• Installation-friendly design: A round slick jacket with smooth edges and a rip cord makes the cable easy to pull and strip during installation.

Who It's For

The Syston 18/5 cable is aimed at HVAC technicians installing thermostats, electricians wiring doorbells, alarm and intercom installers, and homeowners doing low-voltage control work who want solid copper conductors and a CL3-rated jacket. Its round jacket and rip cord make it practical for retrofit work and running through walls and conduit on residential and light commercial jobs.

Those who need extremely heavy-duty moisture- or abrasion-resistant outdoor burial cable, or very flexible stranded conductors for constant-motion applications, should look elsewhere. For fixed low-voltage control runs and signaling, however, this cable is a strong choice.

Pros & Cons

Pros

• Solid pure copper conductors deliver reliable conductivity and easy soldering or termination.
• CL3/300V and riser-rated jacket provides a robust insulation and safety margin for low-voltage circuits.
• Sunlight resistant jacket and RoHS compliance make it suitable for many indoor and outdoor runs while meeting environmental standards.
• Installation features like a slick round jacket and rip cord reduce labor time when pulling and stripping cable.

Cons

• Some users report the insulation can be delicate during handling, so care is needed when pulling through tight or rough openings.

Specifications

Conductor	18 AWG solid pure copper
Number of conductors	5
Voltage rating	300V (CL3)
Jacket rating	CMR / FT4 riser-rated
UV resistance	Sunlight resistant per UL 1581
Compliance	RoHS compliant
Design	Round jacket with rip cord for easy stripping

Our Verdict

The Syston 18/5 thermostat and control cable is a practical, value-oriented choice for HVAC installers, electricians and DIYers who need dependable low-voltage wiring. With solid copper conductors, a 300V CL3 insulation and sunlight-resistant jacket, it balances safety, conductivity and ease of installation, making it a sensible buy for thermostat, doorbell and signal system runs where flexible stranded cable is not required.

Frequently Asked Questions

Can this cable be used outdoors?
Yes, the jacket is sunlight resistant and suitable for outdoor routing, but it is not intended for direct burial without appropriate conduit or additional protection.

Is the conductor solid or stranded?
The conductors are 100% solid pure copper, which offers good conductivity and easy termination for thermostats and control devices.

What applications is it intended for?
It is designed for thermostats, HVAC controls, doorbells, alarm and intercom systems, annunciators, remote controls and other low-voltage signal applications.
